Programming and Relearning

AUTO LIGHT ILLUMINATION LEVEL SETTING

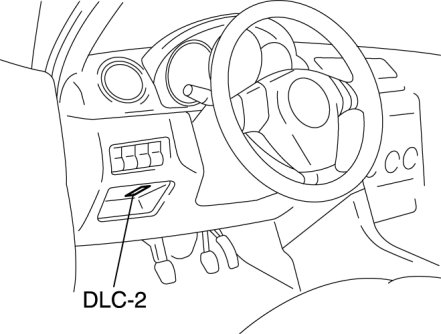

1. Connect the M-MDS to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

- When using the IDS (laptop PC)

- Select "Module programming".

- When using the PDS (Pocket PC)

- Select "Programming".
- Select "Module programming".

3. Select "Programmable Parameters".

4. Select "Exterior Lighting".

5. Select "Autolamp On Setting - (GEM)".

6. Select "Standard"other or "Low other" on the M-MDS to set the illumination level.
