Relay Box: Testing and Inspection

RELAY INSPECTION

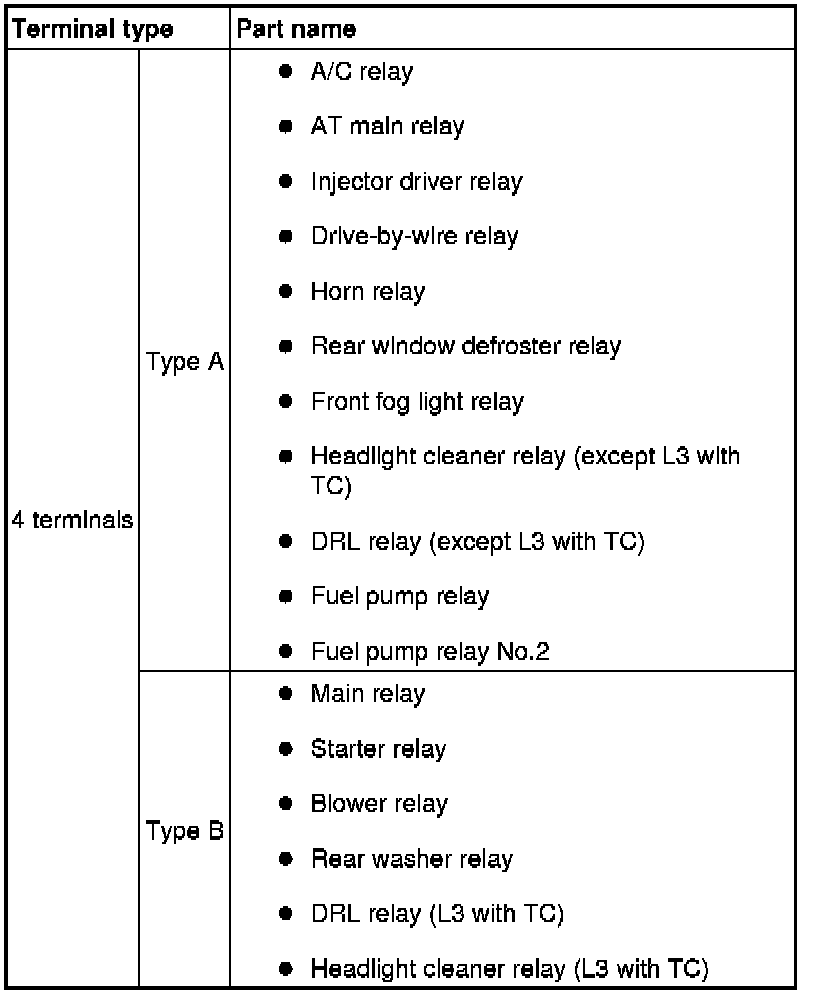

Relay type

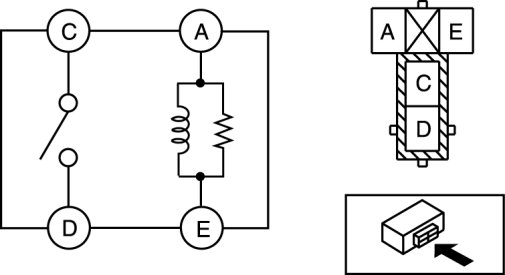

Type A

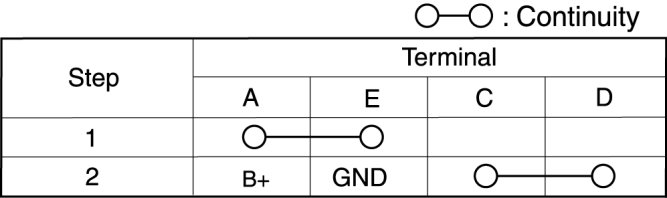

1. Verify the continuity between the relay terminals.






- If not as indicated in the table, replace the relay.

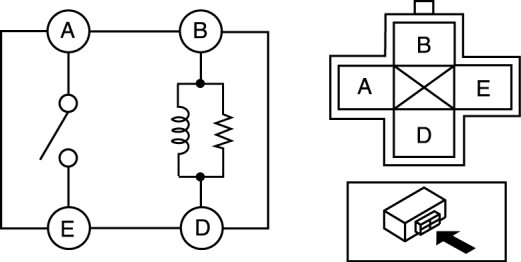

Type B

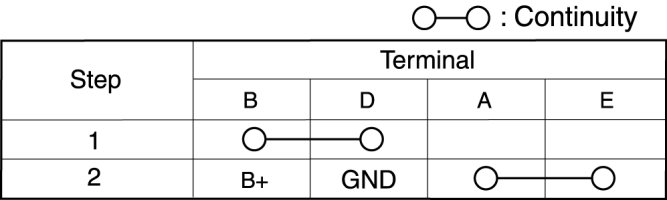

1. Verify the continuity between the relay terminals.






- If not as indicated in the table, replace the relay.
