DTC Inspection (PJB) - Control System

DTC INSPECTION (PJB) [CONTROL SYSTEM]

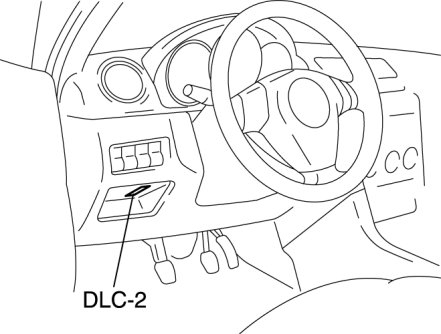

1. Connect the M-MDS to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

- When using the IDS (laptop PC)

1 Select "Self Test".
2 Select "Modules".
3 Select "GEM".

- When using the PDS (Pocket PC)

1 Select "Module Tests".
2 Select "GEM".
3 Select "Self Test".

3. Verify the DTC according to the directions on the screen.

- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.

4. After completion of repairs, clear all DTCs stored in the PJB.
