Emission Control Systems: Diagrams




EMISSION SYSTEM DIAGRAM [LF, L3]

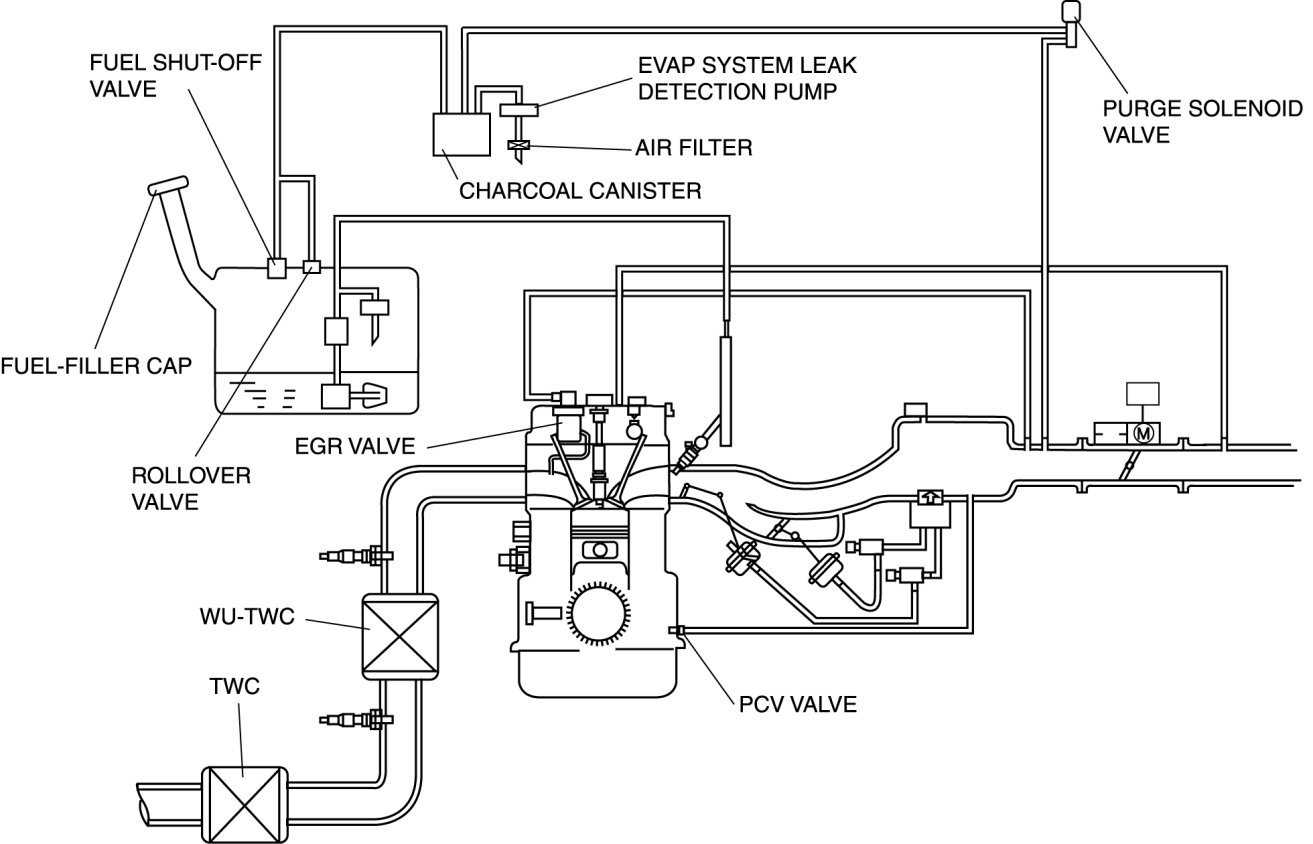

California emission regulation applicable model

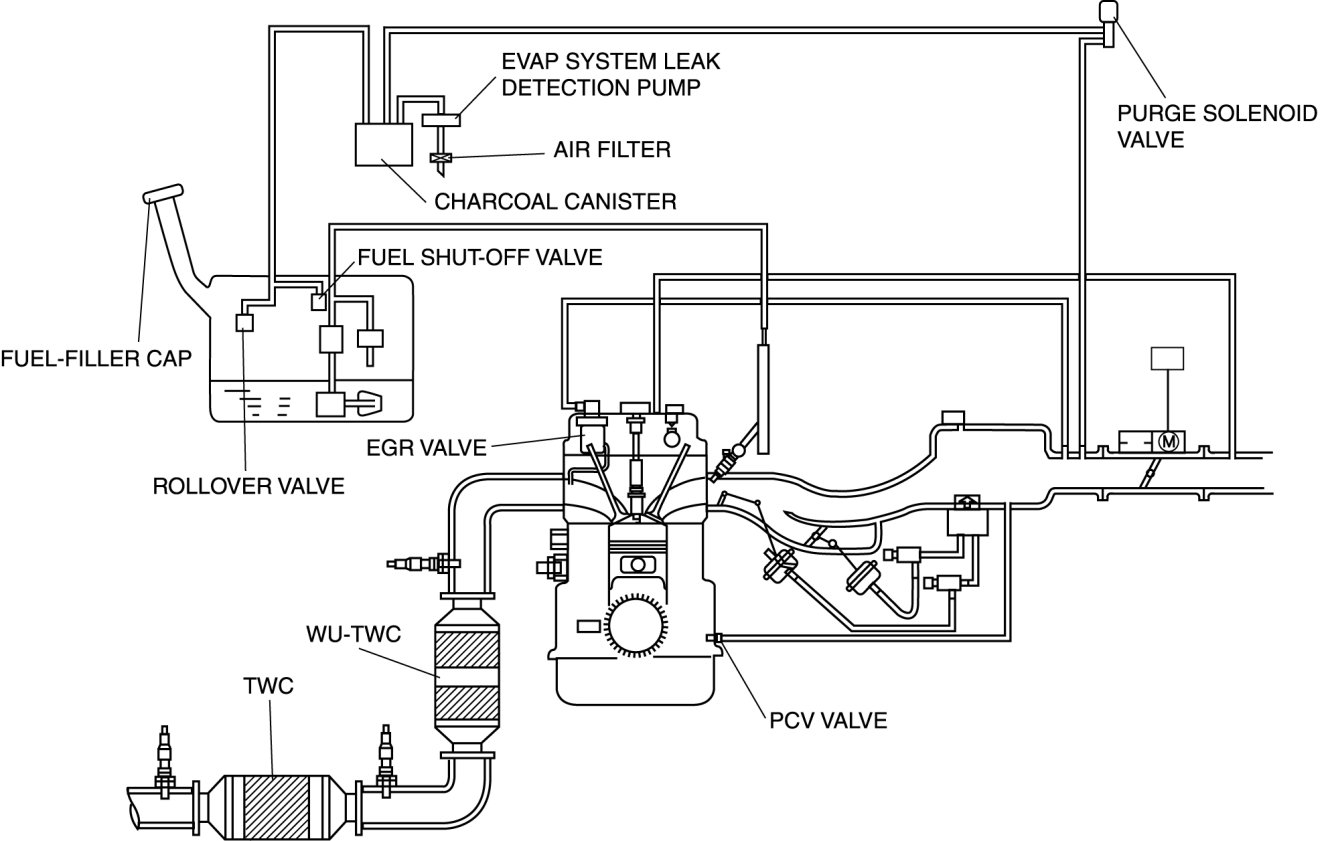

Except for California emission regulation applicable model
