Shift-Lock Inspection

SHIFT-LOCK INSPECTION

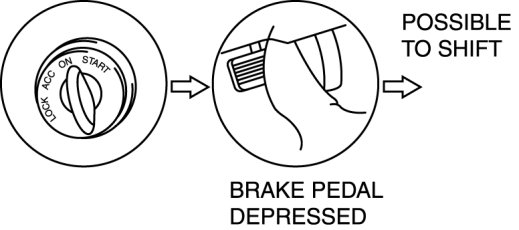

1. Turn the ignition switch to the ON position (engine off).

2. Verify that the selector lever is in the P position.

3. Without the brake pedal depressed, verify that the selector lever cannot be shifted from the P position.






4. Depress the brake pedal and verify that the selector lever can be shifted from the P position.

- If there is any malfunction, inspect the selector lever component. Selector Lever Component Inspection
