Regulator Handle Installation

REGULATOR HANDLE INSTALLATION

1. Fully raise the door glass.

2. Install the clip to the regulator handle.

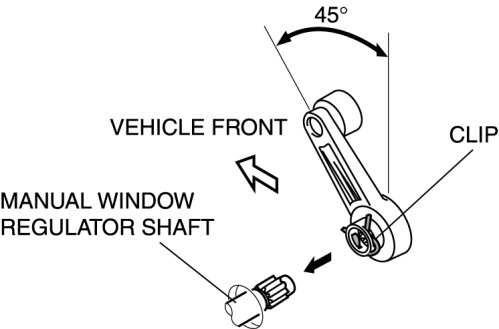

3. Install the regulator handle while tilting it as shown in the figure and press it onto the shaft.
