Keyless Entry Receiver: Service and Repair

KEYLESS RECEIVER REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the glove compartment. Service and Repair

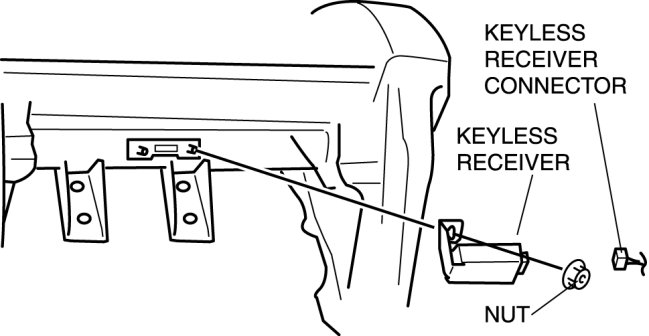

4. Disconnect the keyless receiver connector.

5. Remove the nut, then remove the keyless receiver.

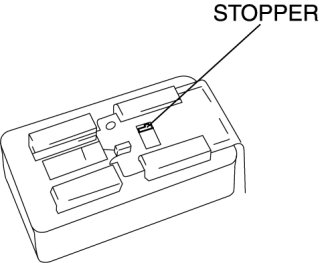

6. Push the stopper in with a small screwdriver and remove the bracket.






7. Install in the reverse order of removal.
