Mirrors: Testing and Inspection




POWER OUTER MIRROR INSPECTION

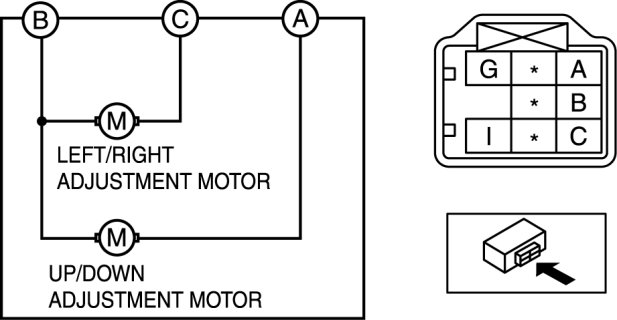

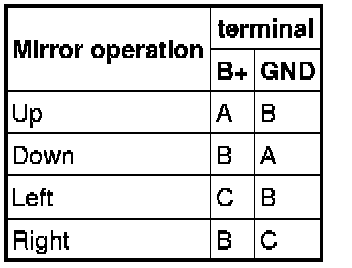

1. Apply battery positive voltage to the power outer mirror terminals and inspect the operation of the power outer mirror.






- If not as specified, replace the power outer mirror.

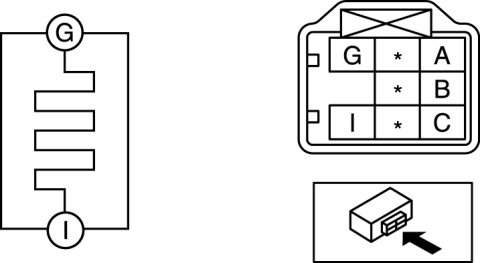

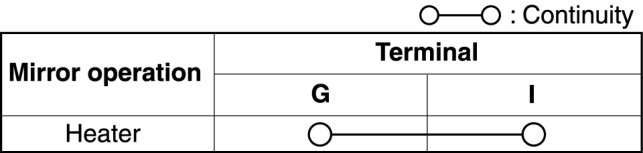

2. Inspect for continuity between the power outer mirror heater terminals.






- If not as specified, replace the power outer mirror.
