Car-Navigation Unit

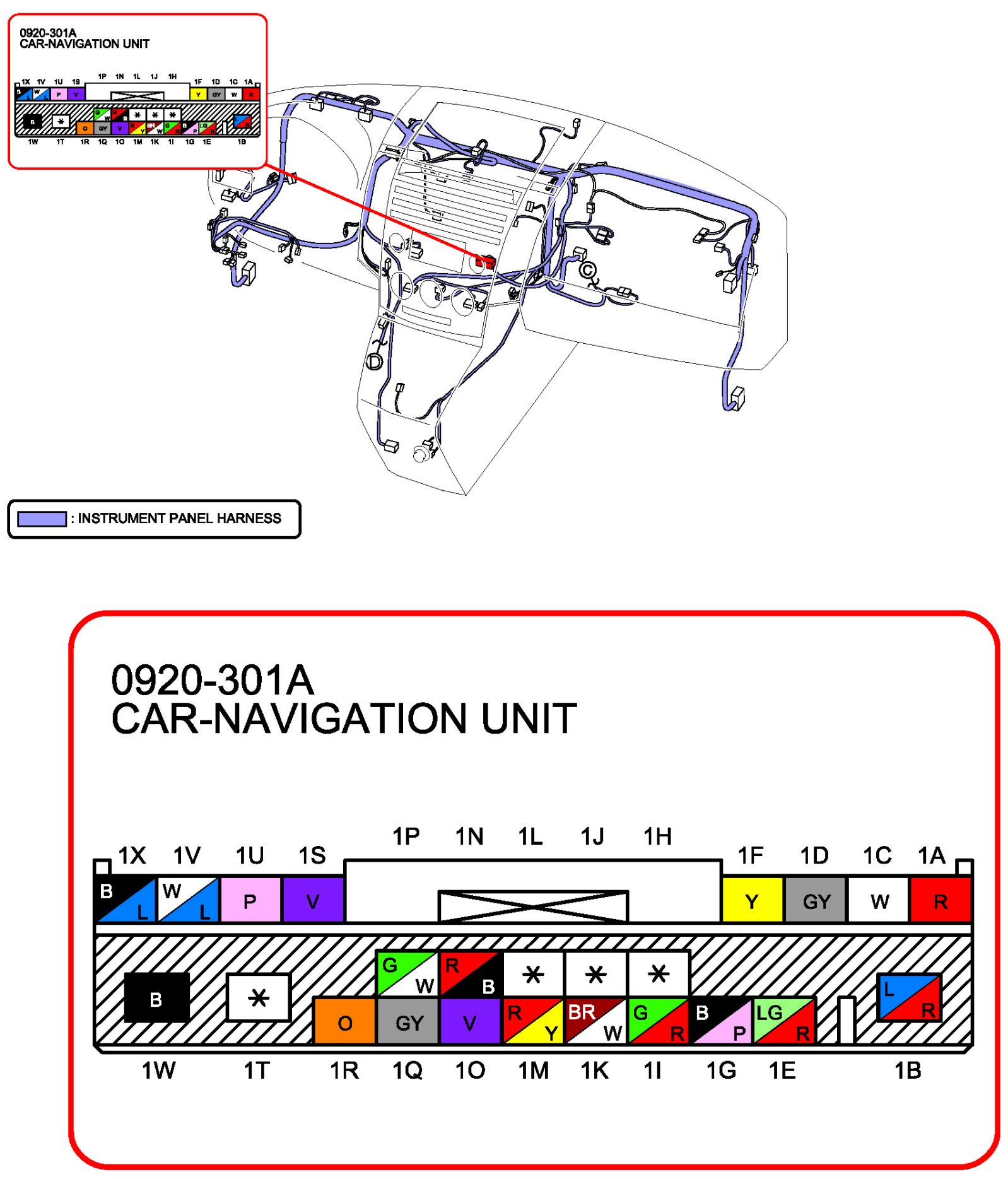

Car-Navigation Unit (Audio System With Car-Navigation System):

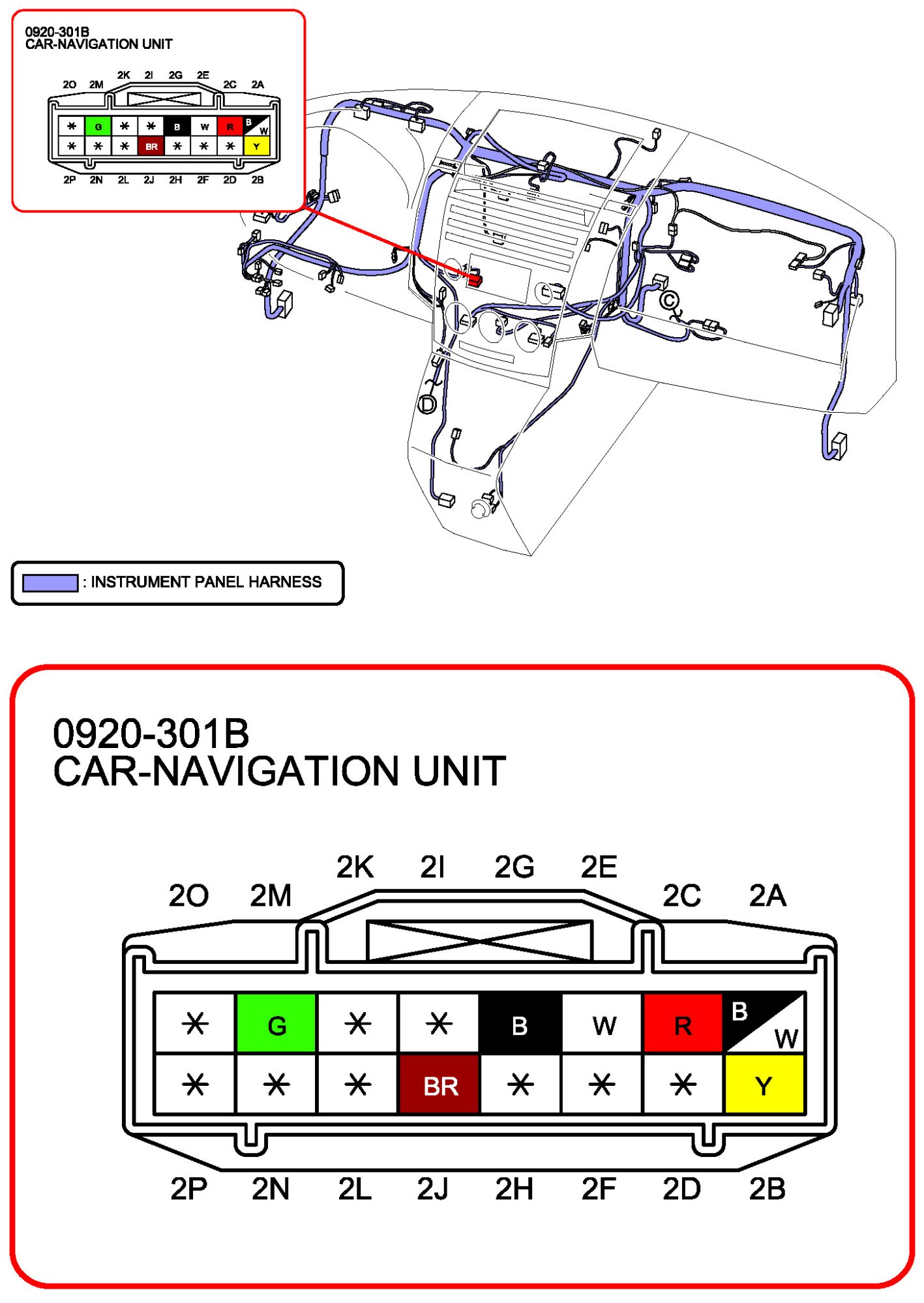

Car-Navigation Unit (Audio System With Car-Navigation System):

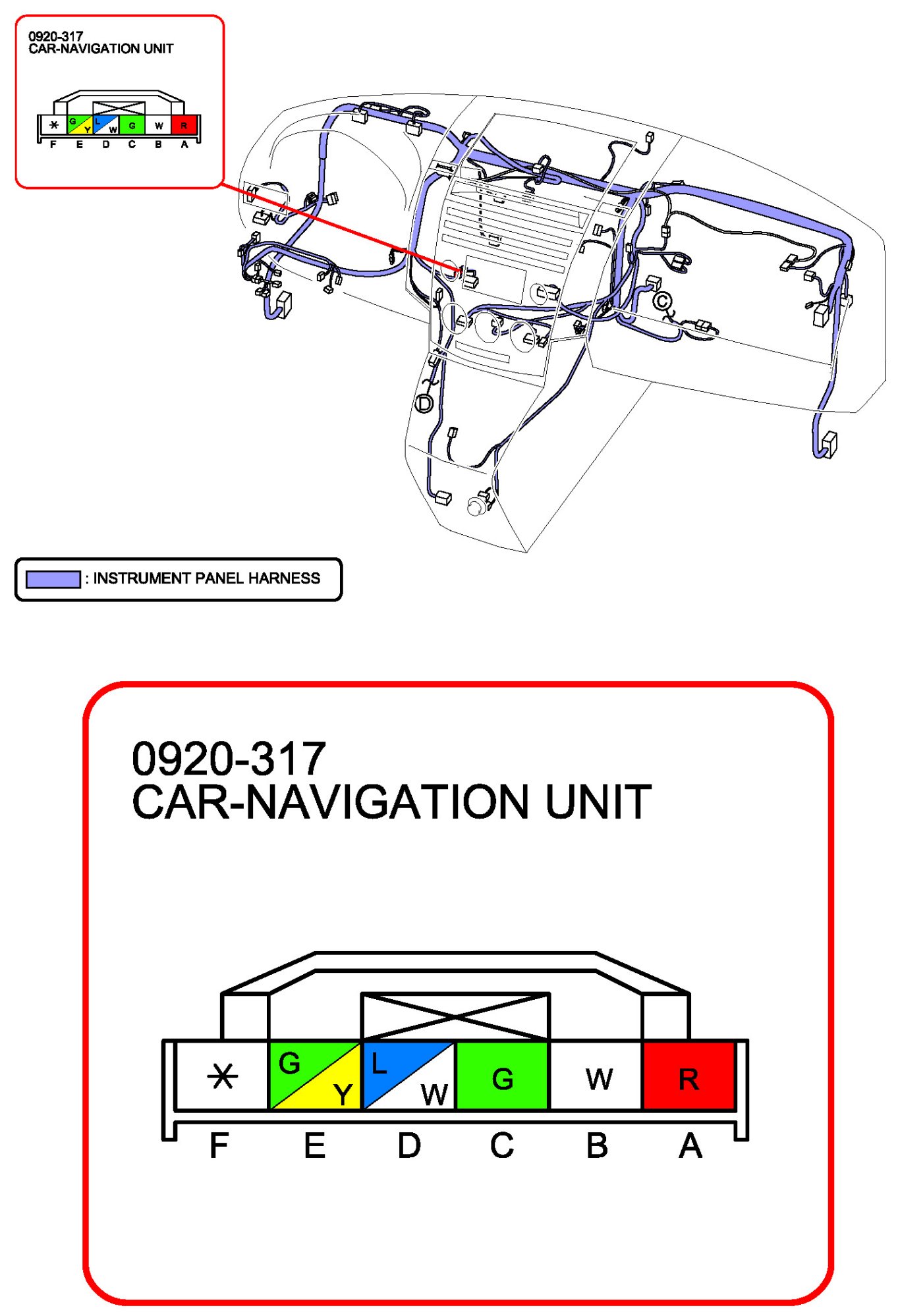

Car-Navigation Unit (Audio System With Car-Navigation System):
