Climate Control Unit/Climate Control Unit Illumination

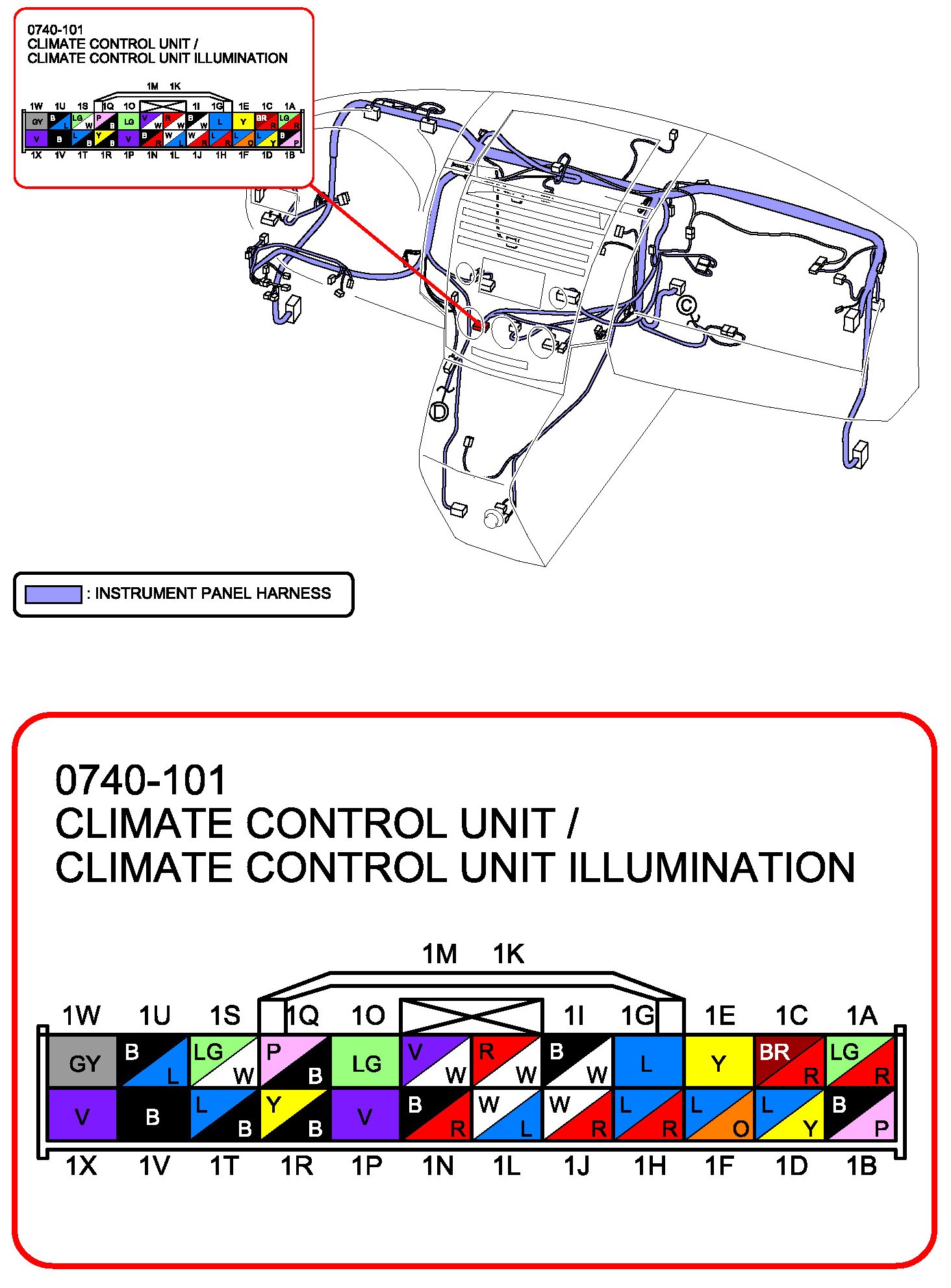

Climate Control Unit/Climate Control Unit Illumination (Auto A/C):

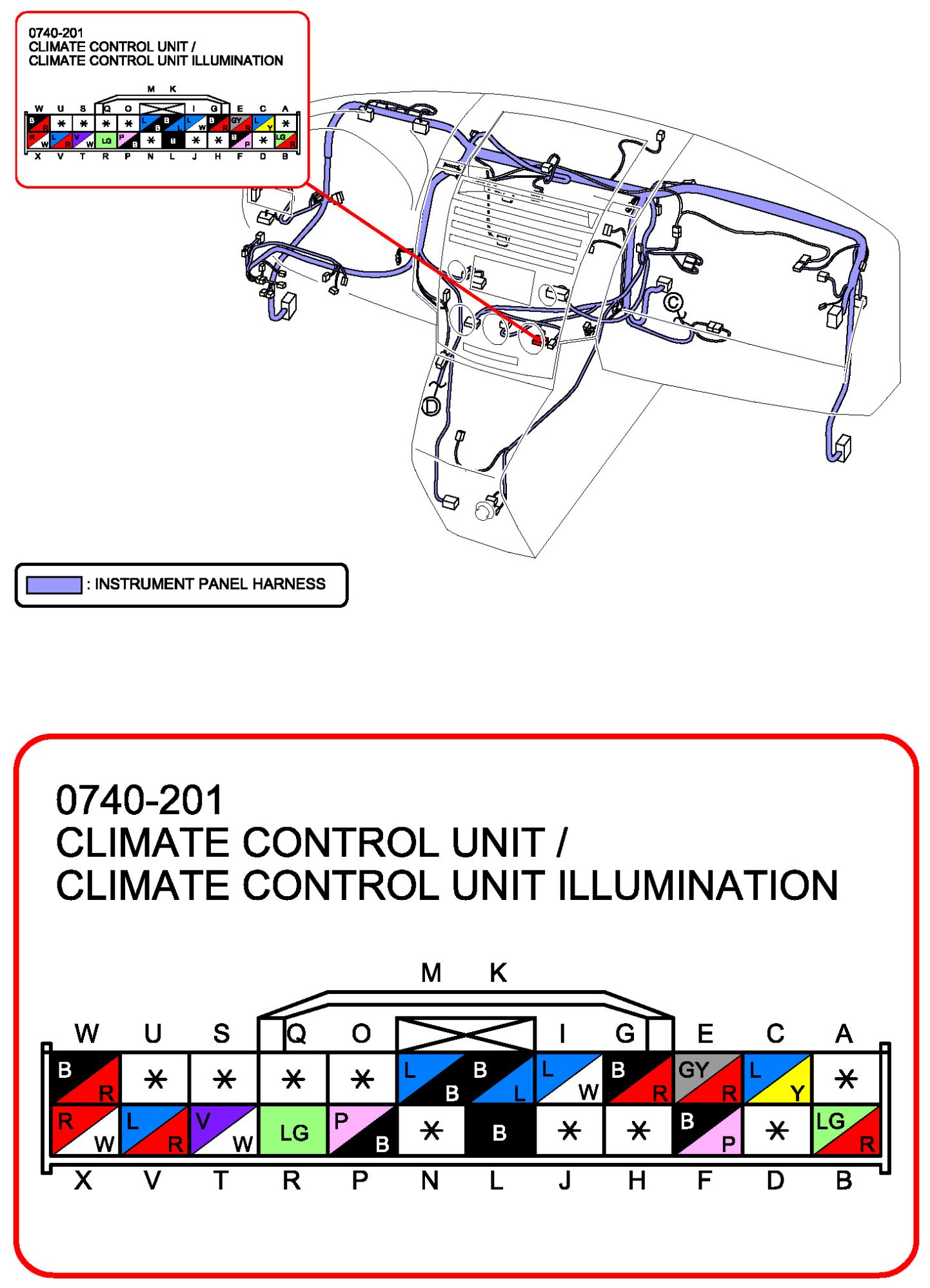

Climate Control Unit/Climate Control Unit Illumination (Manual A/C):
