Refrigerant Pressure Switch

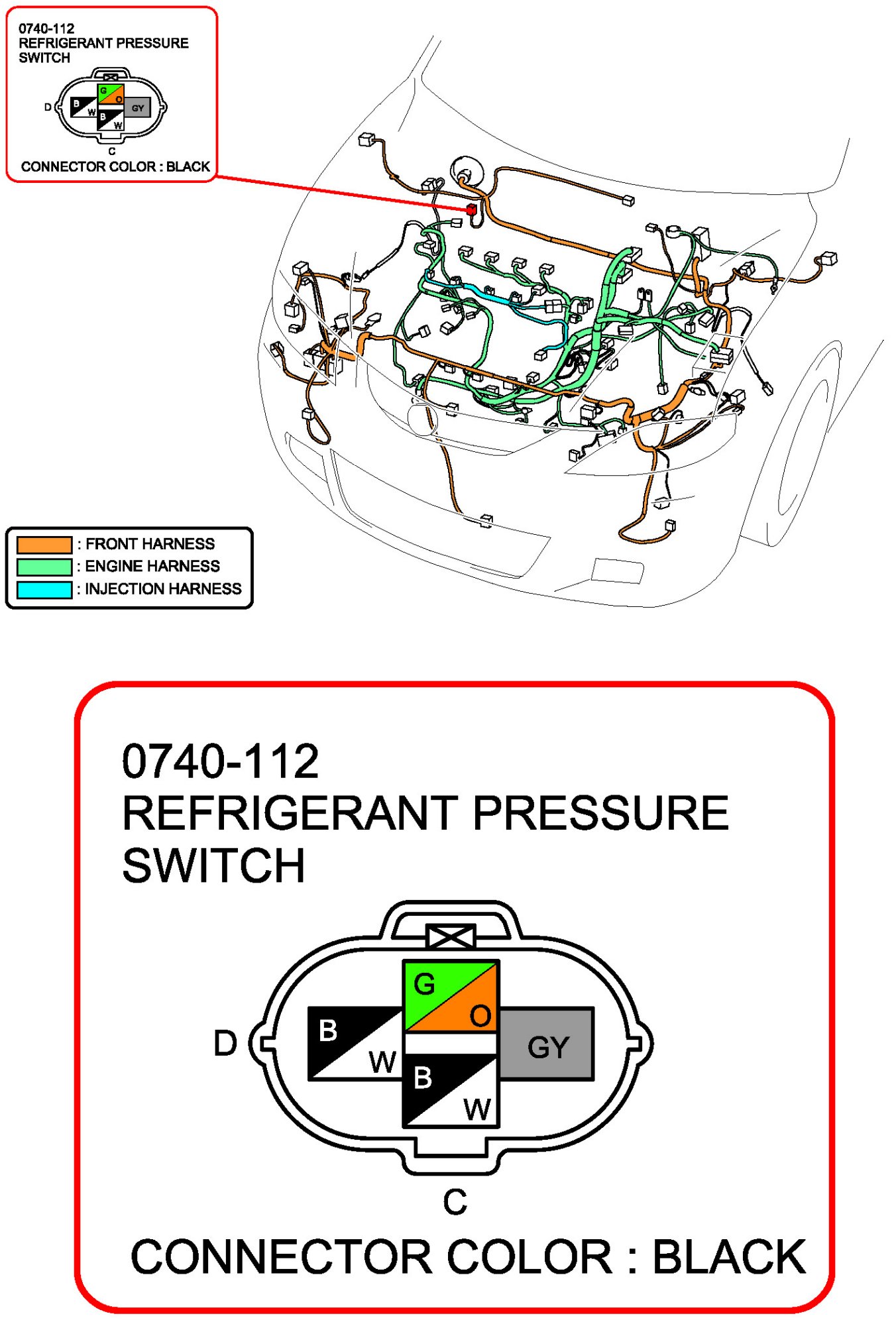

Refrigerant Pressure Switch (Auto A/C):

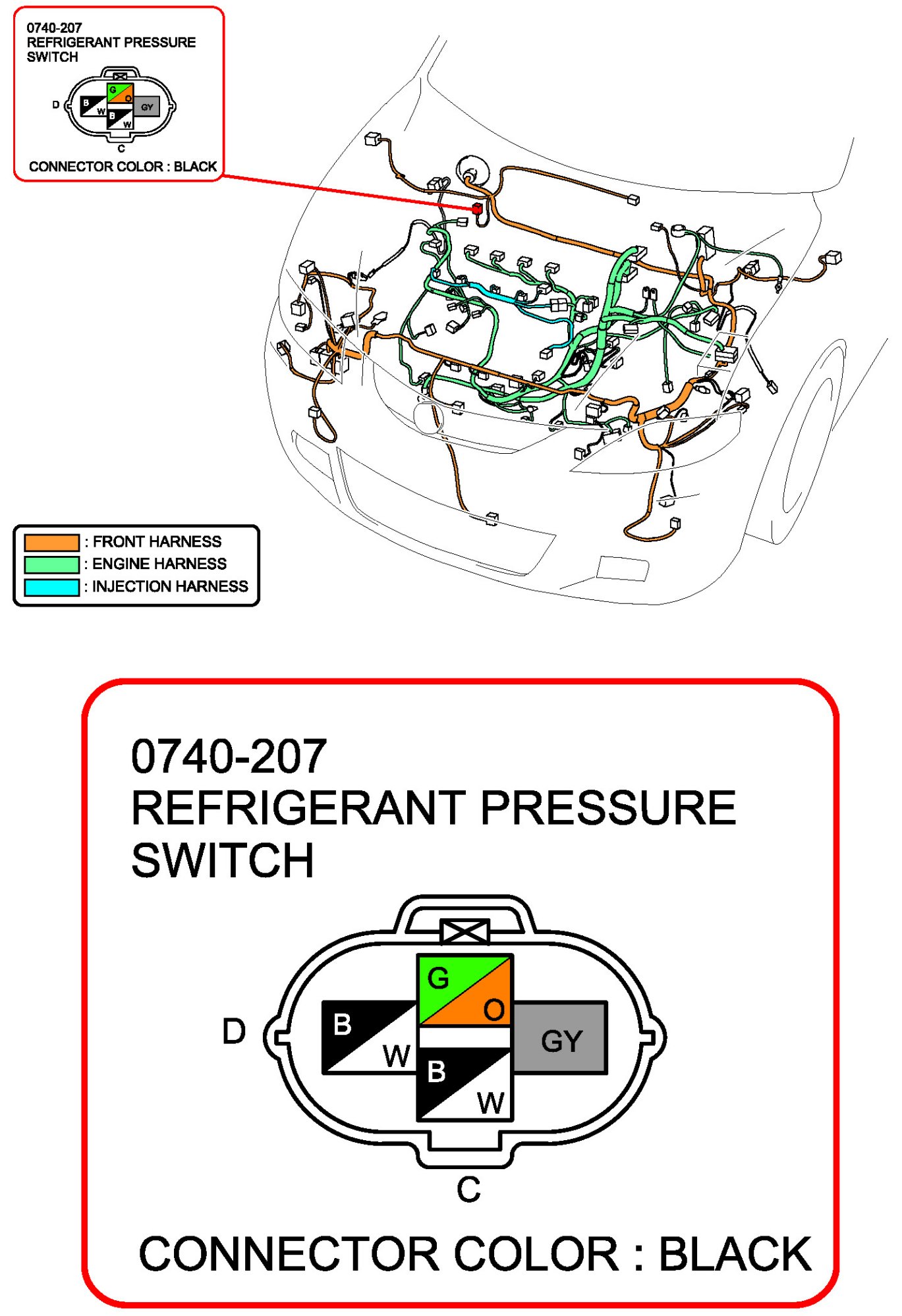

Refrigerant Pressure Switch (Manual A/C):
