Windows

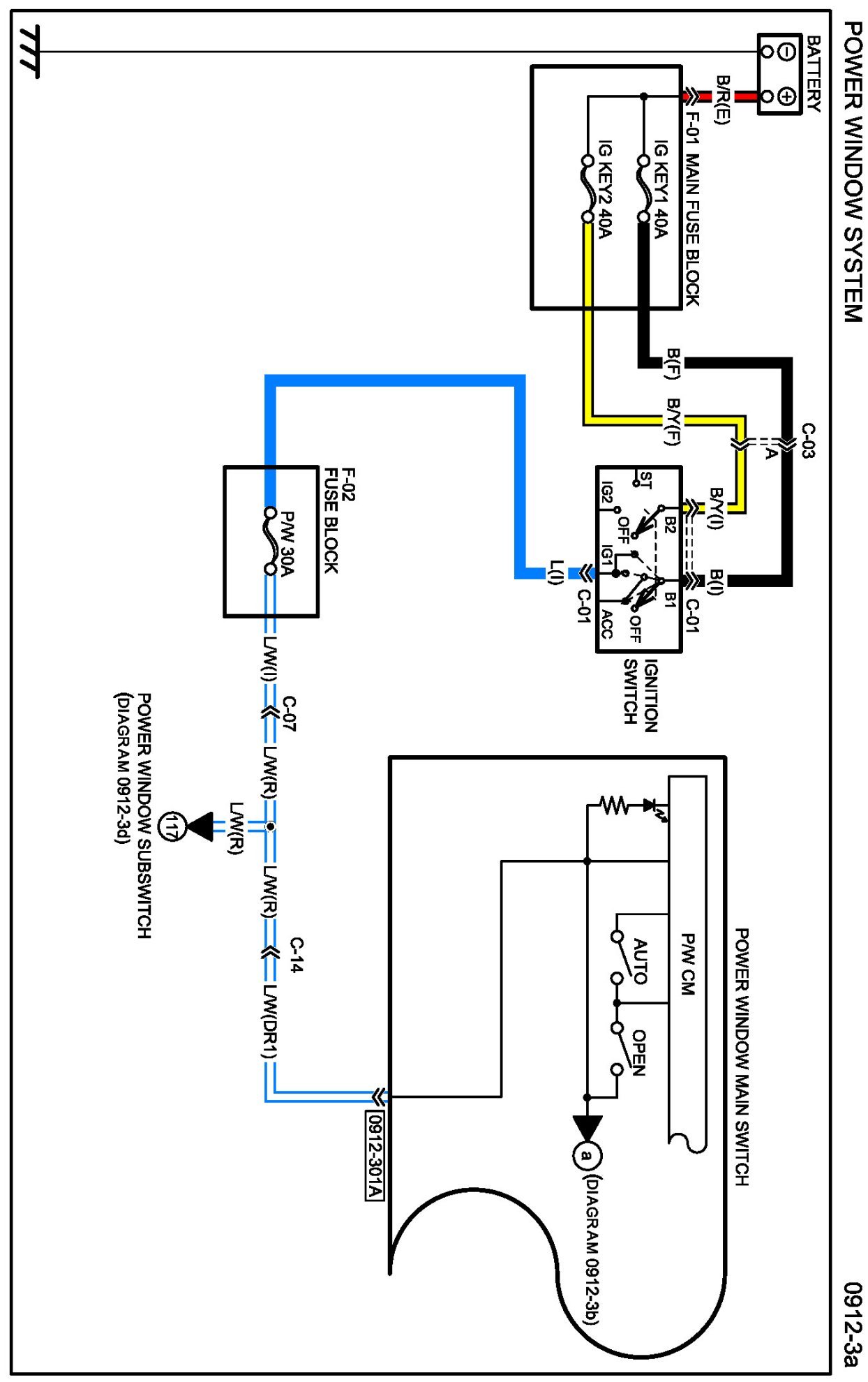

Diagram 0912-3a:

Connectors 0912-3a:

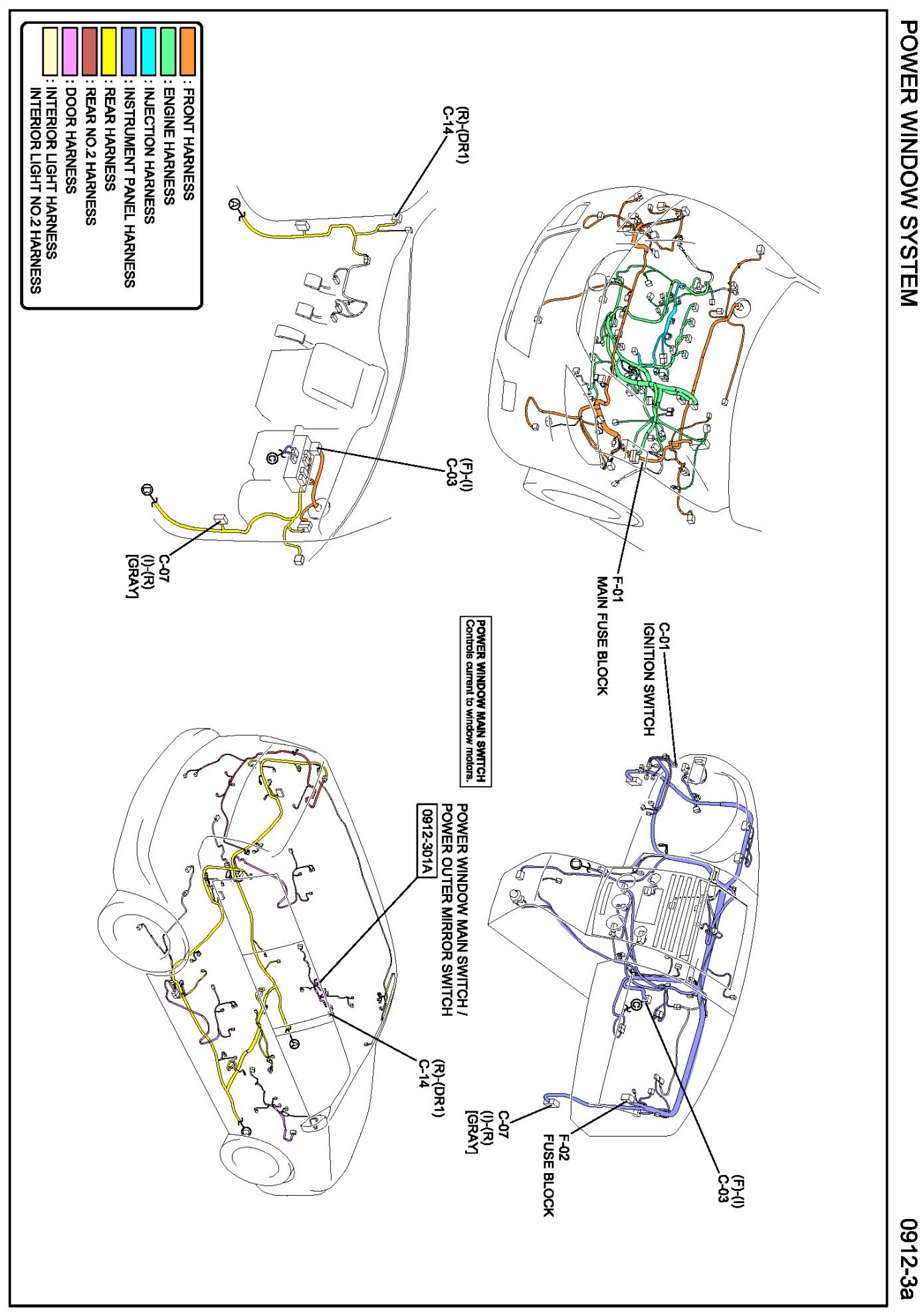

Routing View 0912-3a:

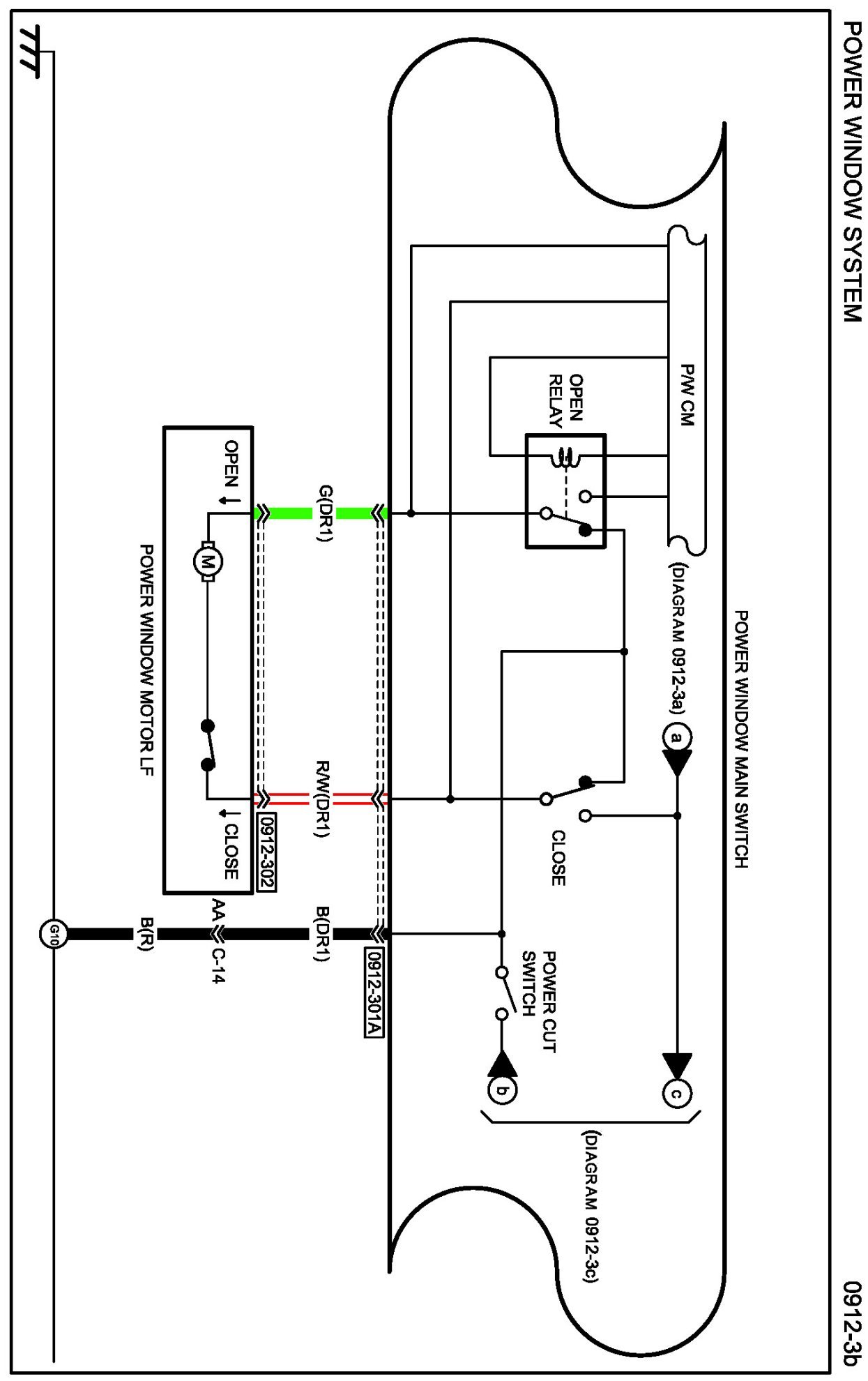

Diagram 0912-3b:

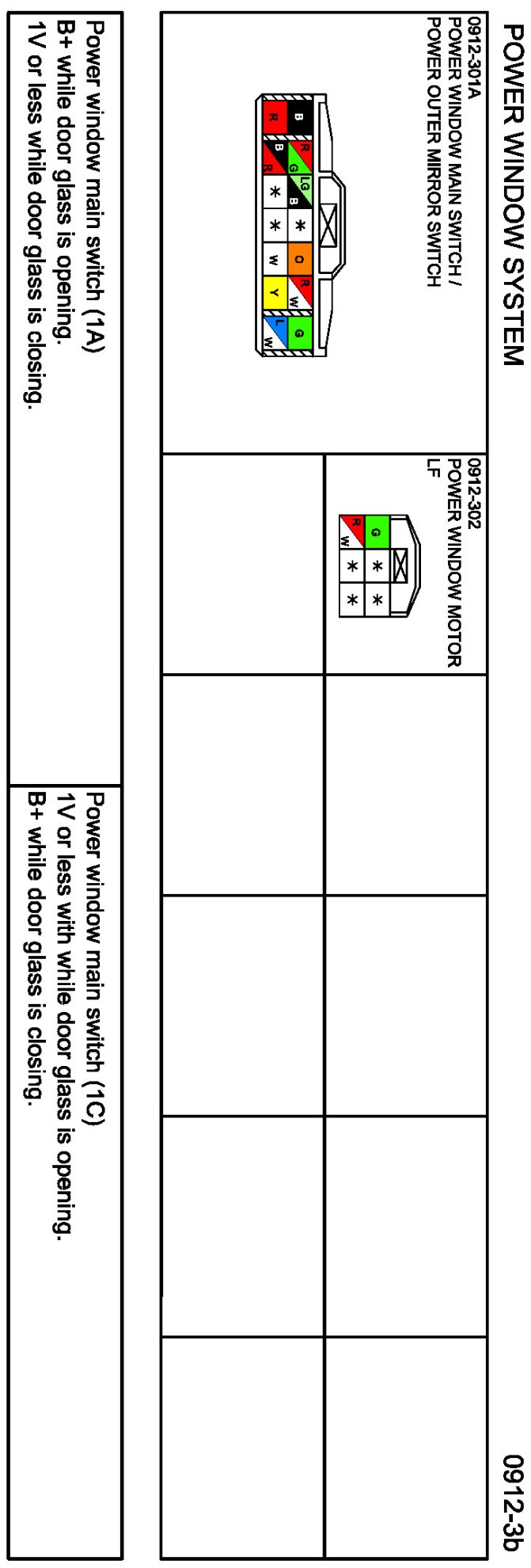

Connectors 0912-3b:

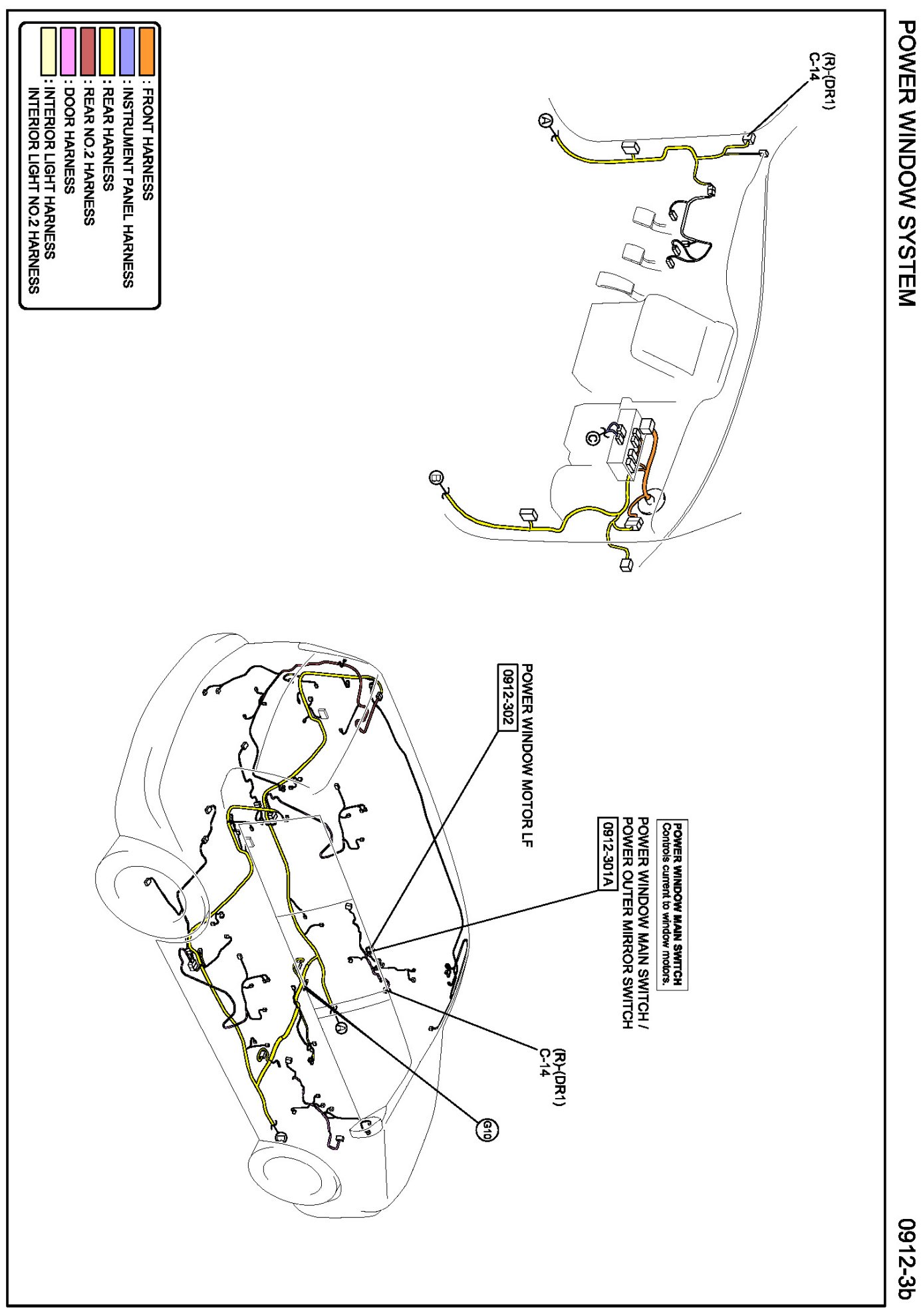

Routing View 0912-3b:

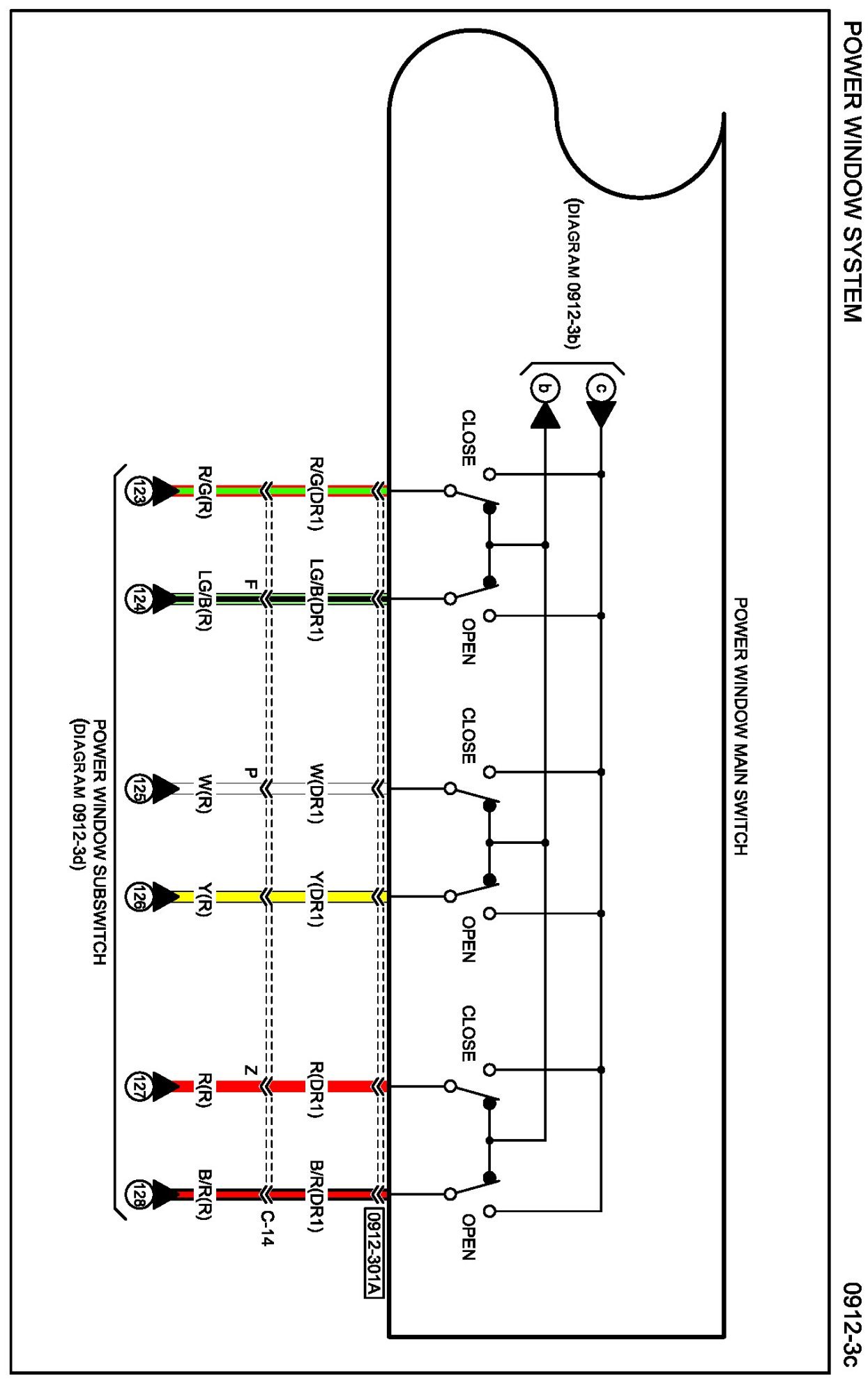

Diagram 0912-3c:

Connectors 0912-3c:

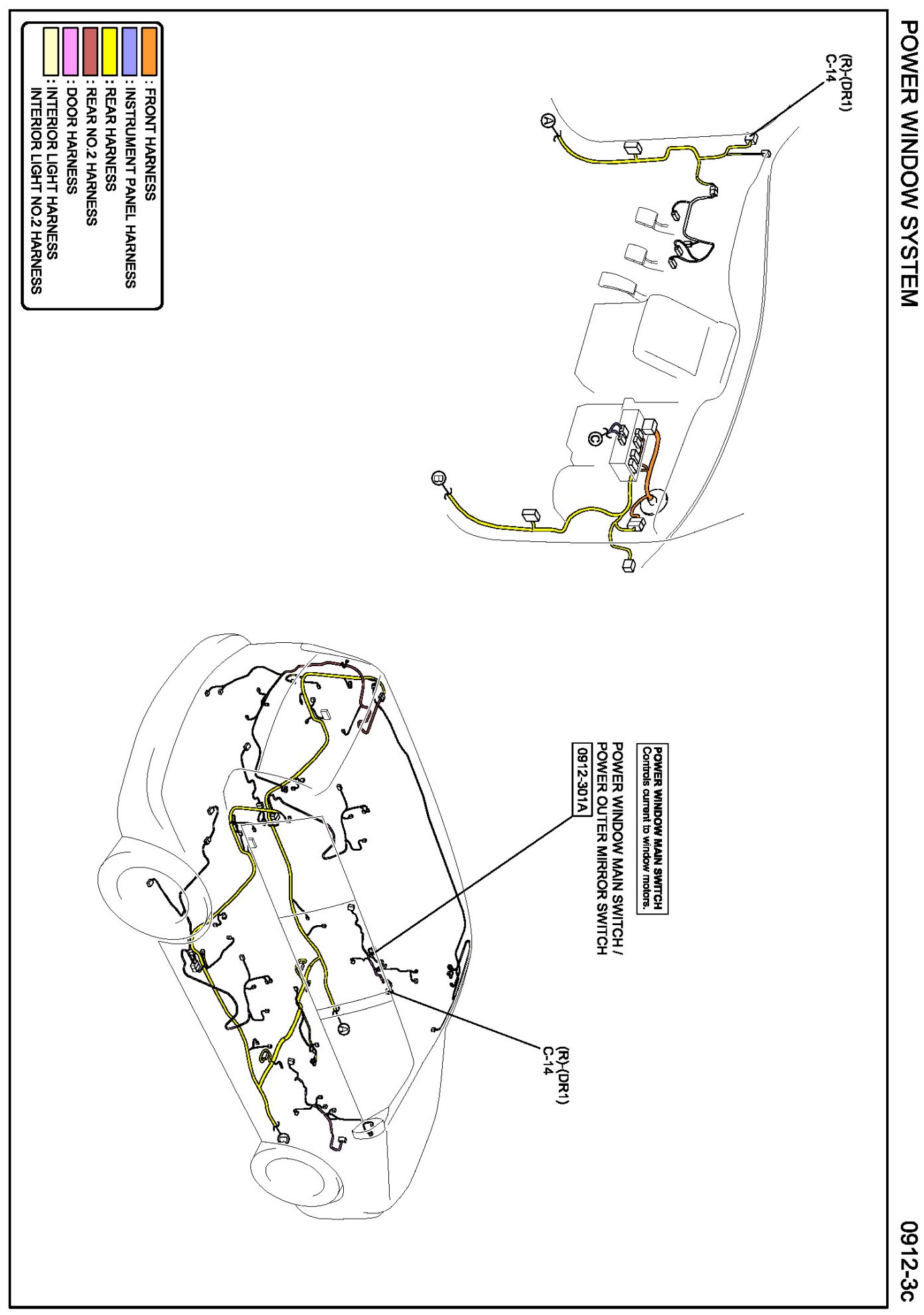

Routing View 0912-3c:

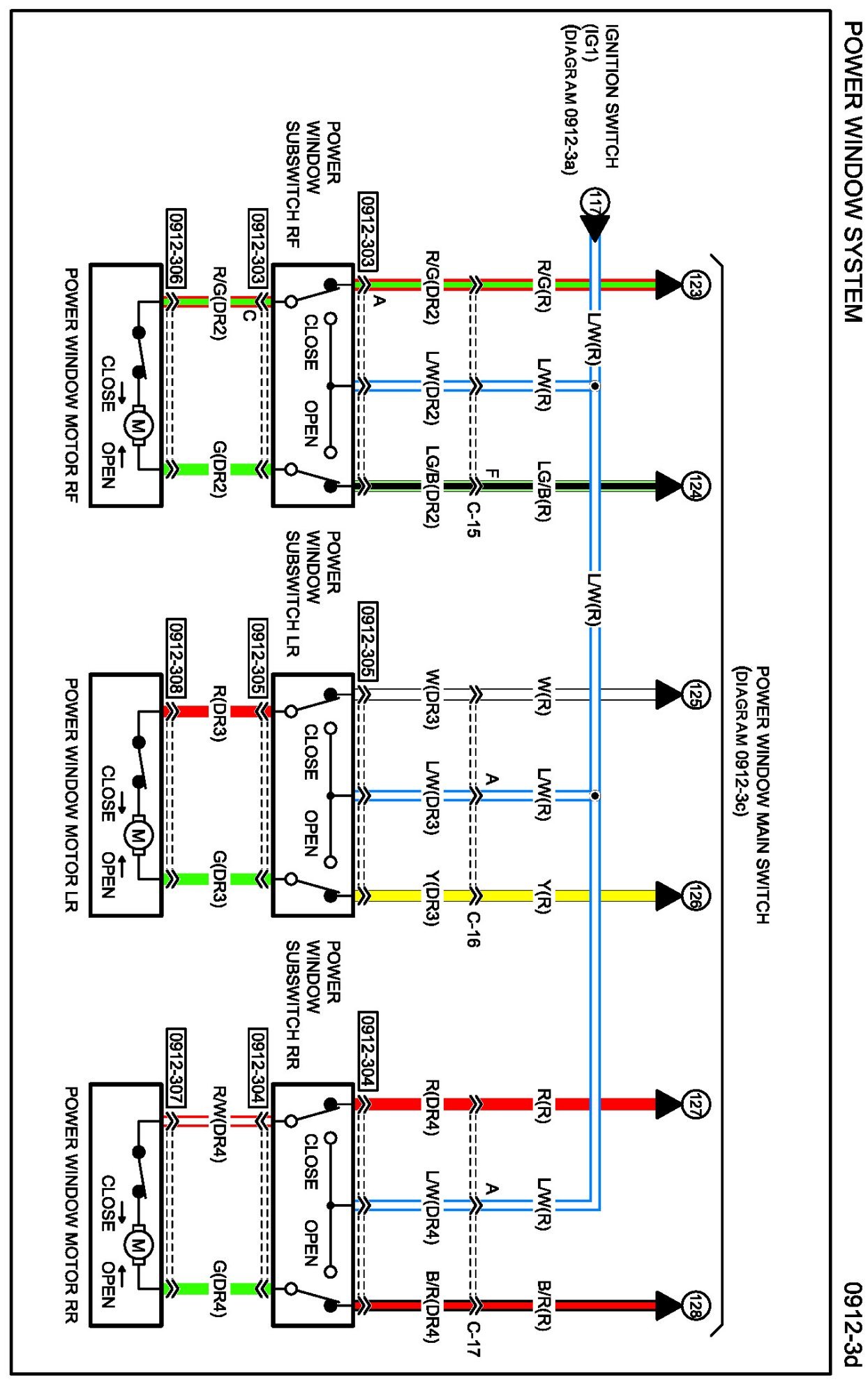

Diagram 0912-3d:

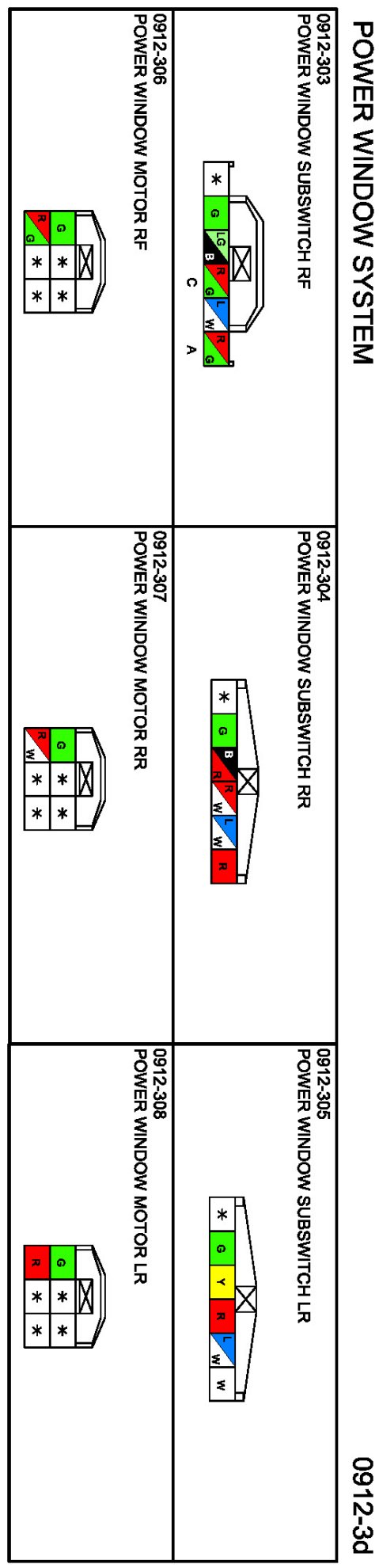

Connectors 0912-3d:

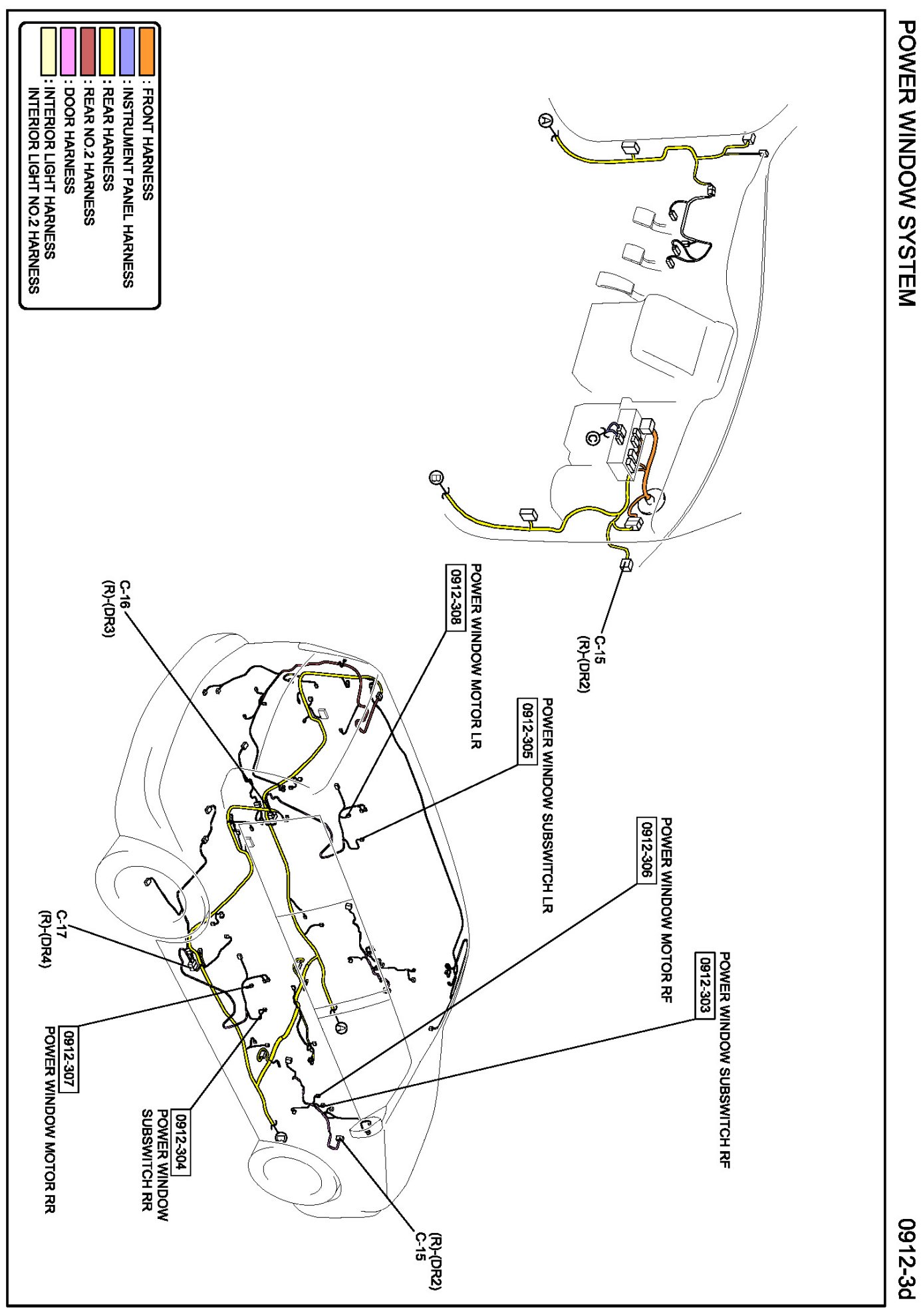

Routing View 0912-3d:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
