Camshaft Gear/Sprocket

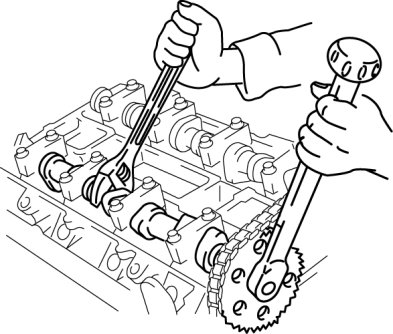

Fix the exhaust camshaft using a wrench on the cast hexagon, and tighten the sprocket bolt.






Tightening torque 69-75 Nm {7.1-7.6 kgf-m, 50.9-55.3 ft-lbf}

Tighten variable valve timing actuator tightening bolt.

Tightening torque
- 69-75 Nm {7.1-7.6 kgf-m, 51-55 ft-lbf}
