Camshaft Bearing Cap

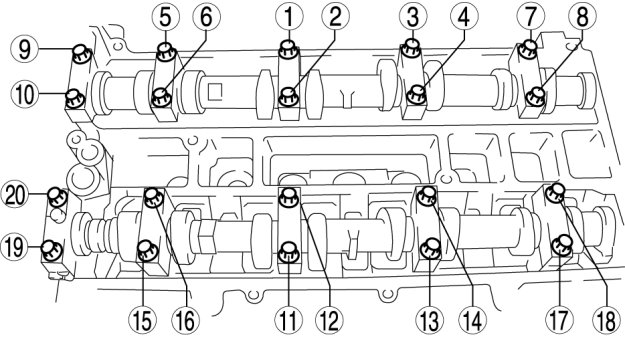

Tighten the camshaft cap bolts in the order shown with the following two steps.






Tighten torque
- 5.0-9.0 Nm {51-91 kgf-cm, 44.3-79.6 in-lbf}
- 14-17 Nm {1.5-1.7 kgf-m, 10.4-12.5 ft-lbf}
