Engine Technical Data - Performance




ENGINE TECHNICAL DATA [L3]

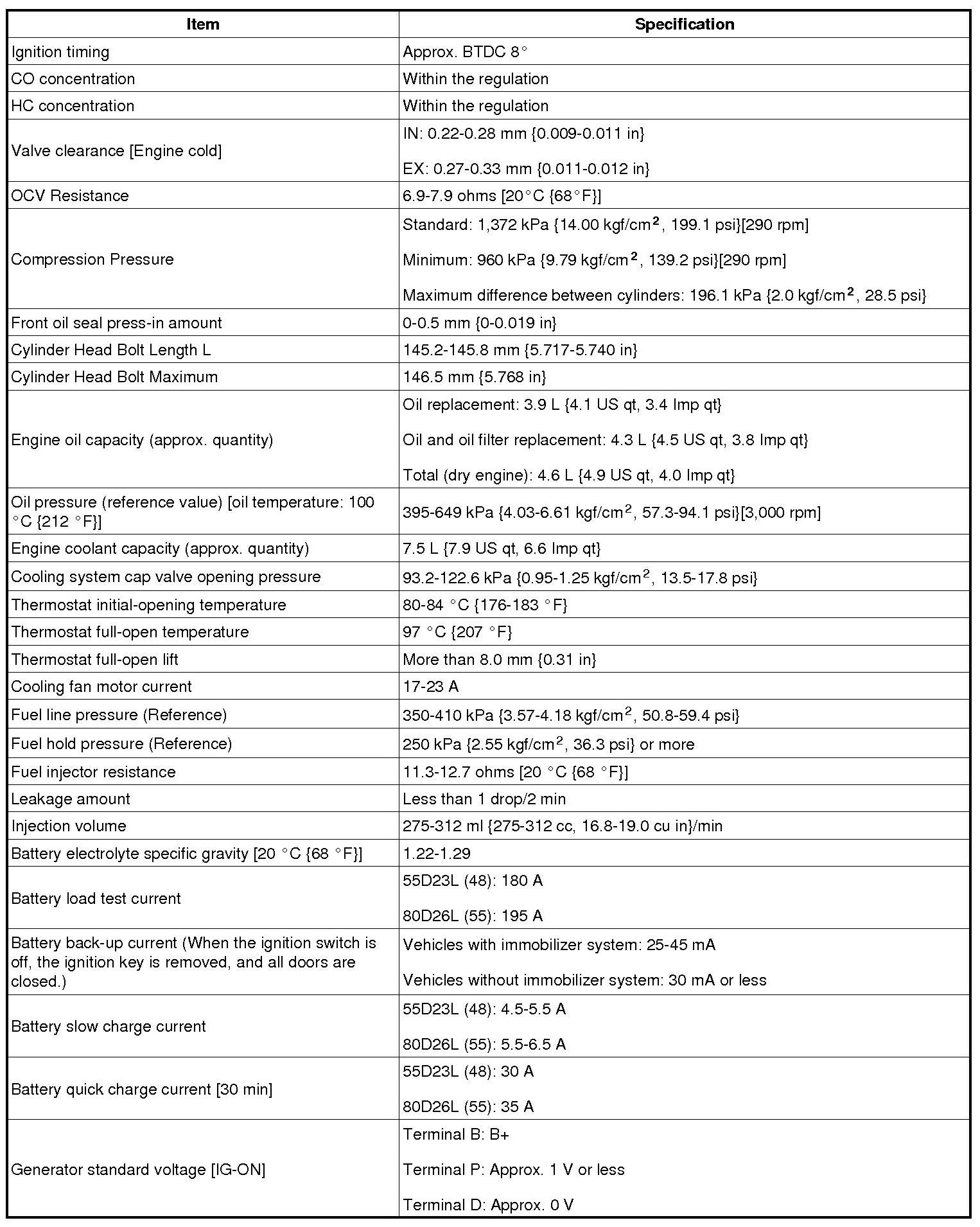

Part 1:

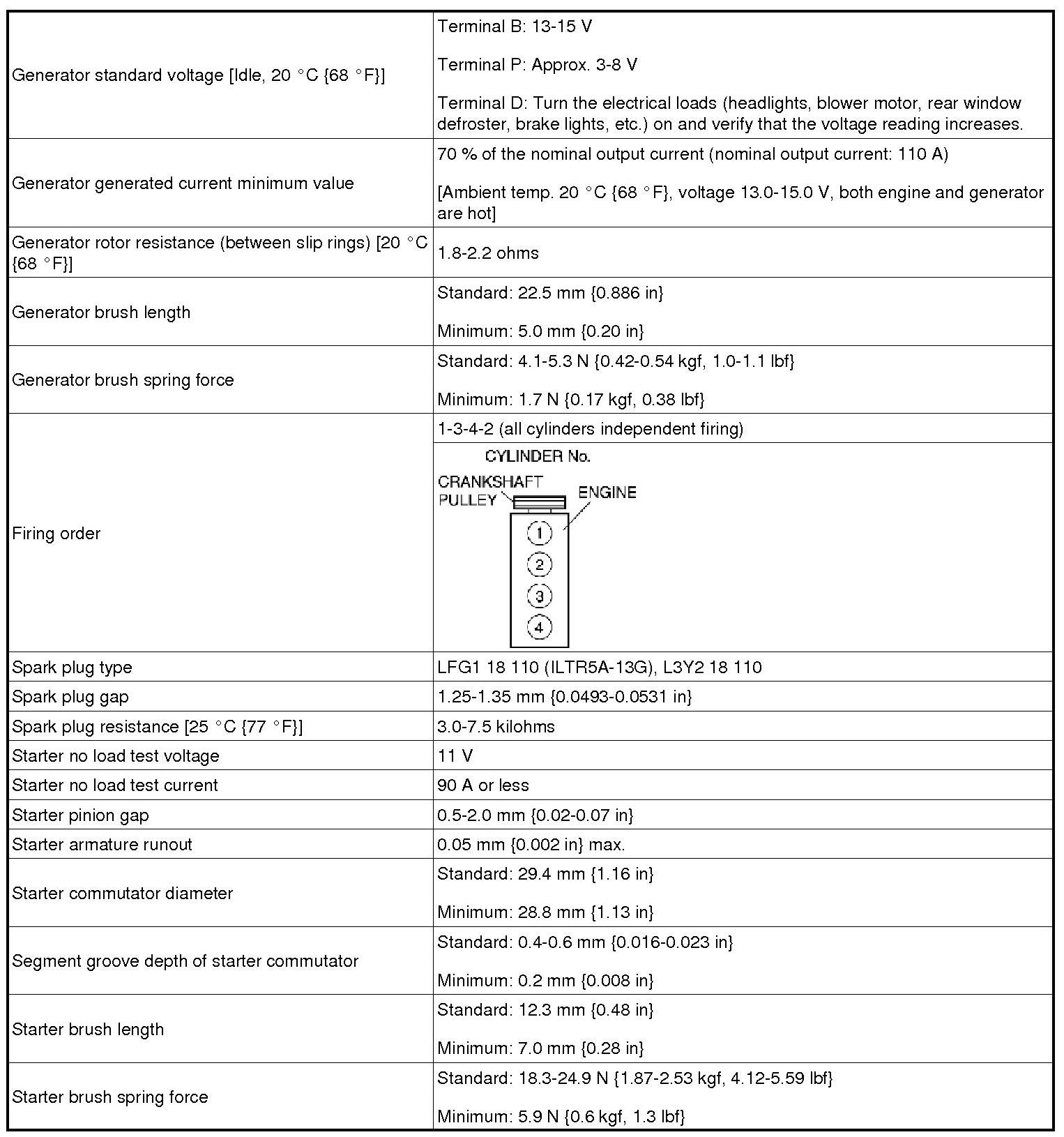

Part 2:

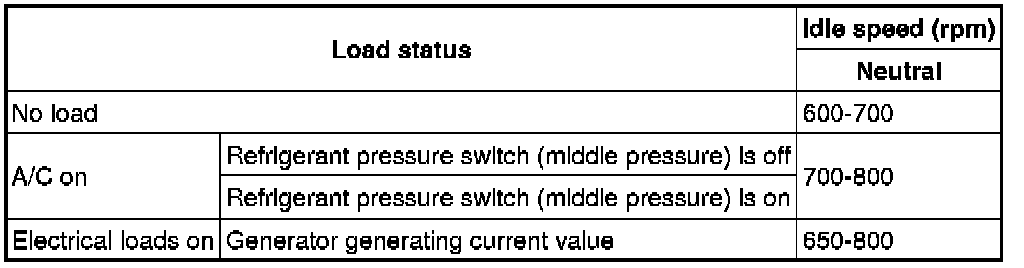

Idle speed: MTX

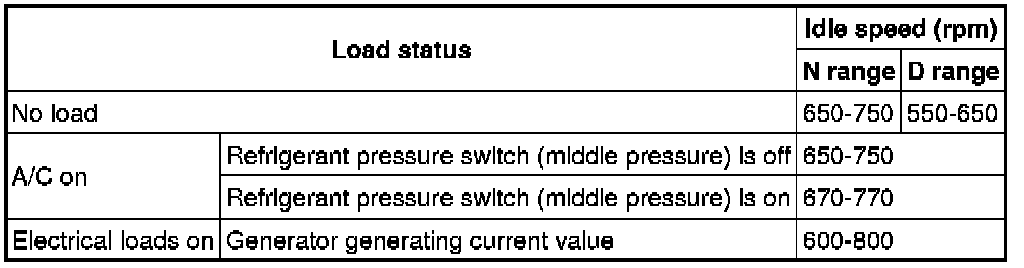

Idle speed: ATX

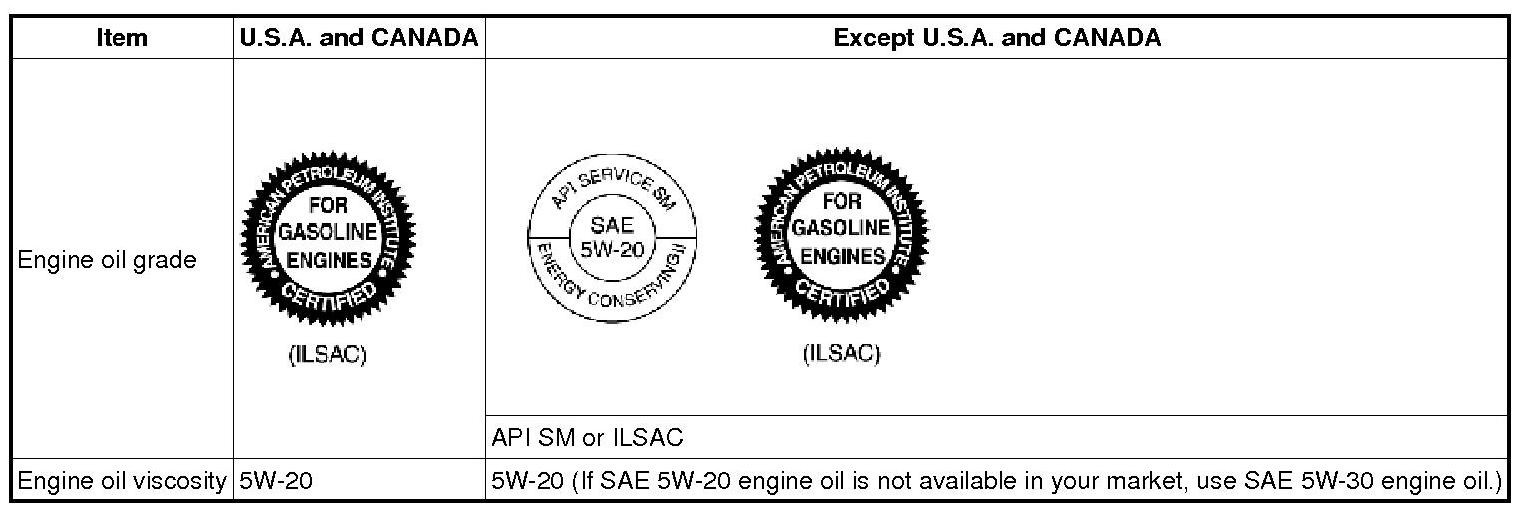

Engine oil specification
