Control Module: Service and Repair

TCM REMOVAL/INSTALLATION [FS5A-EL]

CAUTION:
- Do not apply a shock to or touch the projection on the TCM, otherwise it may not operate normally.

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the battery duct. Removal and Replacement

4. Remove the battery, battery box and battery tray. Removal and Replacement

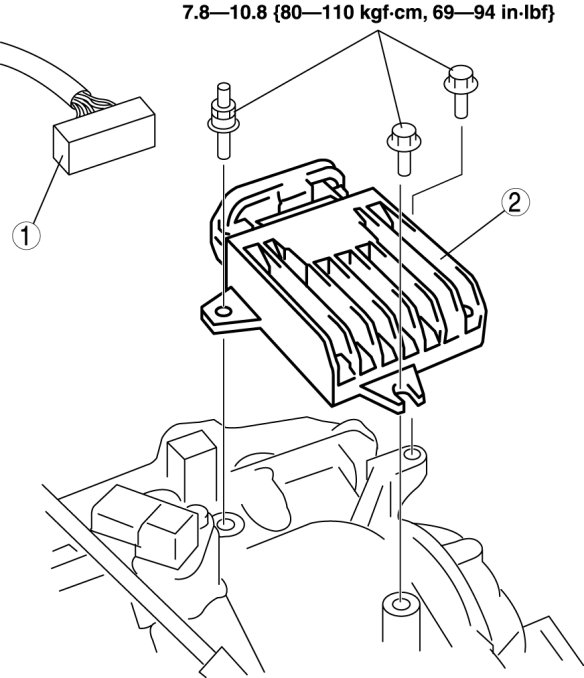

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.
