Pinout Values and Diagnostic Parameters

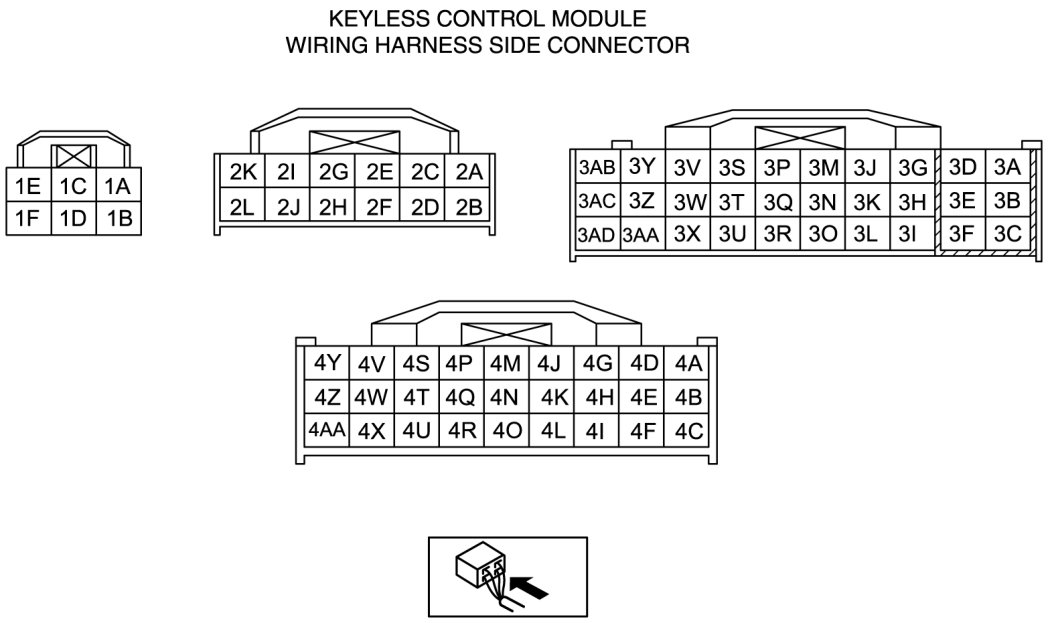

KEYLESS CONTROL MODULE INSPECTION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

Terminal Voltage Table (Reference)

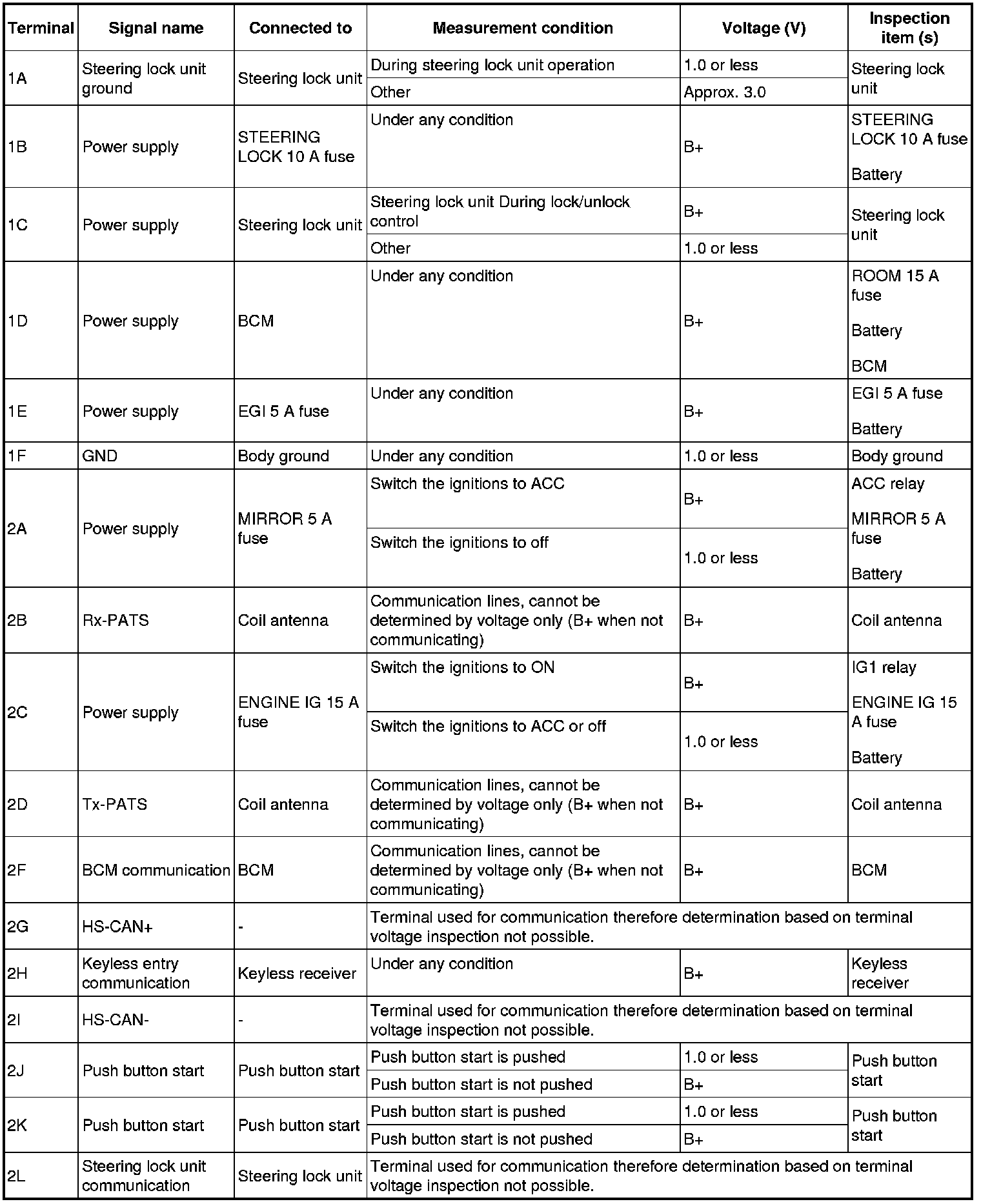

Terminal Voltage Table (Reference) (Part 1):

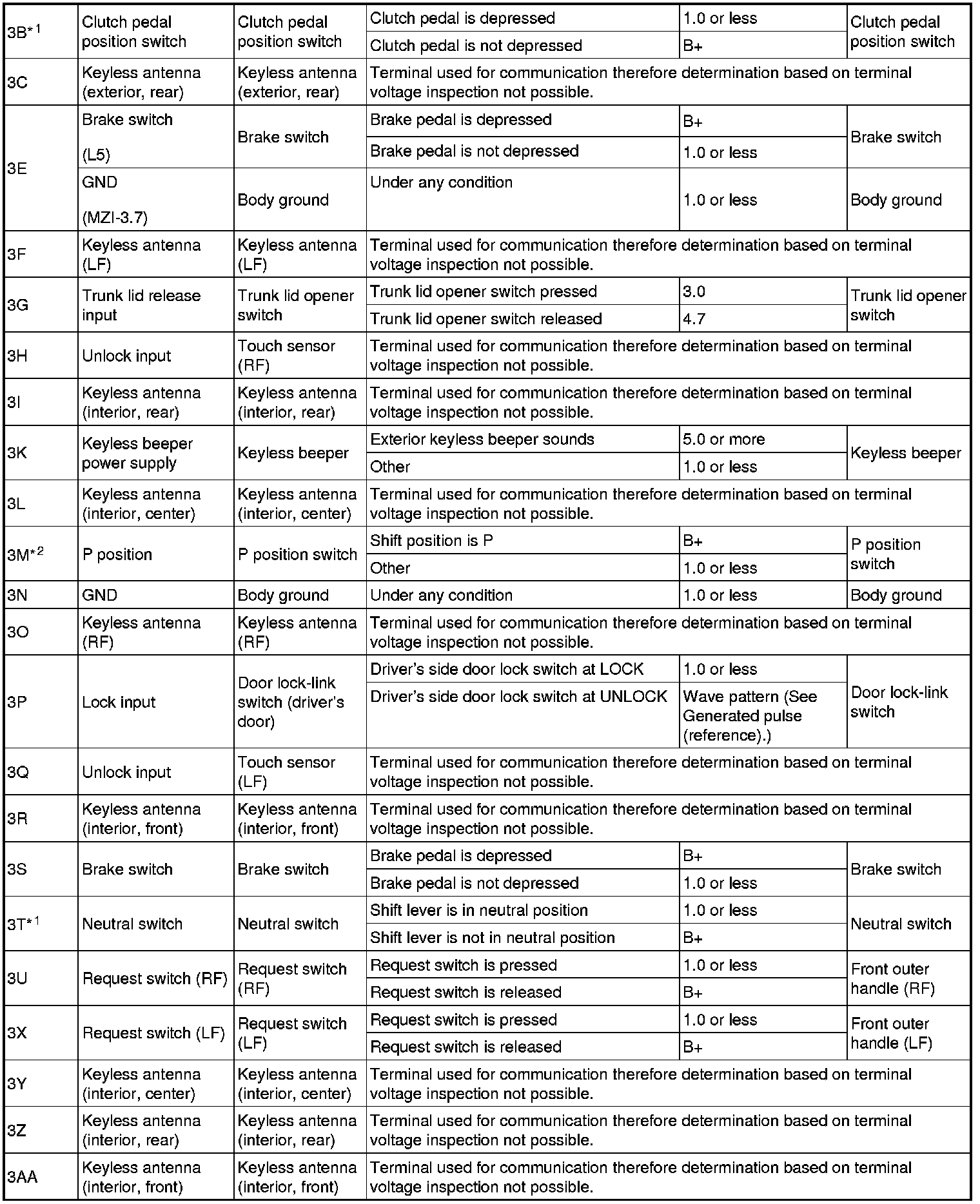

Terminal Voltage Table (Reference) (Part 2):

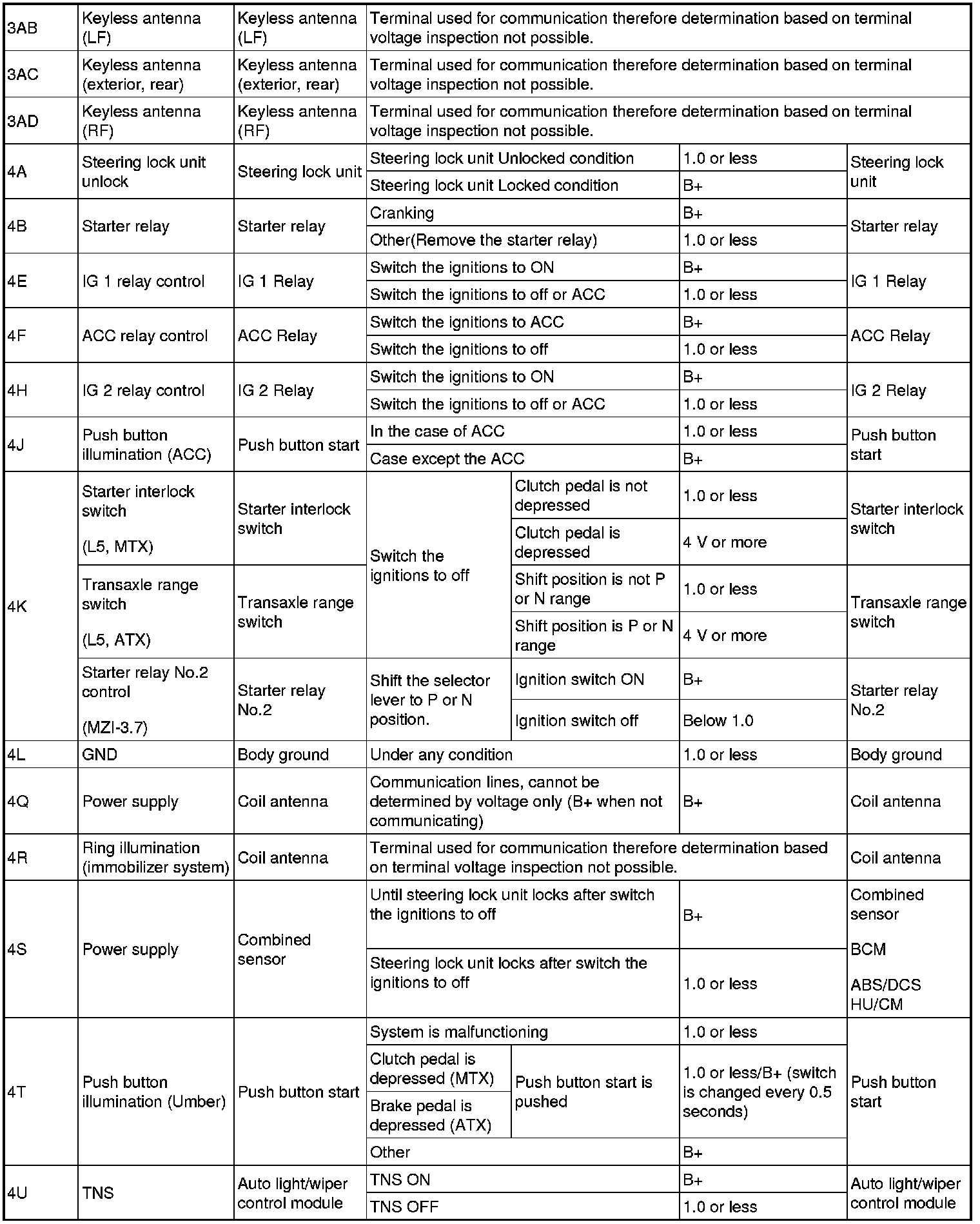

Terminal Voltage Table (Reference) (Part 3):

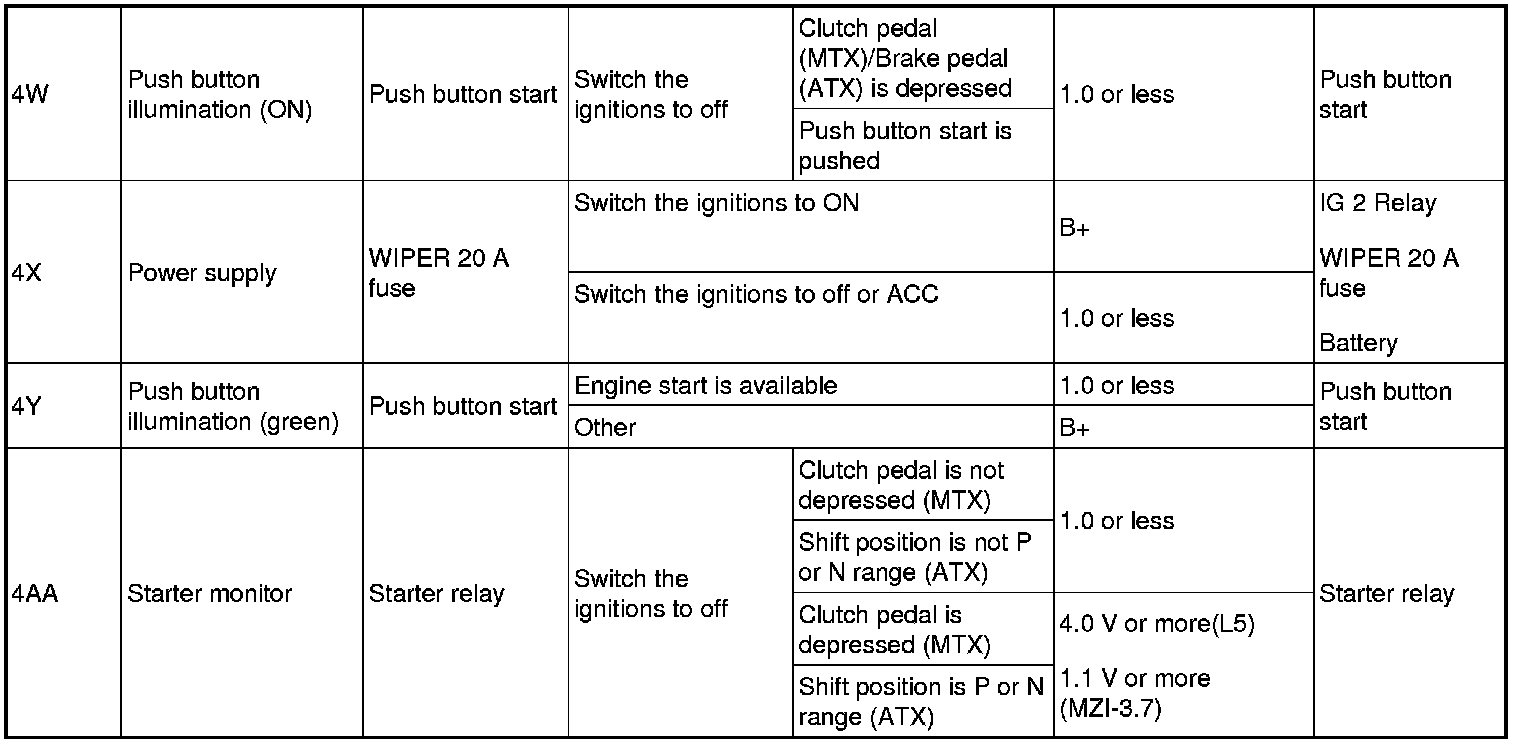

Terminal Voltage Table (Reference) (Part 4):

*1
MTX
*2
ATX

Generated pulse (reference)





- Terminal: 3P (+) -> body ground (-)
- Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
