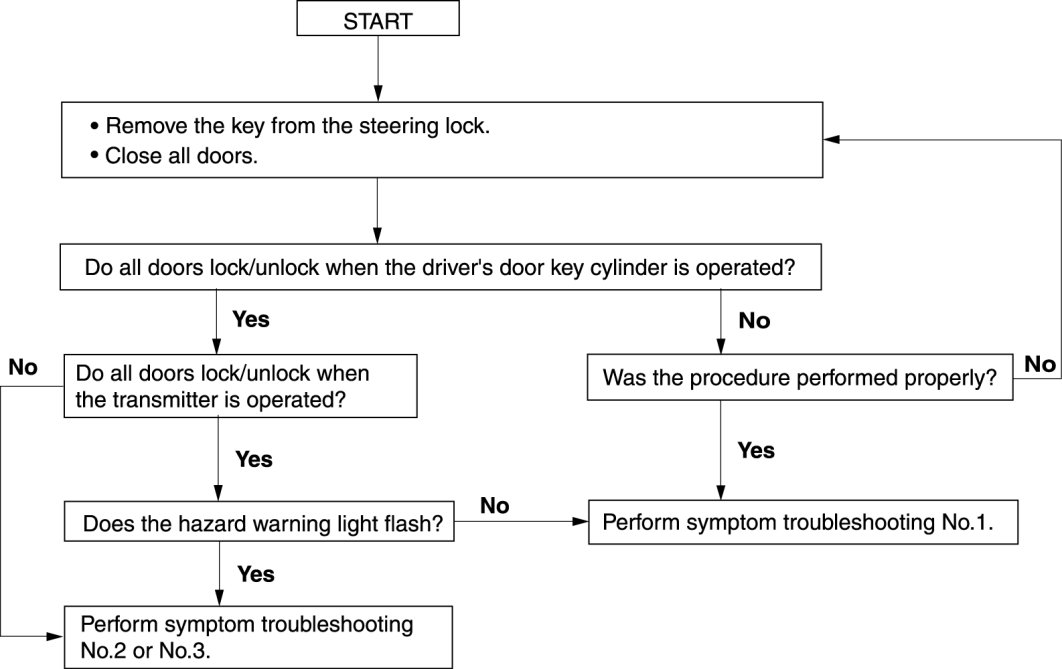

Keyless Entry System Operation Inspection [Keyless Entry System]
KEYLESS ENTRY SYSTEM OPERATION INSPECTION [KEYLESS ENTRY SYSTEM]
