Memory Positioning Module: Service and Repair

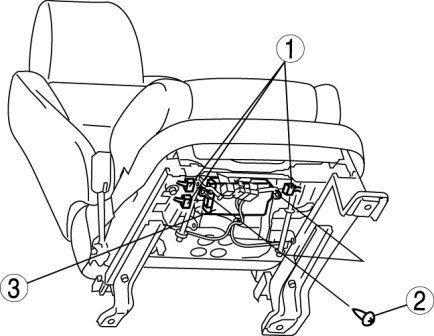

POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION

WARNING:
- Handling a front seat (with built-in side air bag) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings before handling a front seat (with built-in side air bag). Air Bag System Service Warnings

1. Operate the power seat switch and move the seat cushion forward and upward.

2. Disconnect the negative battery cable and wait 1 min or more.

3. Remove the driver-side front seat. Removal and Replacement

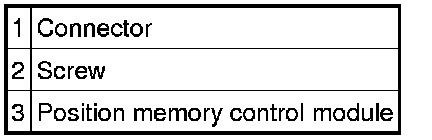

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
