Condenser

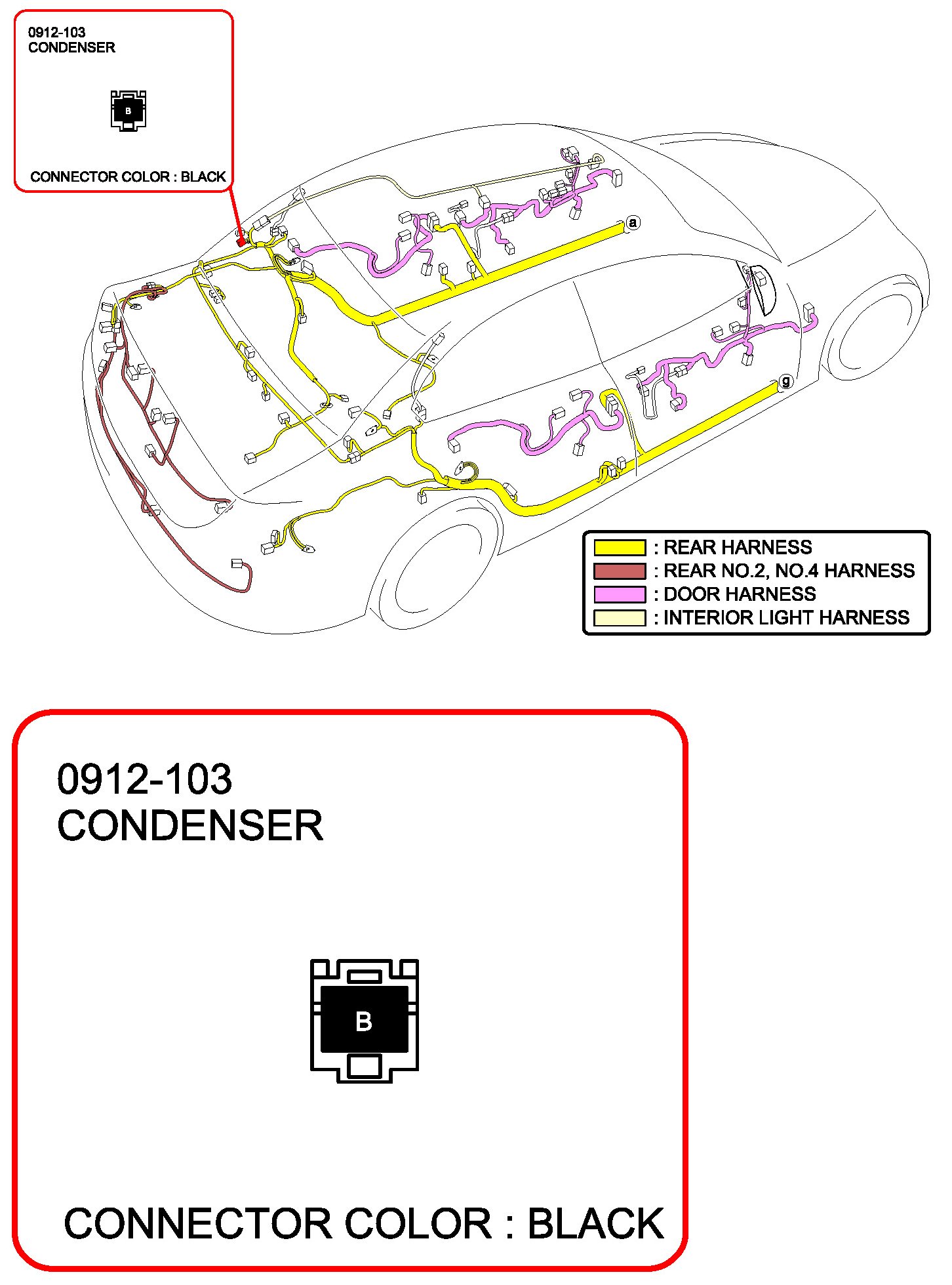

Condenser (Rear Window Defroster):

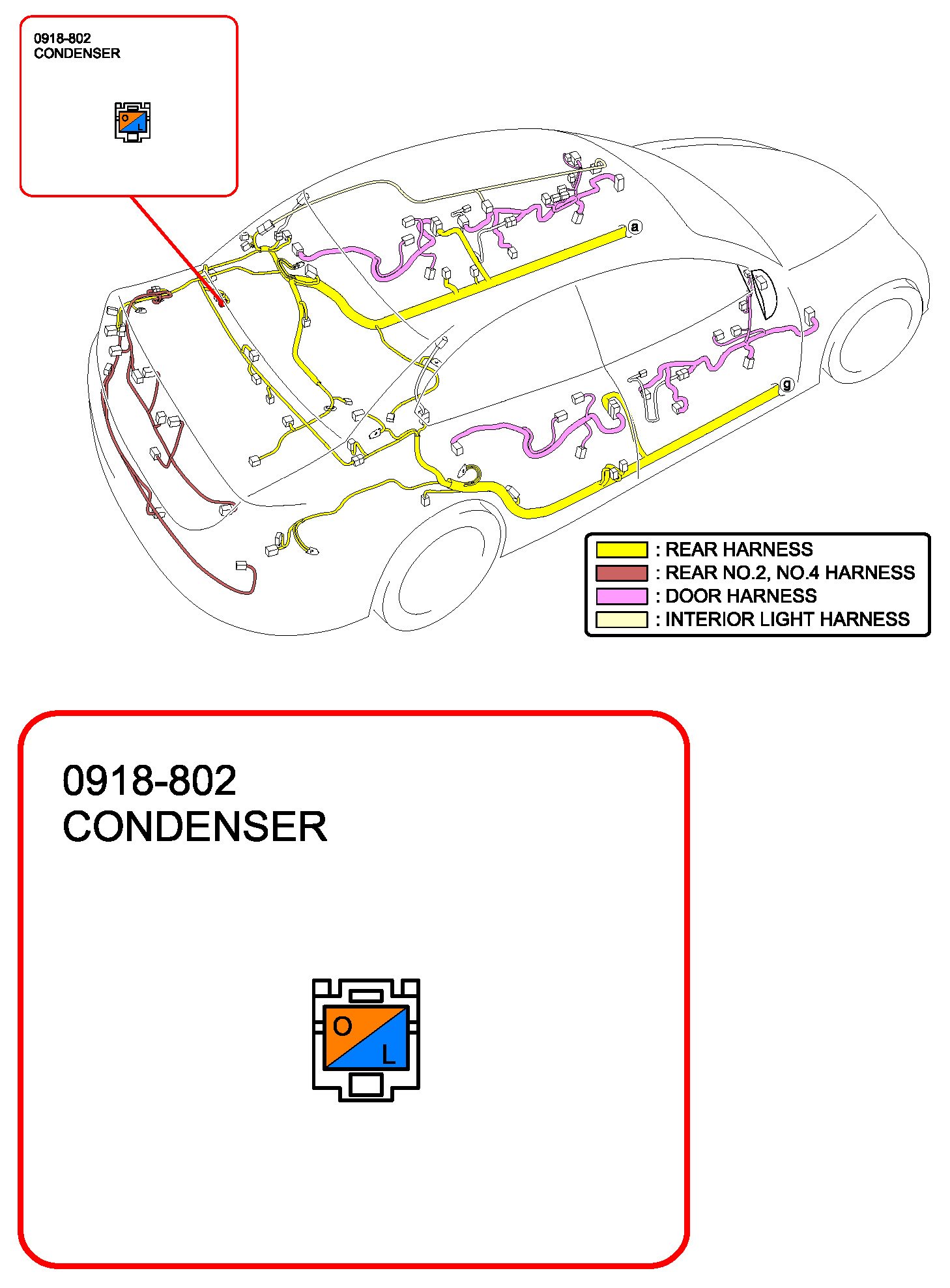

Condenser (Brake Lights):

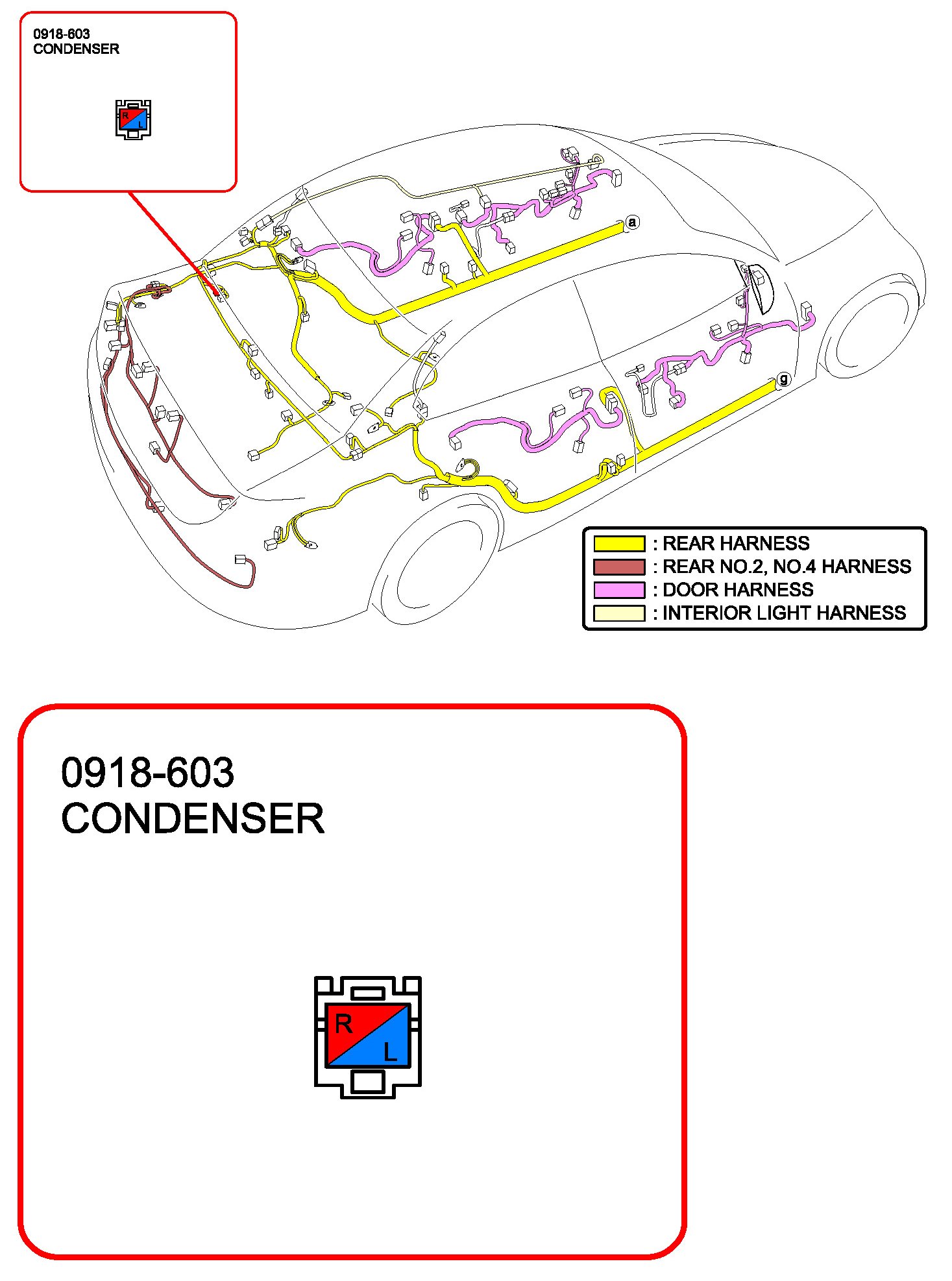

Condenser (Trunk Compartment Light):
