Power Window Main Switch/Power Outer Mirror Switch/Retractable Outer Mirror Switch

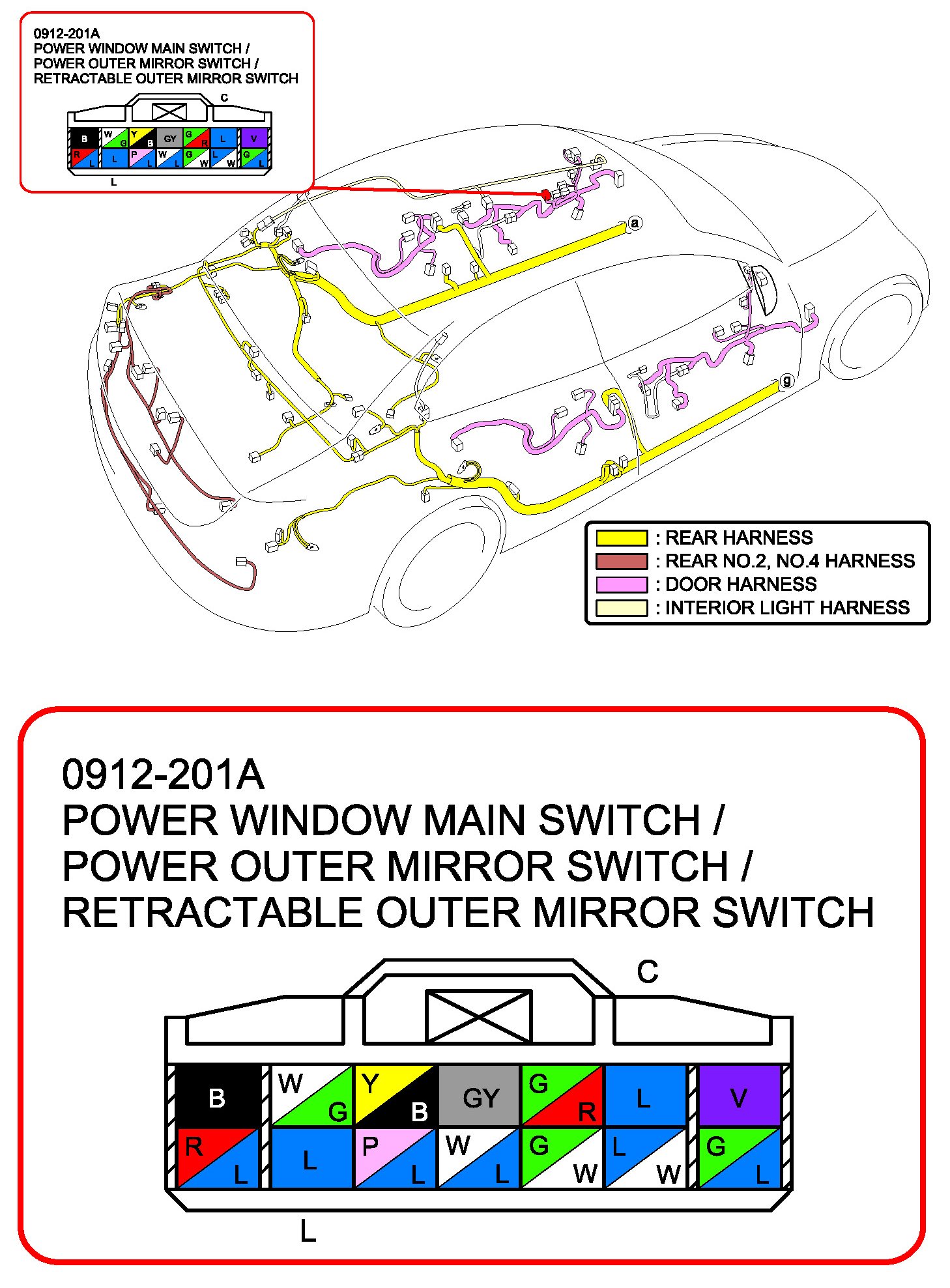

Power Window Main Switch/Power Outer Mirror Switch/Retractable Outer Mirror Switch (Without Retractable Outer Mirror):



Power Window Main Switch (Without Retractable Outer Mirror):



Power Window Subswitch RF (Without Retractable Outer Mirror):



Power Window Subswitch LR (Without Retractable Outer Mirror):



Power Window Subswitch RR (Without Retractable Outer Mirror):

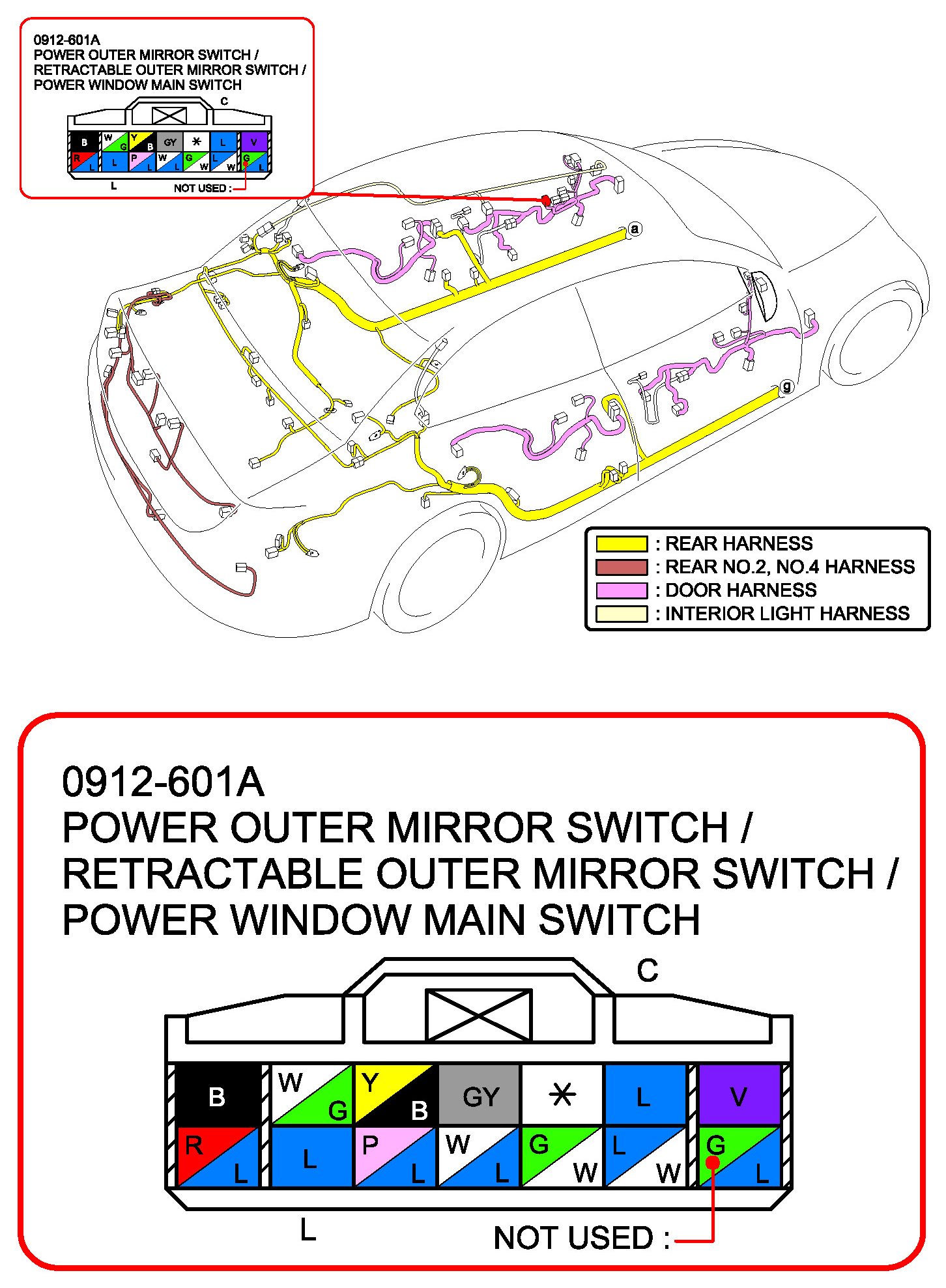

Power Outer Mirror Switch/Retractable Outer Mirror Switch/Power Window Main Switch (With Retractable Outer Mirror):



Power Window Main Switch (With Retractable Outer Mirror):



Power Window Subswitch RF (With Retractable Outer Mirror):



Power Window Subswitch LR (With Retractable Outer Mirror):



Power Window Subswitch RR (With Retractable Outer Mirror):
