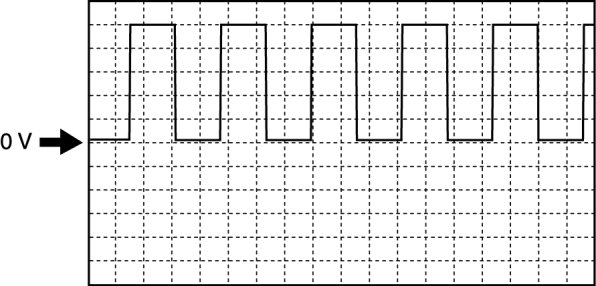

Oscilloscope Patterns and Waveforms

TCM INSPECTION [FS5A-EL]

VSS





- TCM terminals
2P (+)-body GND (-)
- Oscilloscope setting
1 V/DIV (Y), 2.5 ms/DIV (X), DC range
- Test Condition
Vehicle speed at 30 km/h {19 mph}.
