Flexplate

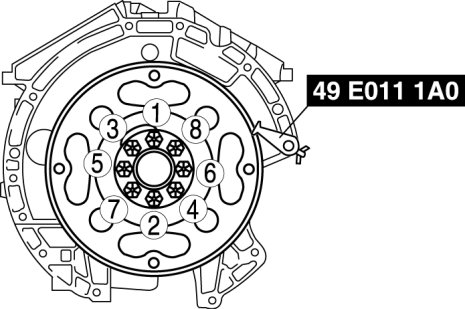

AW6A-EL





Tighten the new drive plate mounting bolts in two or three steps in the order shown.

Tightening torque 73-87 Nm {7.5-8.8 kgf-m, 53.9-64.1 ft-lbf}

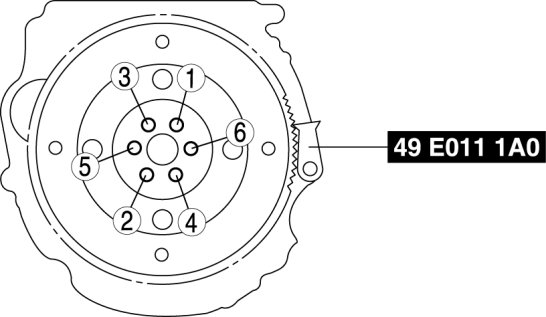

FS5A-EL





Tighten the drive plate mounting bolts in two or three steps in the order as shown in the figure.

Tightening torque 108-116 Nm {11.1-11.8 kgf-m, 80-85 ft-lbf}
