Brakes Technical Data

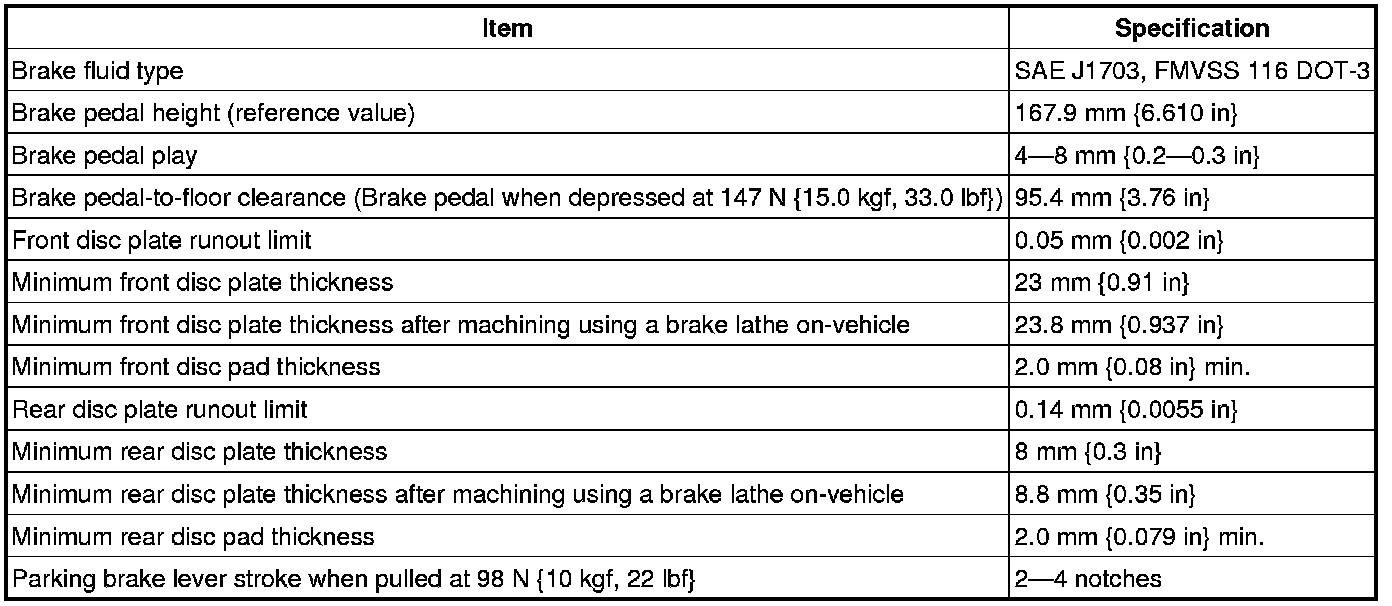

BRAKES TECHNICAL DATA
Standard power brake unit non-servo operation
Standard power brake unit servo operation
