Oil Pan, Engine

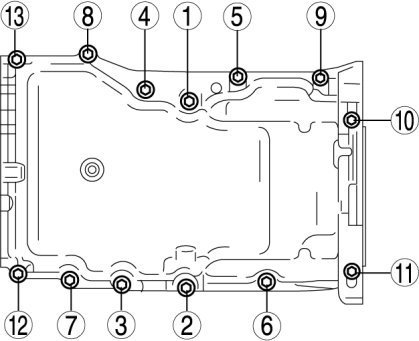

Tighten the bolts in the order shown in the figure.





Tightening torque 17-23 Nm {1.8-2.3 kgf-m, 13-16 ft-lbf}

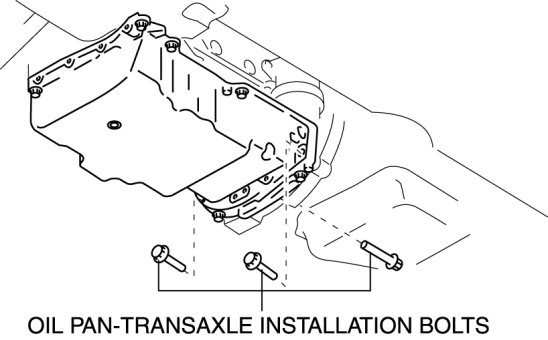

Tighten the oil pan-transaxle installation bolts.





Tightening torque
MTX: 37-52 Nm {3.8-5.3 kgf-m, 28-38 ft-lbf}
ATX: 38-52 Nm {3.9-5.3 kgf-m, 29-38 ft-lbf}
