Oil Pump, Engine

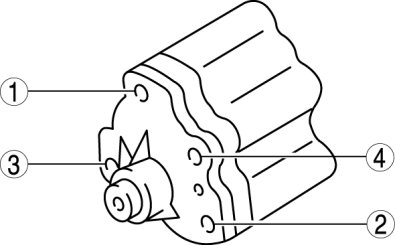

Tighten the oil pump bolts in two steps in the order shown in the figure.





Tightening torque
Step 1: 8-12 Nm {82-122 kgf-cm, 71-106 in-lbf}
Step 2: 17-23 Nm {1.8-2.3 kgf-m, 13-16 ft-lbf}
