Cylinder Head

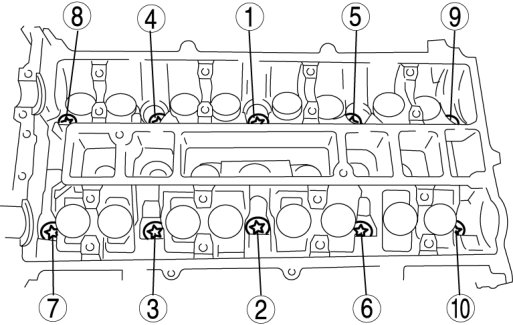

Tighten the cylinder head bolts in the order shown in the following 5 steps using the SST (49 D032 316).





Tightening torque
Step 1 3-11 Nm {31-112 kgf-cm, 27-97 in-lbf}
Step 2 13-17 Nm {133-173 kgf-cm, 116-150 in-lbf}
Step 3 43-47 Nm {4.4-4.7 kgf-m, 32-34 ft-lbf}
Step 4 88-92°
Step 5 88-92°
