Technical Data G66M-R
>>
Oil Clearance
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Oil Clearance
Oil Clearance
1st and 2nd gear

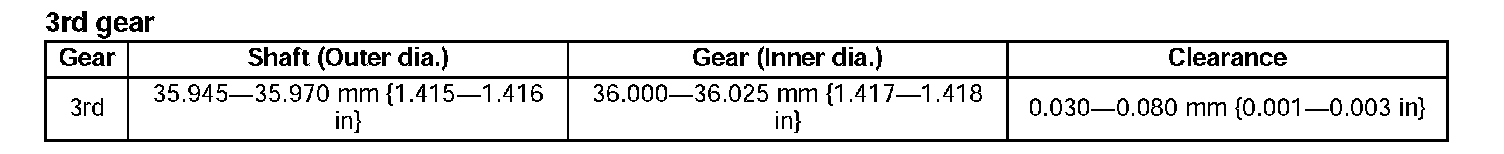

3rd gear

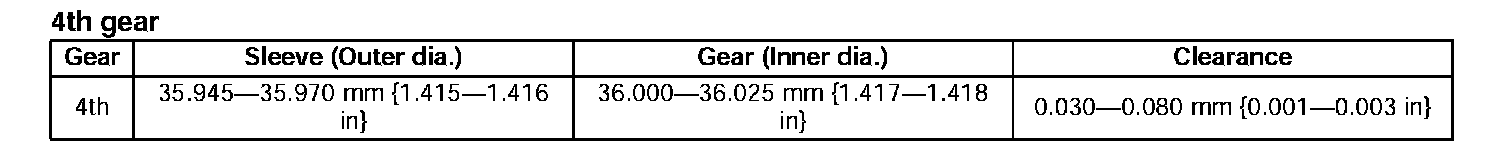

4th gear

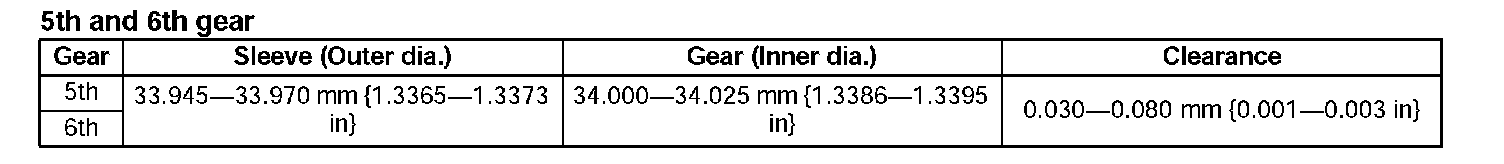

5th and 6th gear
