Programming and Relearning

PERSONALIZATION FEATURES SETTING PROCEDURE

Advanced Keyless Entry And Push Button Start System

NOTE:
- Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the CUSTOMIZED FUNCTION SETTING PROCEDURE.

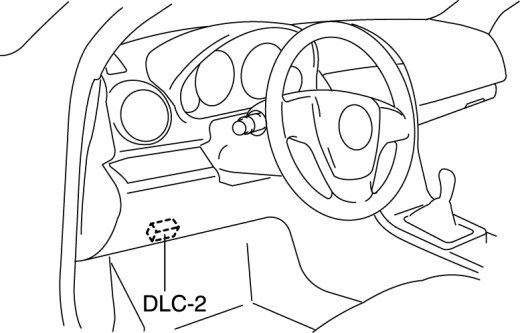

1. Connect the M-MDS to the DLC-2.






2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

- Select the "Module Programming"

3. Then, select items from the screen menu in the following order.

- Select "Programmable Parameters"
- Select "RKE"

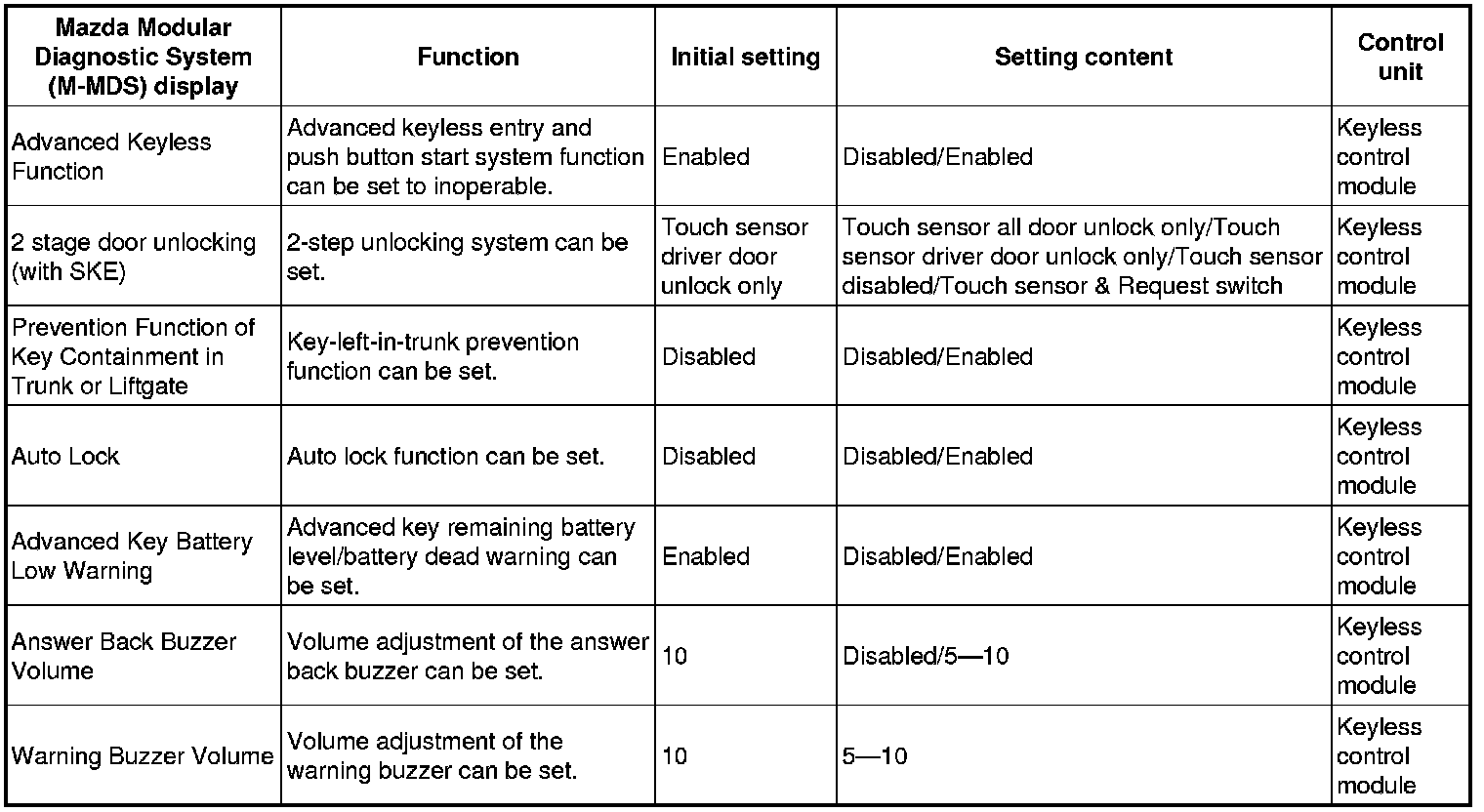

4. Select the item name, and then select option.






Keyless Entry Start System

- For the keyless entry system, refer to the control system personalization features setting. Programming and Relearning

Power Door Lock System

- For the power door lock system, refer to the control system personalization features setting. Programming and Relearning
