TCM Removal/Installation [FS5A-EL]




TCM REMOVAL/INSTALLATION [FS5A-EL]

1. Disconnect the negative battery cable.

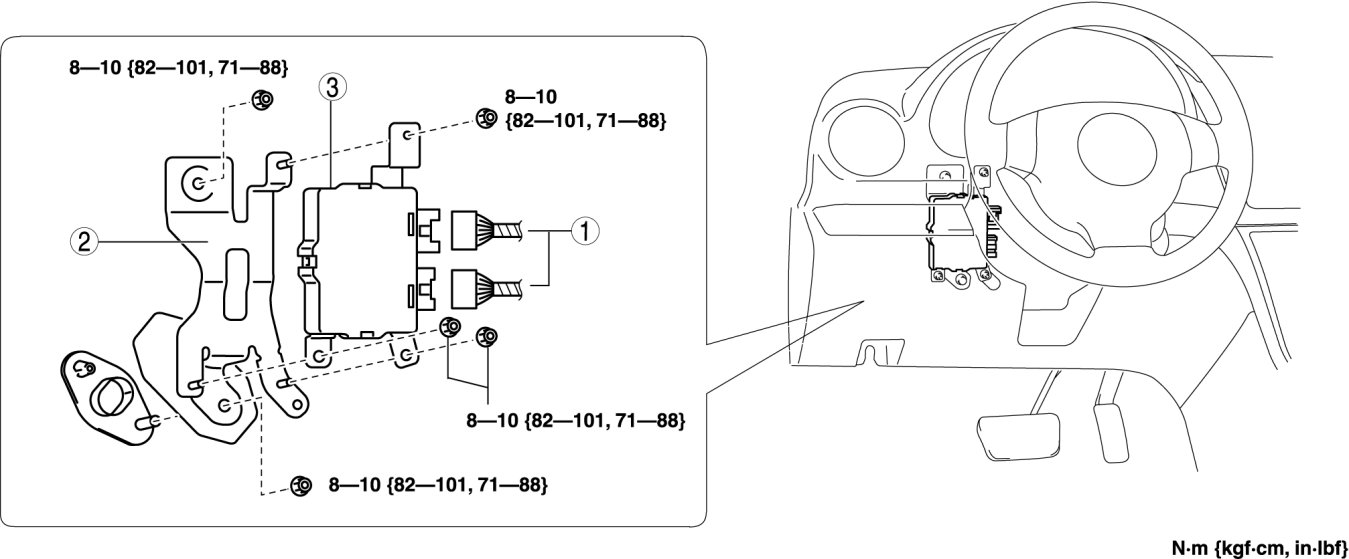

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
