Auto Light/Wiper Control Module Removal/Installation - Lighting Systems

AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION

CAUTION:
- When replacing the auto light/wiper control module, the configuration procedure must be performed before removing the auto light/wiper control module. Replacing the auto light/wiper control module without performing the configuration procedure will result in system malfunction.

NOTE:
- Auto light-off system are integrated with the auto light/wiper control module.

1. Perform the auto light/wiper control module configuration when replacing it. Auto Light/Wiper Control Module Configuration

2. Disconnect the negative battery cable.

3. Remove the dashboard under cover (Driver side). Dashboard Under Cover Removal/Installation

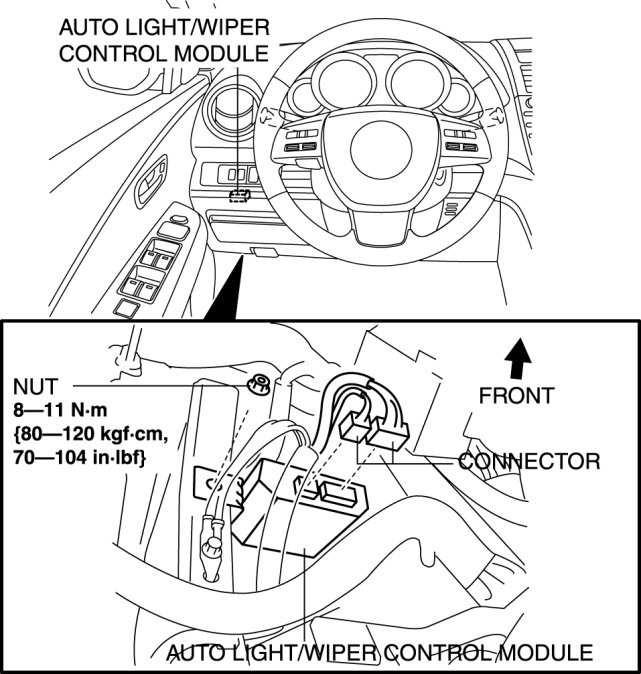

4. Remove the nut.






5. Disconnect the connectors.

6. Remove the auto light/wiper control module.

7. Install in the reverse order of removal.
