Transmission/Transaxle Technical Data




TRANSMISSION/TRANSAXLE TECHNICAL DATA

Automatic Transaxle [FS5A-EL]

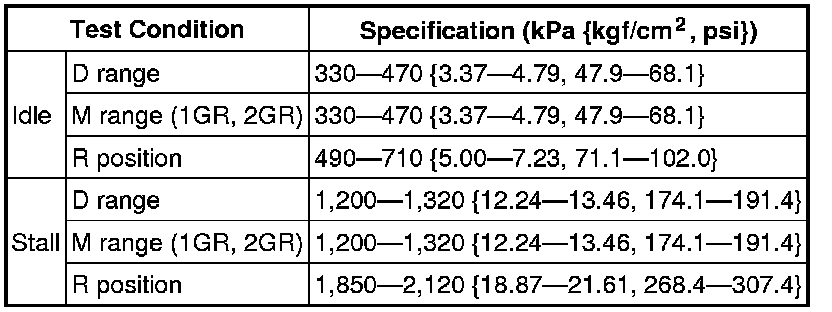

Line Pressure

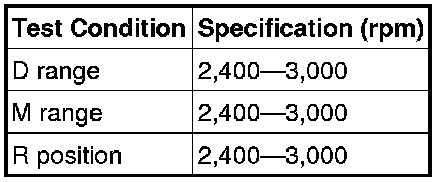

Stall Speed

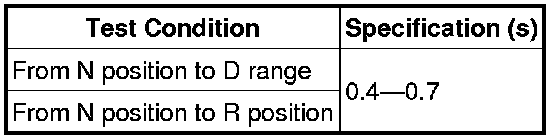

Time Lag





Automatic Transaxle [AW6A-EL]

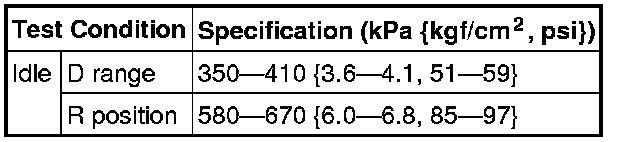

Line pressure

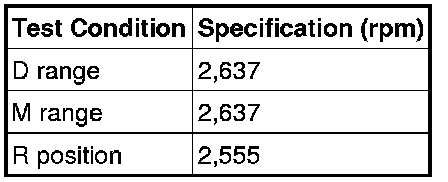

Stall speed

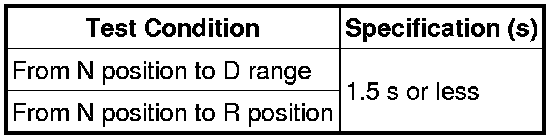

Time Lag
