Transmission/Transaxle Technical Data AW6A-El

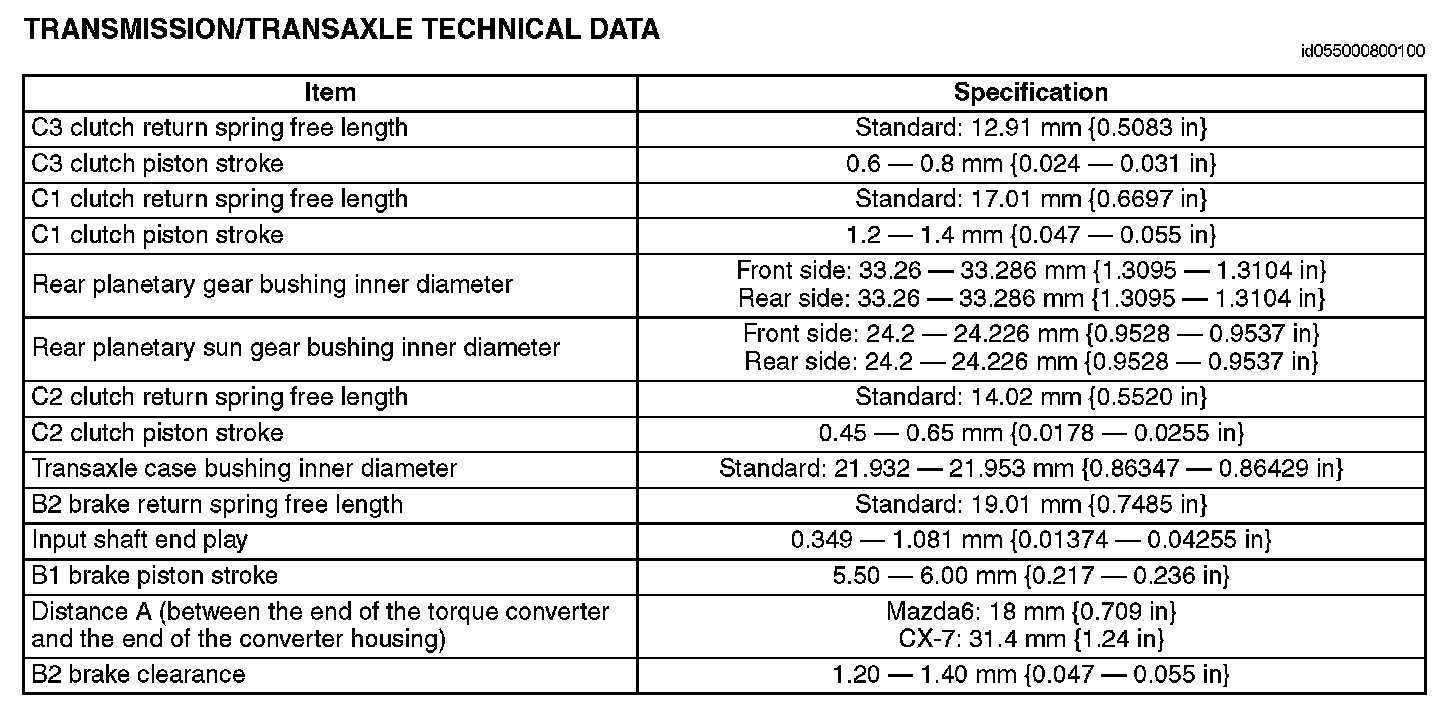

Transmission/Transaxle Technical Data
Transmission/Transaxle Technical Data:
Counter drive gear starting and rotating torque
