Exhaust Manifold

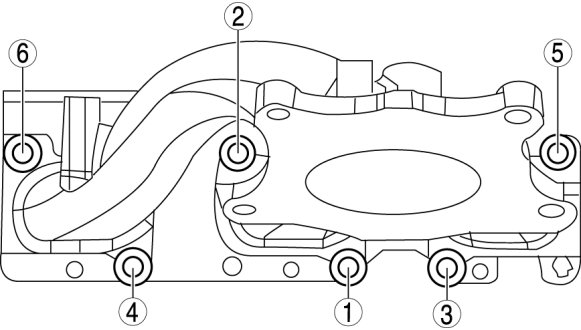

Tighten the exhaust manifold (RH) installation nuts in the order shown in the figure.





Tightening torque 22-28 Nm {2.3-2.8 kgf-m, 17-20 ft-lbf}

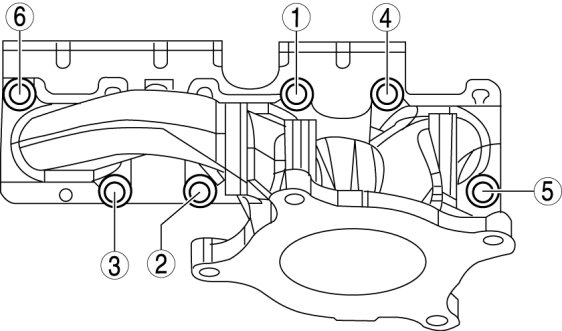

Tighten the exhaust manifold (RH) installation nuts in the order shown in the figure.





Tightening torque 22-28 Nm {2.3-2.8 kgf-m, 17-20 ft-lbf}
