Timing Cover

Timing Cover

CAUTION:

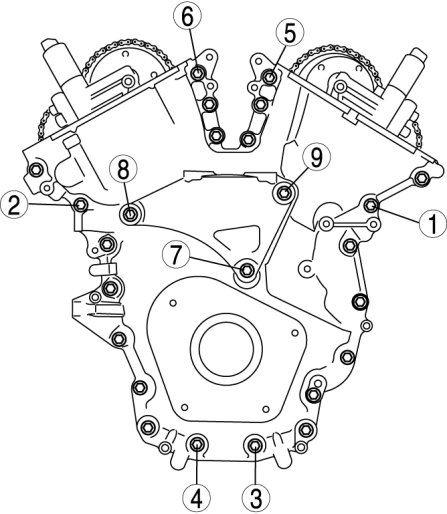

Install the engine front cover and No.3 engine mount bracket bolts within 10 min of applying the silicone sealant.

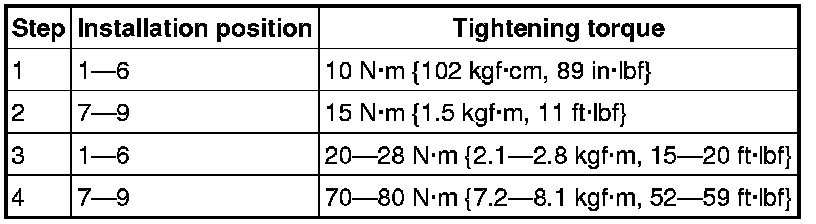

Tightening torque

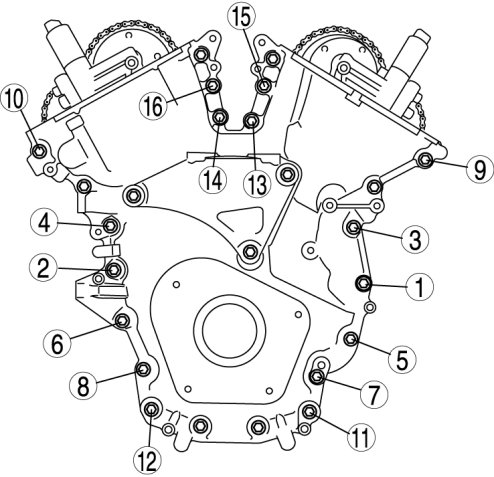

Tighten the engine front cover bolts in the order in 2 steps in the order shown in the figure.

CAUTION:
Install the engine front cover bolts within 60 min of applying the silicone sealant.
