Combined Sensor Removal/Installation

CAUTION:
  • The internal parts of the combined sensor could be damaged if dropped. Be careful not to drop the combined sensor. Replace the combined sensor if it is subjected to an impact. Also, do not use an impact wrench or other similar air tools when removing/installing the sensor.
  1. Remove the following parts:
    1. Upper panel. See UPPER PANEL REMOVAL/INSTALLATION .
    2. Shift knob (MTX). See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .
    3. Shift panel. See SHIFT PANEL REMOVAL/INSTALLATION .
    4. Decoration panel. See DECORATION PANEL REMOVAL/INSTALLATION .
    5. Center panel lower. See CENTER PANEL LOWER REMOVAL/INSTALLATION .
    6. Rear console. See REAR CONSOLE REMOVAL/INSTALLATION .
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

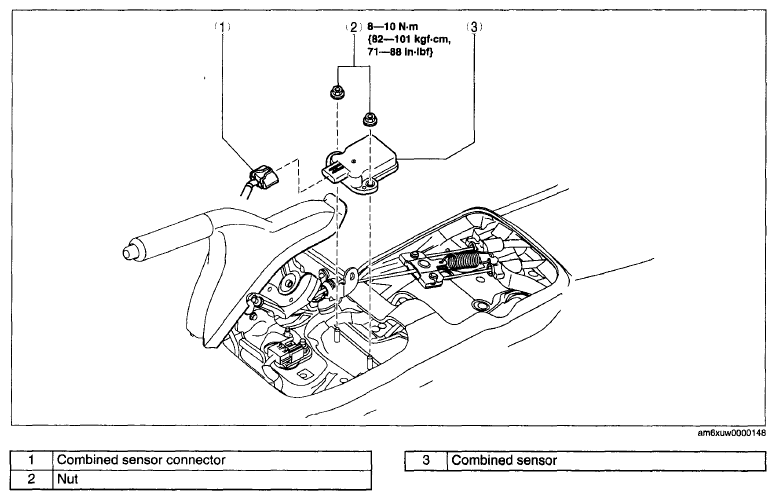

    Fig 1: Identifying Combined Sensor Removal Order
    G06205588Courtesy of MAZDA MOTORS CORP.
