Brake Pipe Installation Note

  1. Align the marks made before removal and install the brake pipe into the DSC HU/CM referring to the figure.

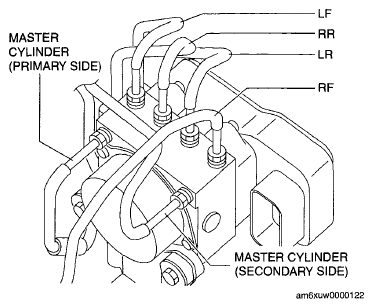

    Fig 1: Identifying DSC HU/CM Brake Pipe
    G06205561Courtesy of MAZDA MOTORS CORP.
