Camshaft Position (CMP) Sensor Removal/Installation [MZI-3.7]

Disconnect the negative battery cable.
Remove the following part for easier access.
- Remove the resonance chamber and air cleaner assy. See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .
Disconnect the CMP sensor connector
Remove the CMP sensor.

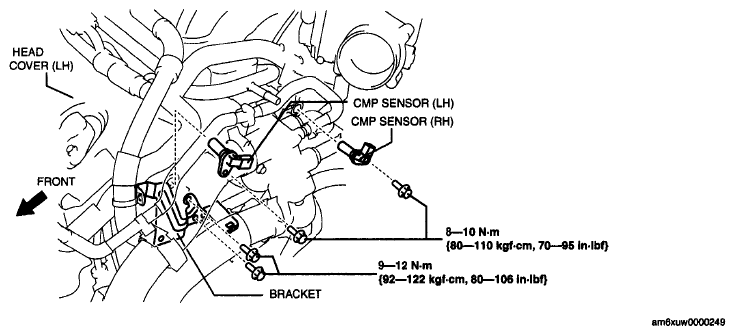

Fig 1: Camshaft Position Sensor And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Lubricate the CMP O-ring seal with clean engine oil.
Install in the reverse order of removal.
