Engine Control System (MZI-3.7)
>>
Control System Diagram [MZI-3.7]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System Diagram [MZI-3.7]

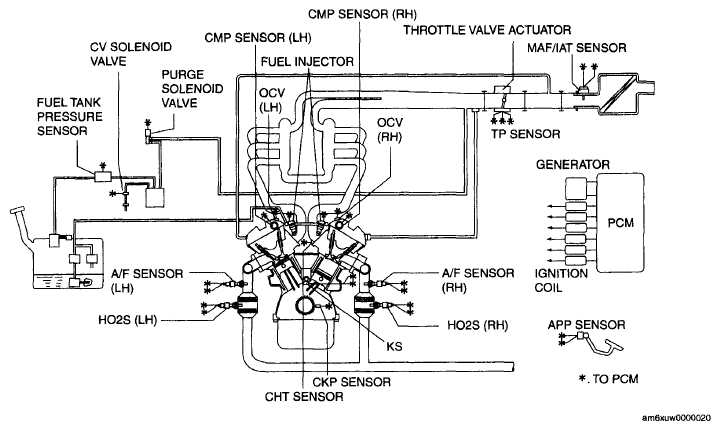

Fig 1: Control System Diagram [MZI-3.7]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
