Control System Location Index [MZI-3.7]

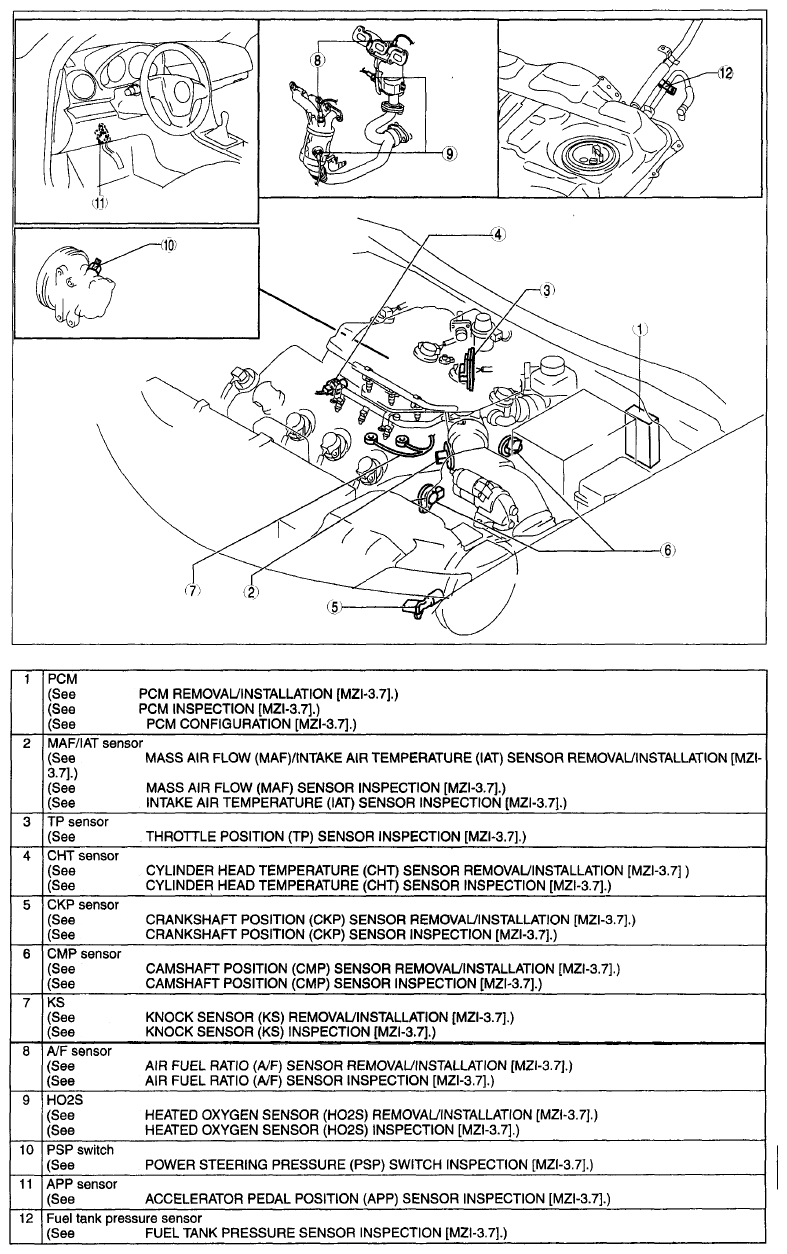

Fig 1: Identifying Control System Location [MZI-3.7]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
