Total Toe-in Adjustment

Loosen the locknut of the lateral link.

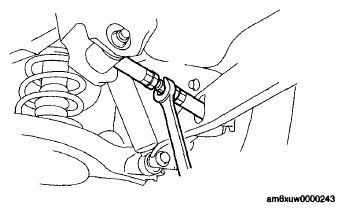

Fig 1: Loosening Locknut Of Lateral Link
Courtesy of MAZDA MOTORS CORP.
Adjust the toe-in turning the adjusting link.
Total toe-in
- 2±4 mm {0.08±0.16 in}
  NOTE:
  - Toe change amount: 0°21'/one rotation

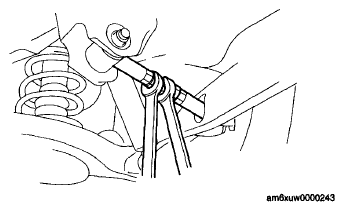

    Fig 2: Adjusting Toe-In Turning Adjusting Link
    Courtesy of MAZDA MOTORS CORP.
Tighten the locknut.
Tightening torque

61-98 N.m {6.3-9.9 kgf.m, 45-72 ft.lbf}

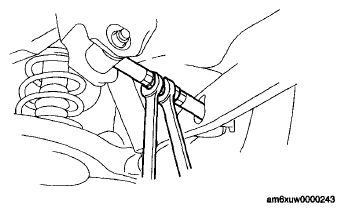

Fig 3: Tightening Locknut
Courtesy of MAZDA MOTORS CORP.
