Cruise Control Switch Removal / Installation

CRUISE CONTROL SWITCH REMOVAL / INSTALLATION









1. Remove the steering wheel. See Service and Repair.

2. Remove the two screws and steering wheel rear cover.

3. Remove the ribbon harness from the clips.

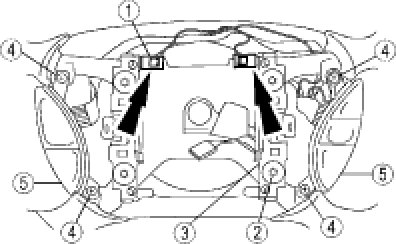

4. Remove in order shown in figure.

5.
NOTE:Install ground eyelet under upper screw on right-hand switch. Position switch(es) on steering wheel and install four Phillips-head attaching screws.Install in reverse order of removal.
Tightening torque: Horn switch screws
6.5-7.5 Nm {0.66-0.76 kgf-m, 4.8-5.5 ft-lbf}
