Speed Control Set/Resume Switch

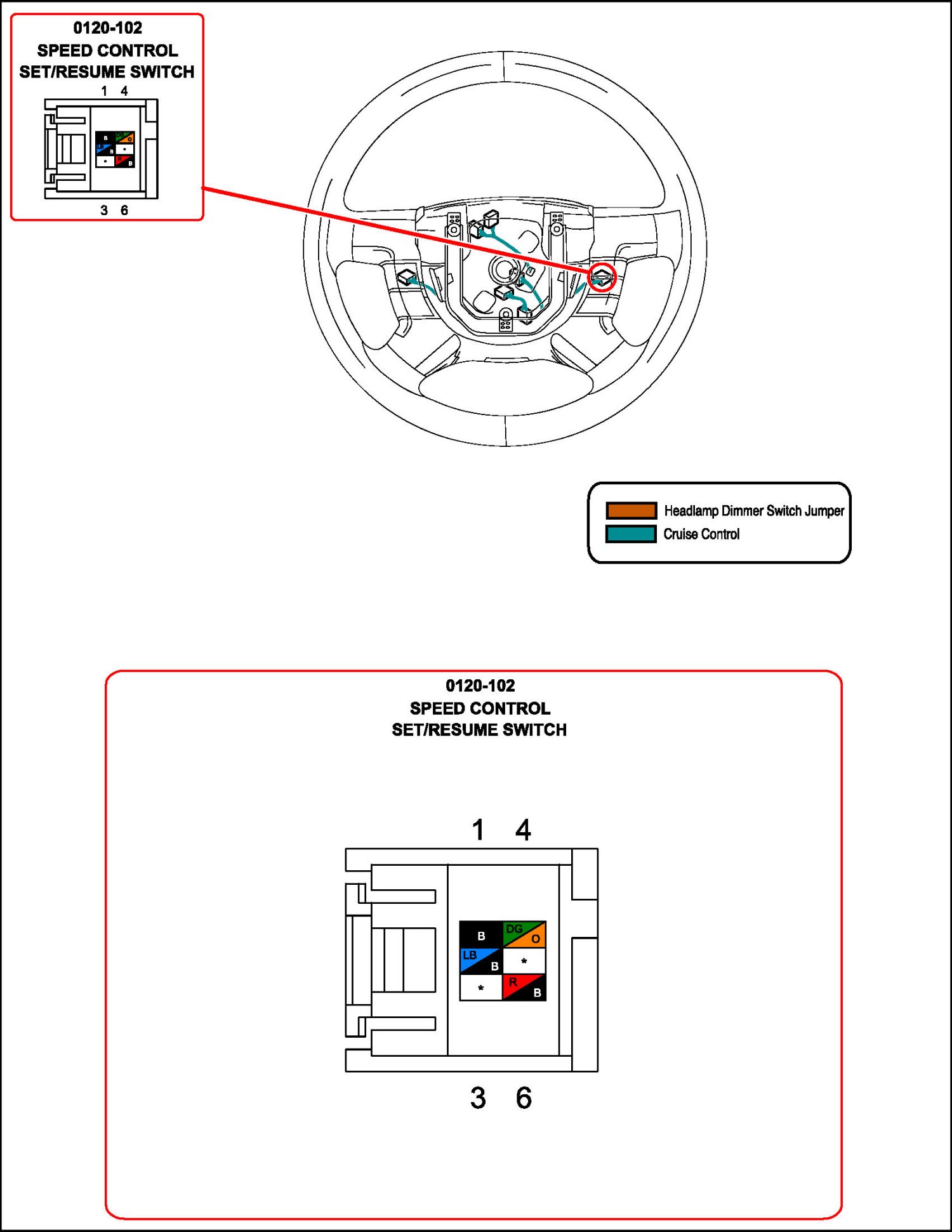

Speed Control Set/Resume Switch:

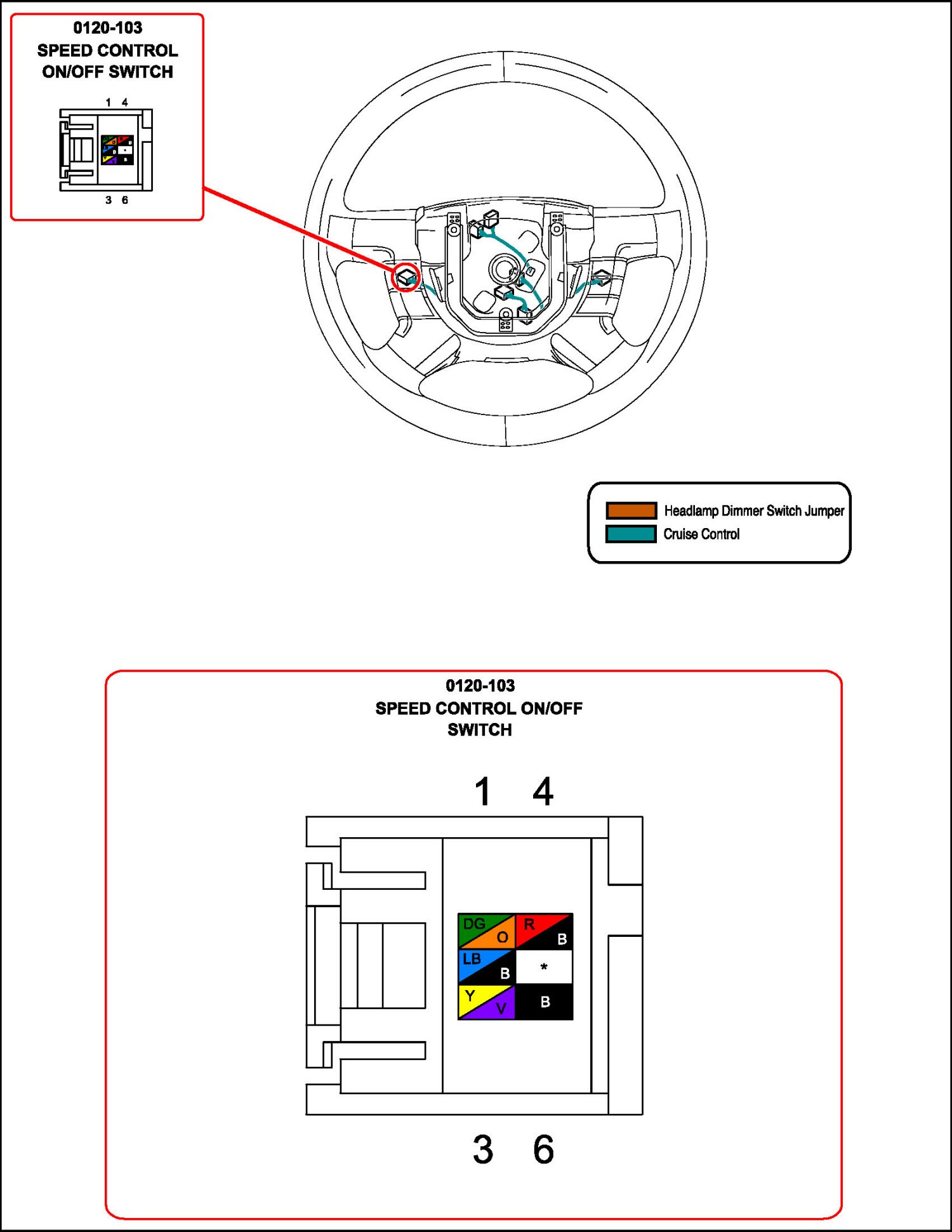

Speed Control ON/OFF Switch:

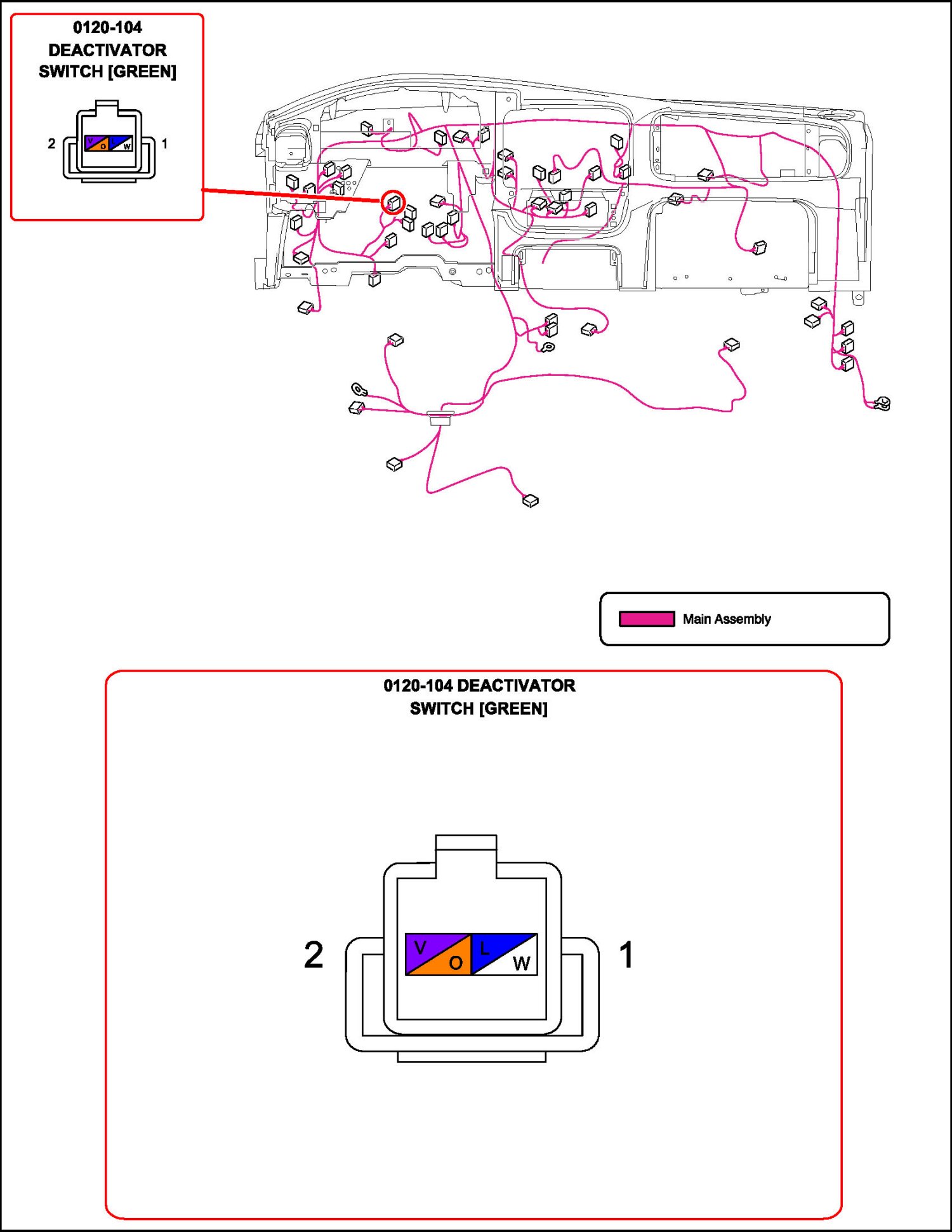

Deactivator Switch:
