Air Flow Meter/Sensor: Testing and Inspection

MASS AIR FLOW (MAF) SENSOR

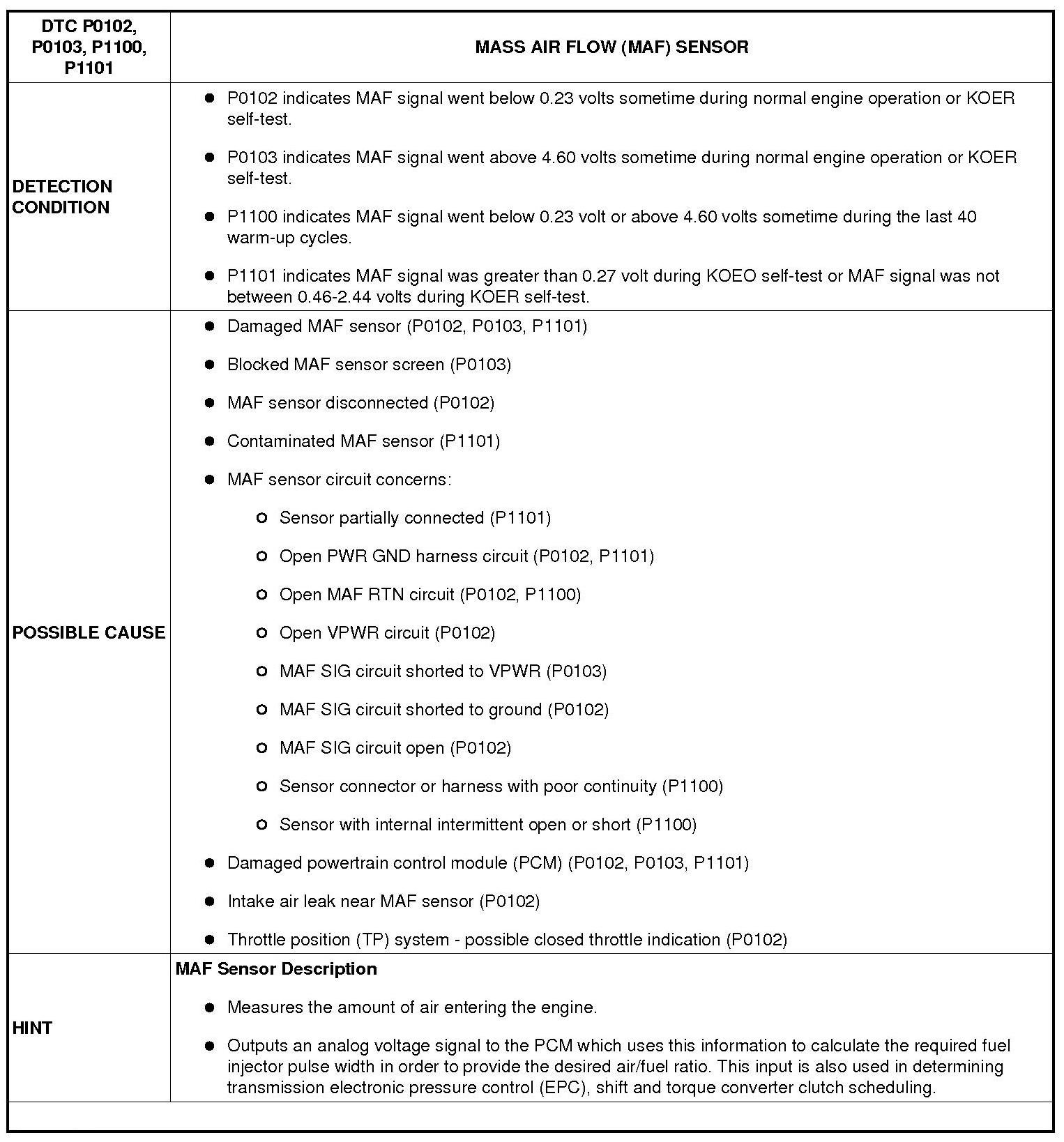

Detection Condition/Possible Cause:

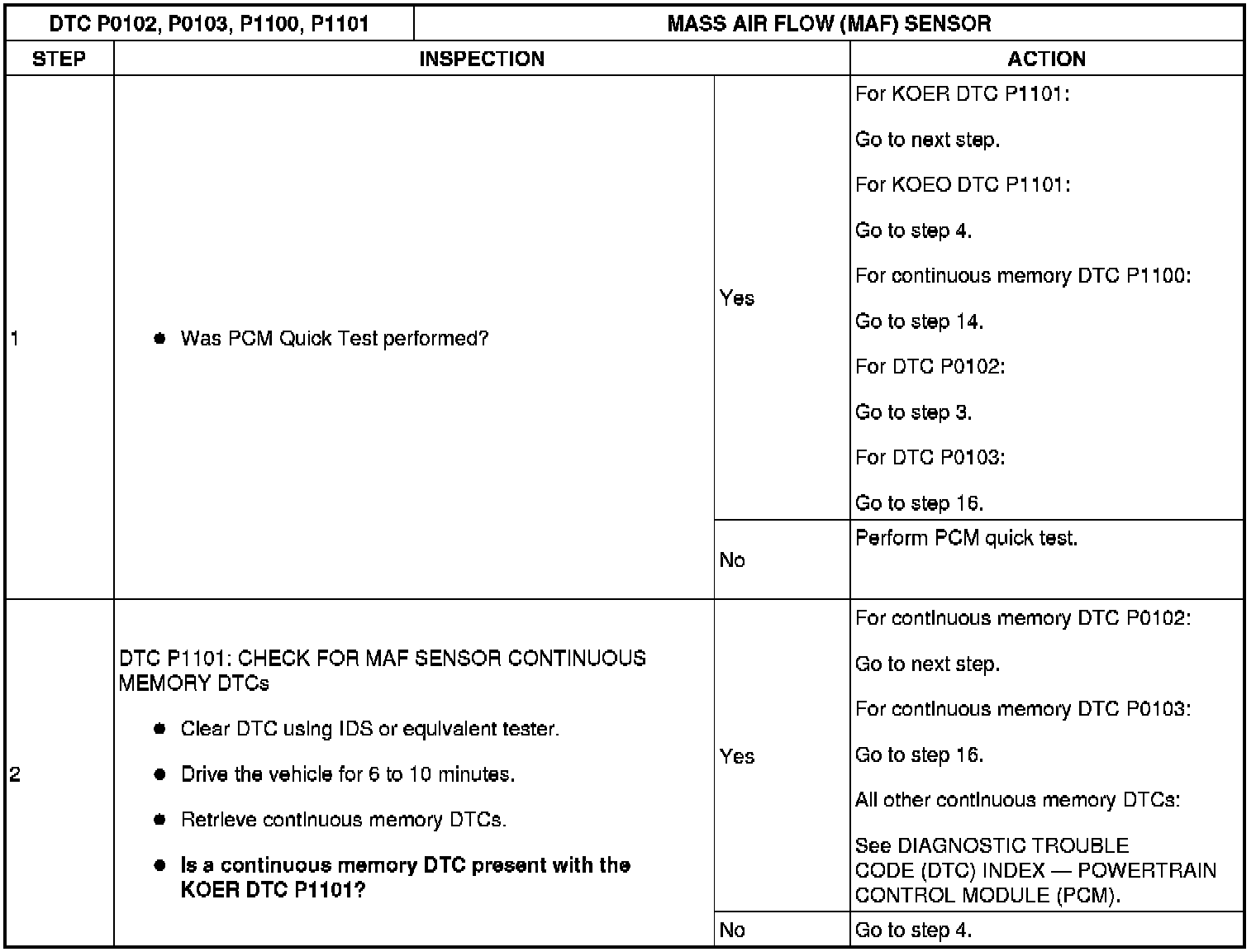

Step 1-Step 2:

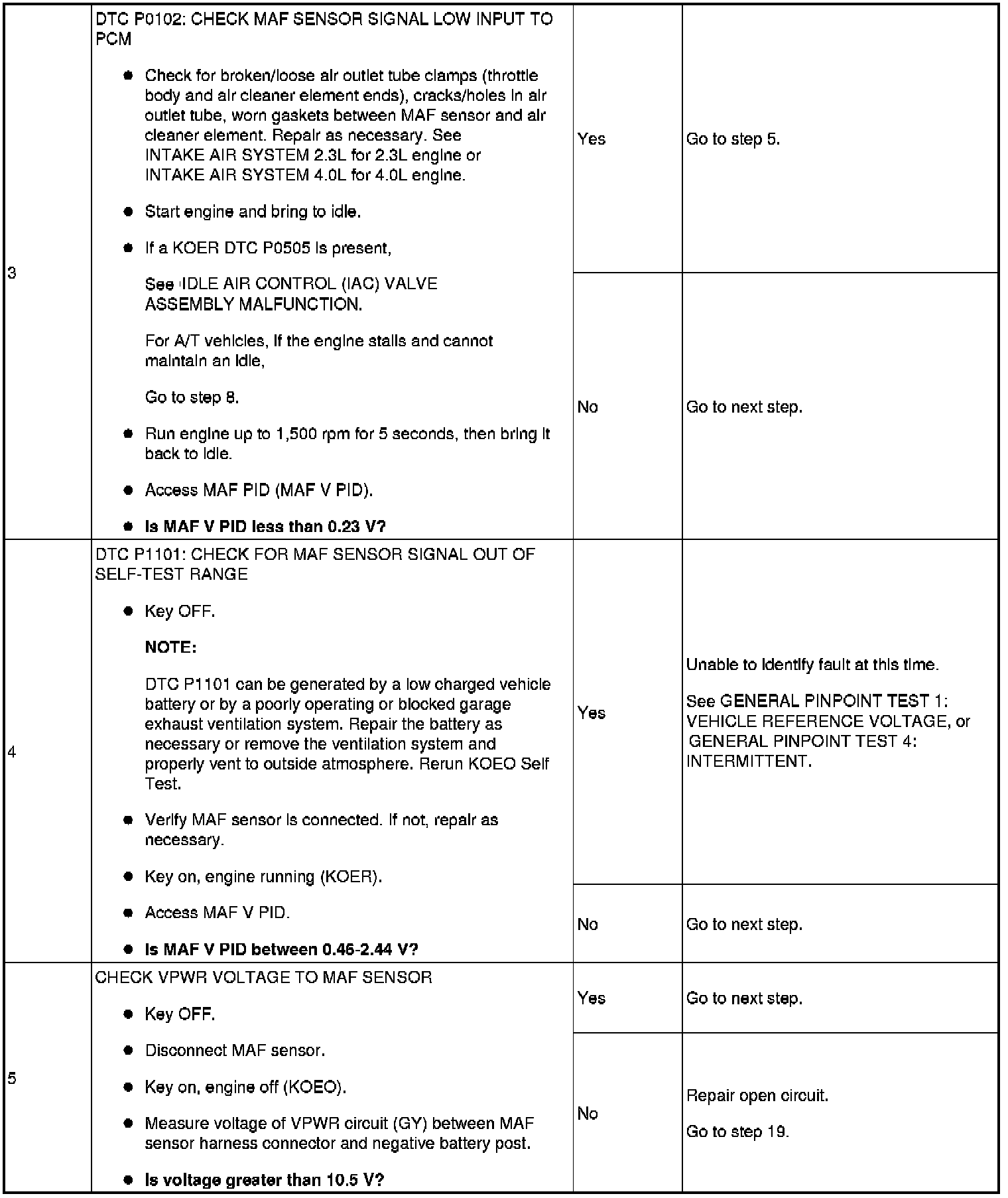

Step 3-Step 5:

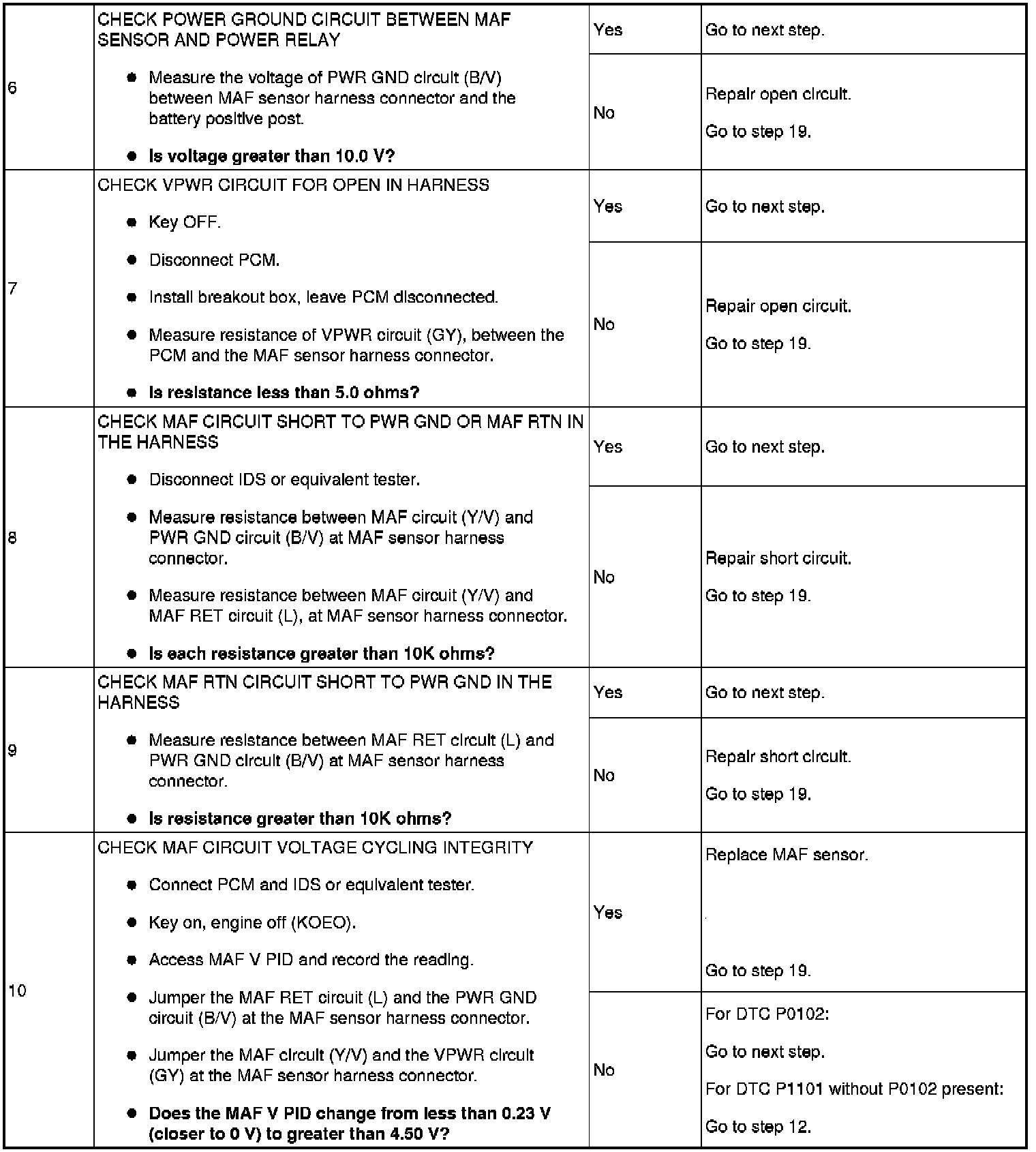

Step 6-Step 10:

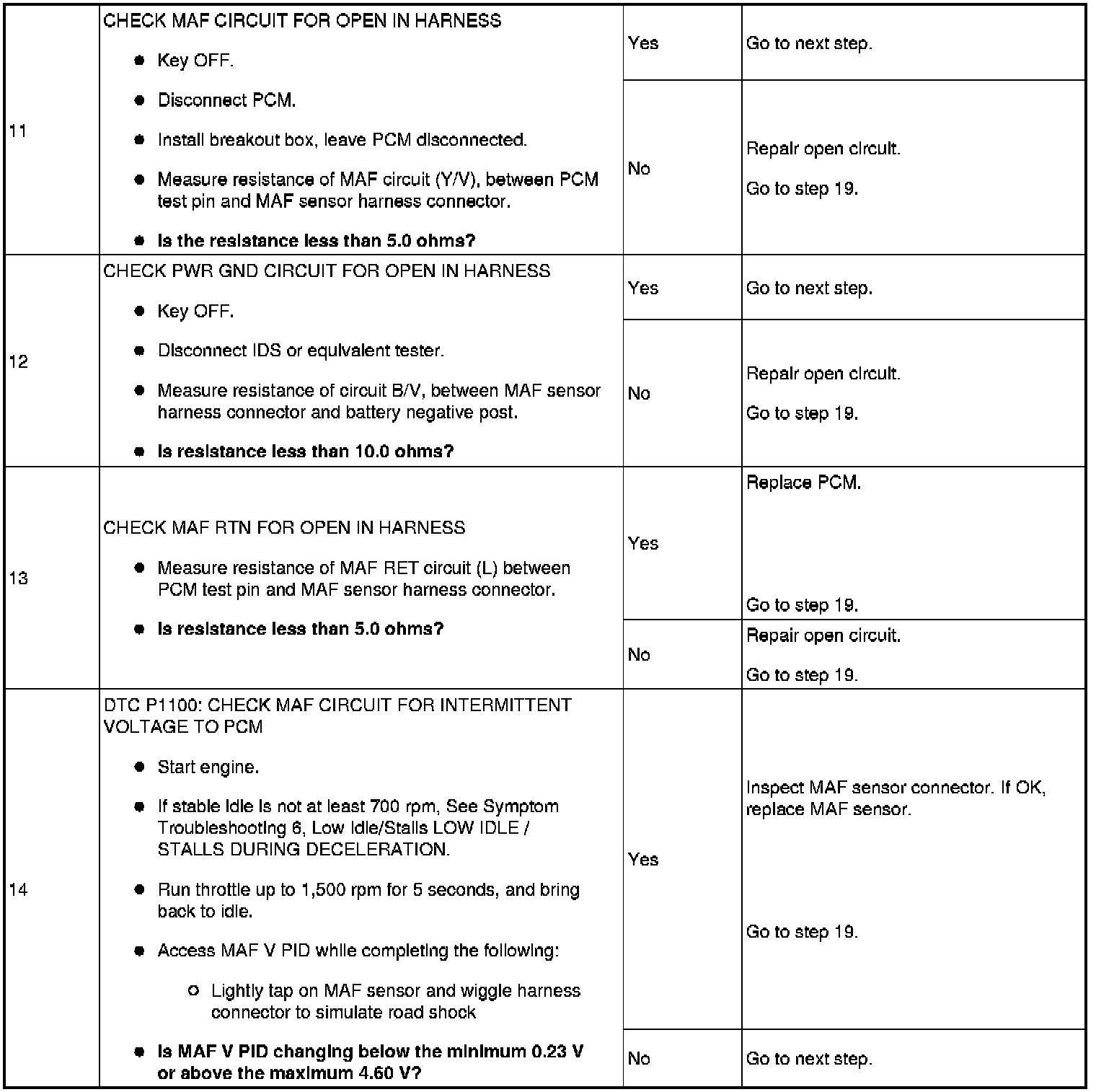

Step 11-Step 14:

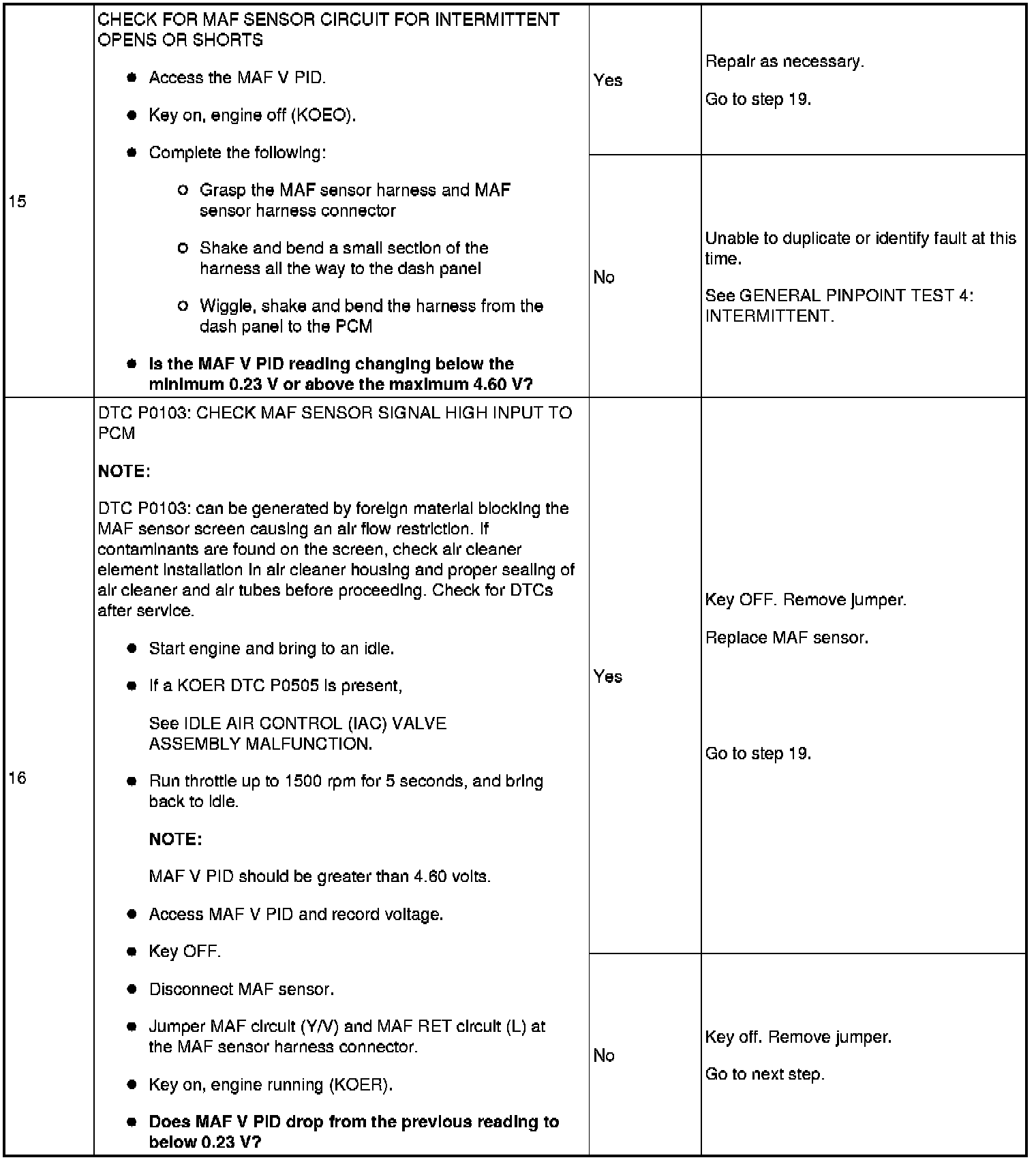

Step 15-Step 16:

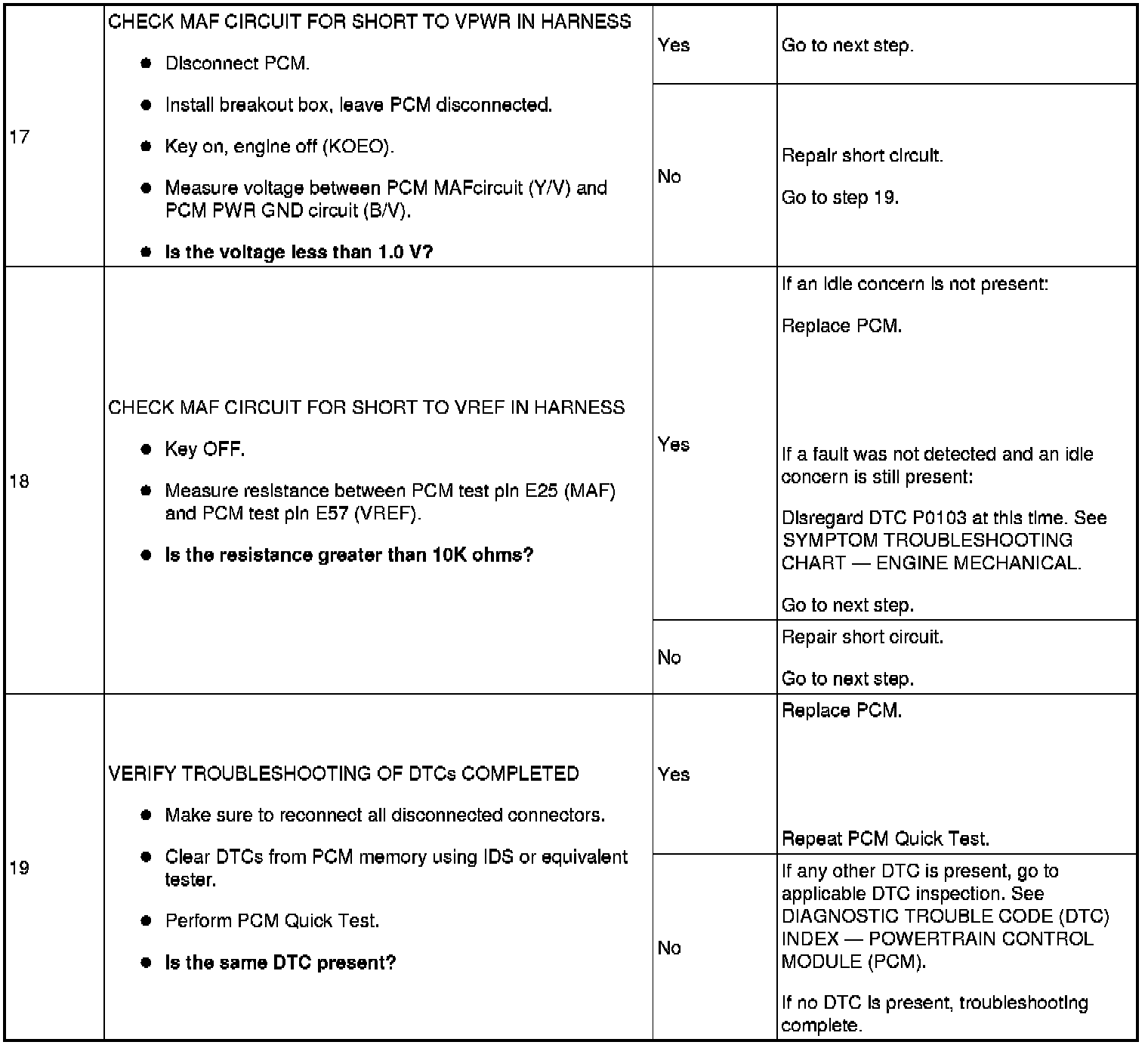

Step 17-Step 19:
