Engine Temperature Sensor: Testing and Inspection
INTAKE AIR TEMPERATURE (IAT) SENSOR AND ENGINE COOLANT TEMPERATURE (ECT) / CYLINDER HEAD TEMPERATURE (CHT) SENSOR

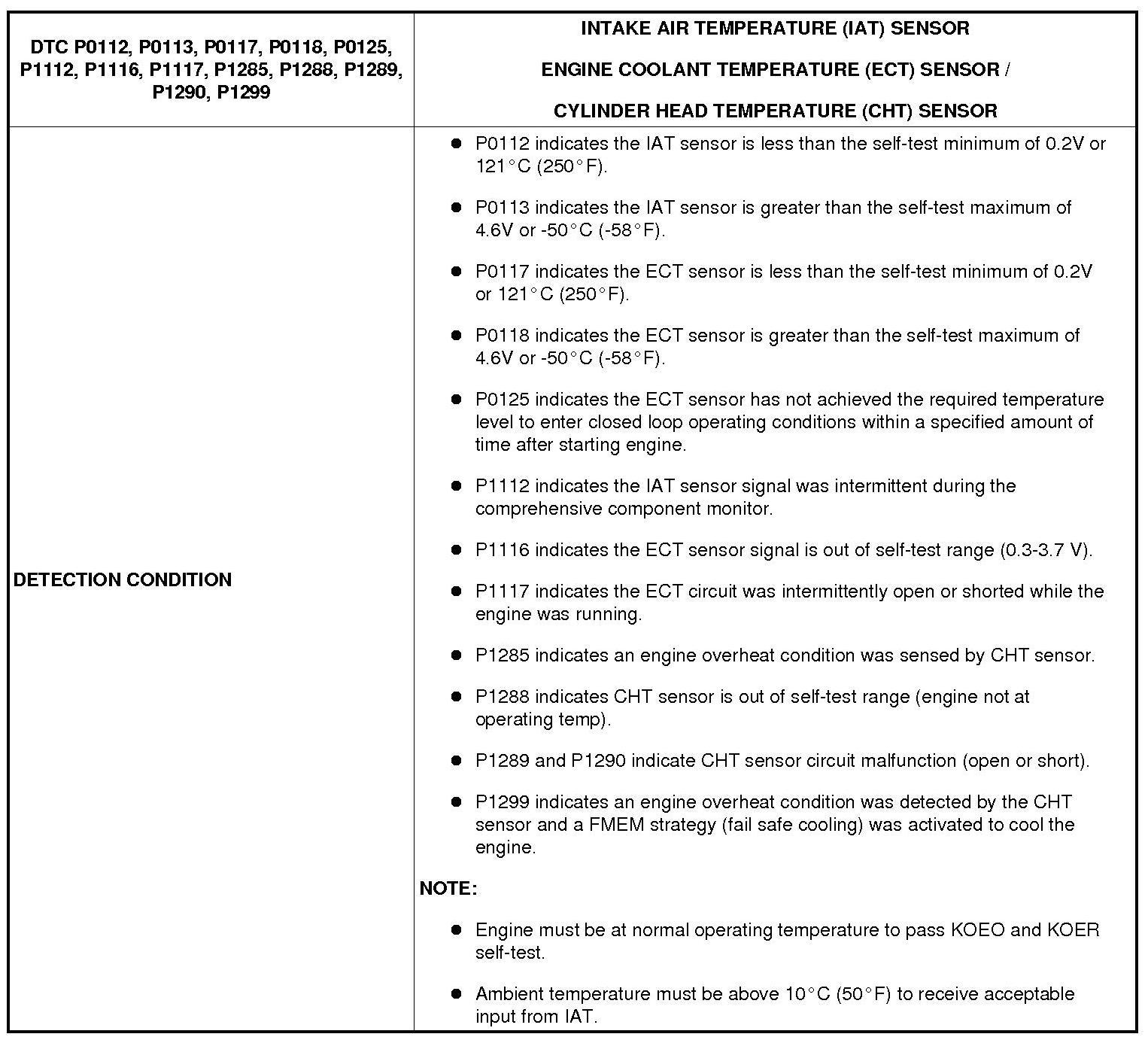

Detection Condition:

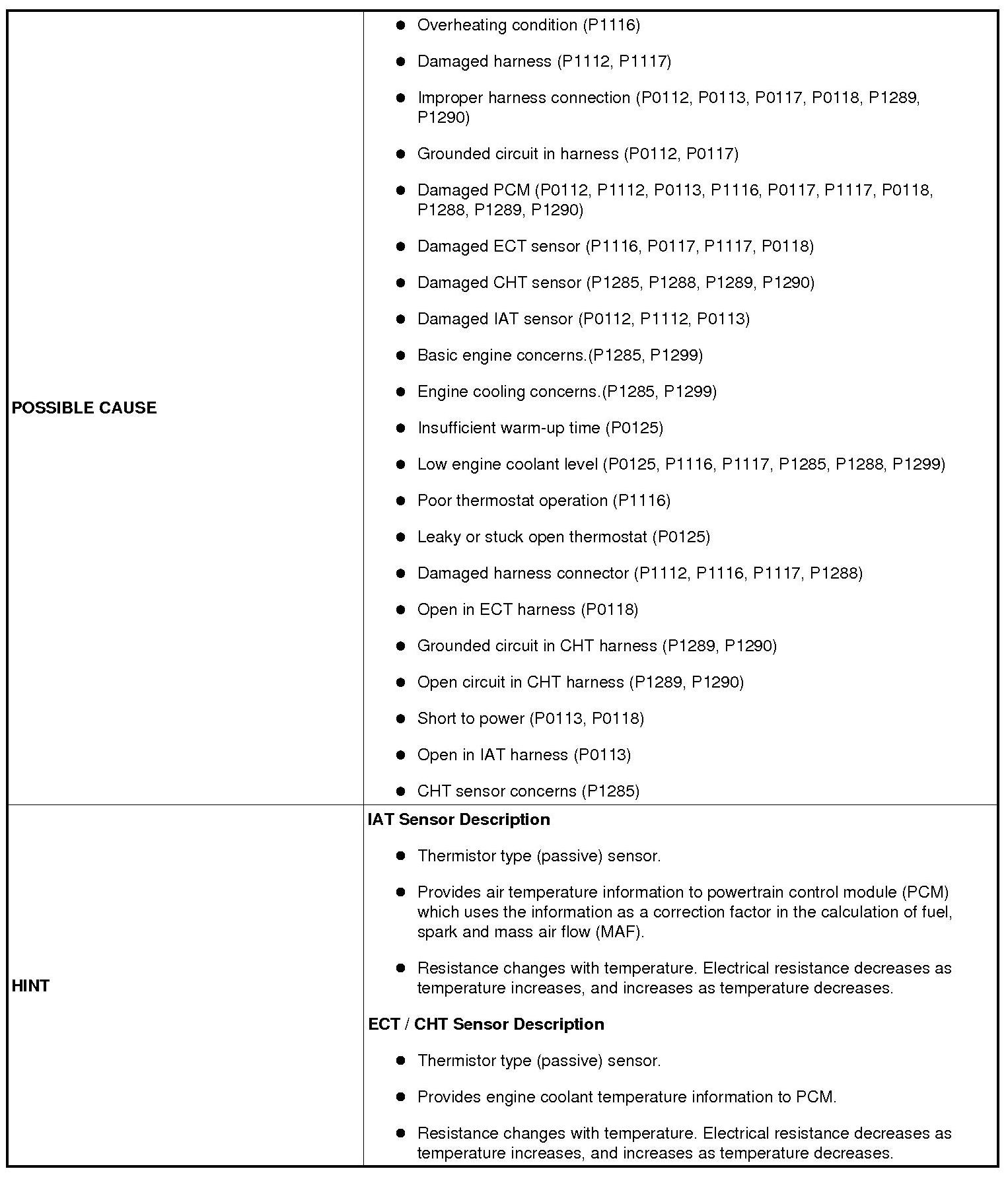

Possible Cause (Part 1):
Possible Cause (Part 2):
Possible Cause (Part 3):
Possible Cause (Part 4):

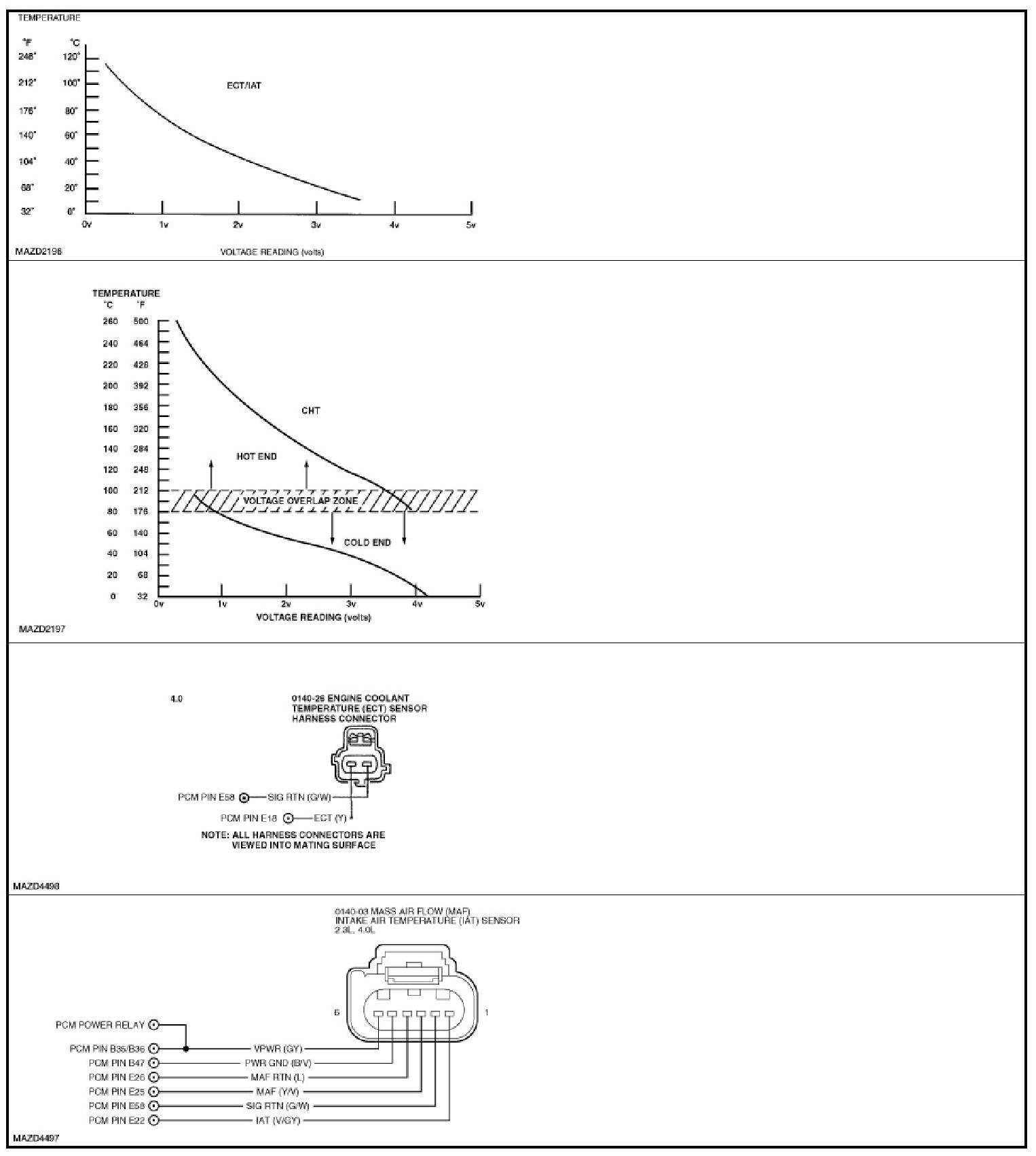

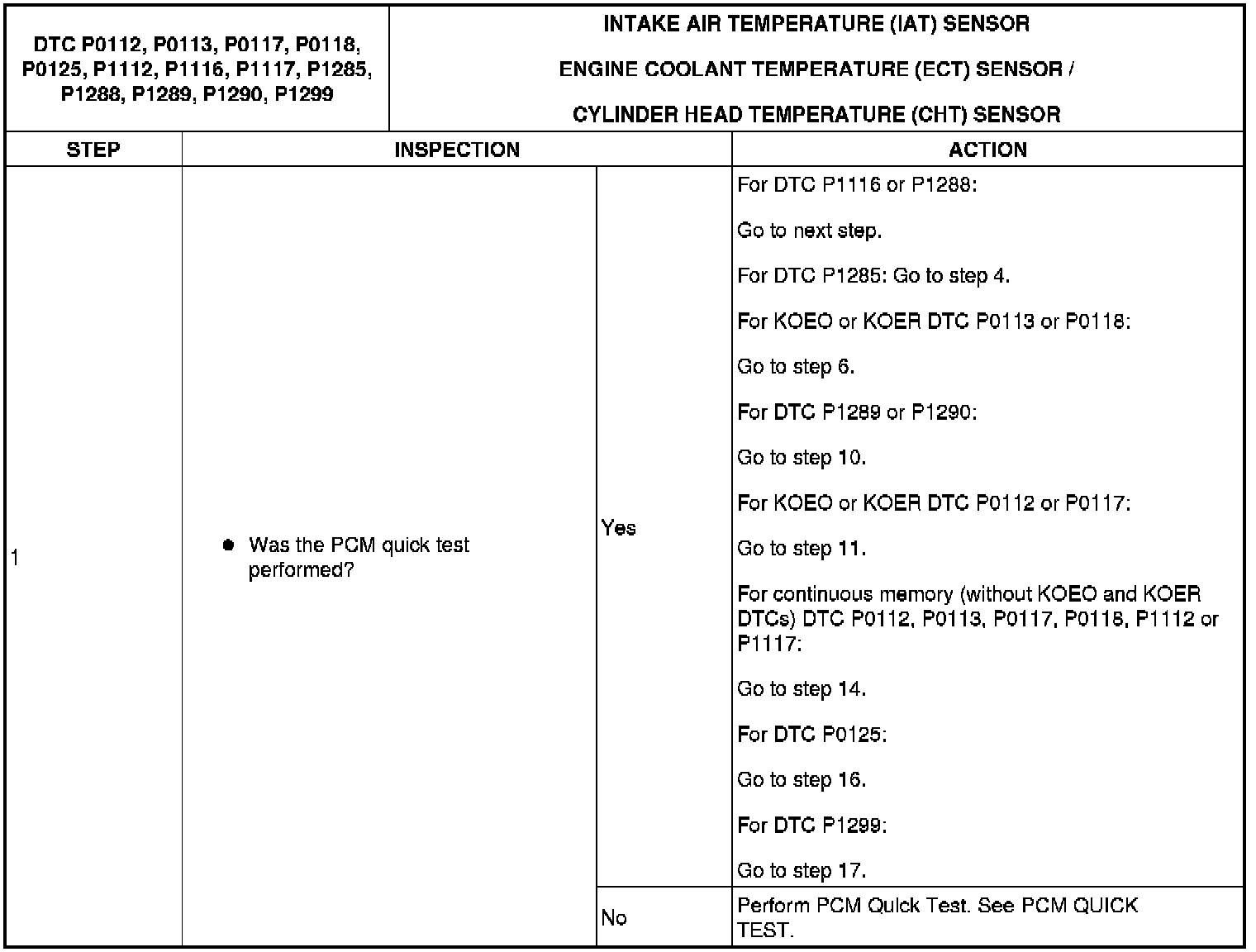

Step 1:

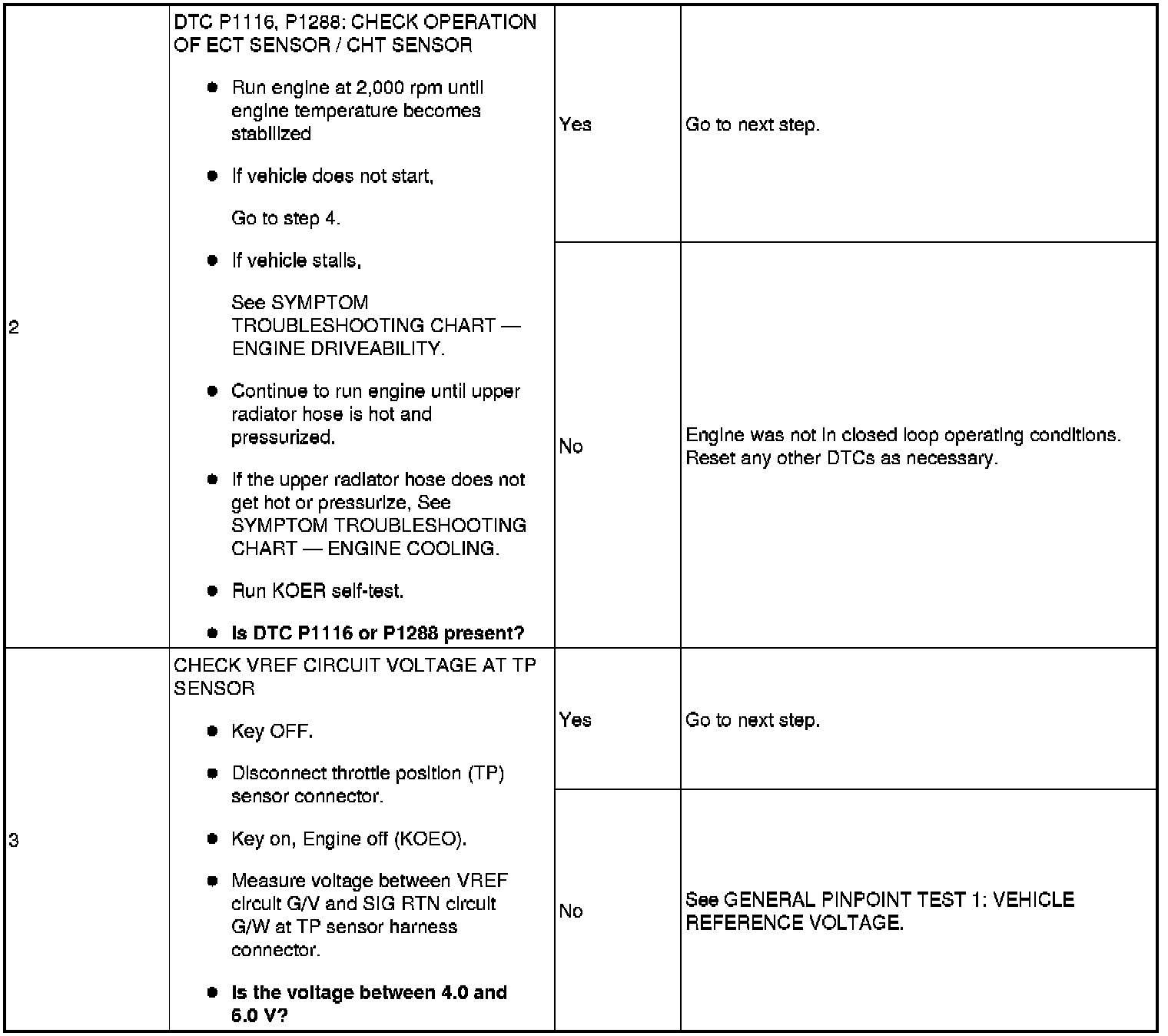

Step 2-Step 3:

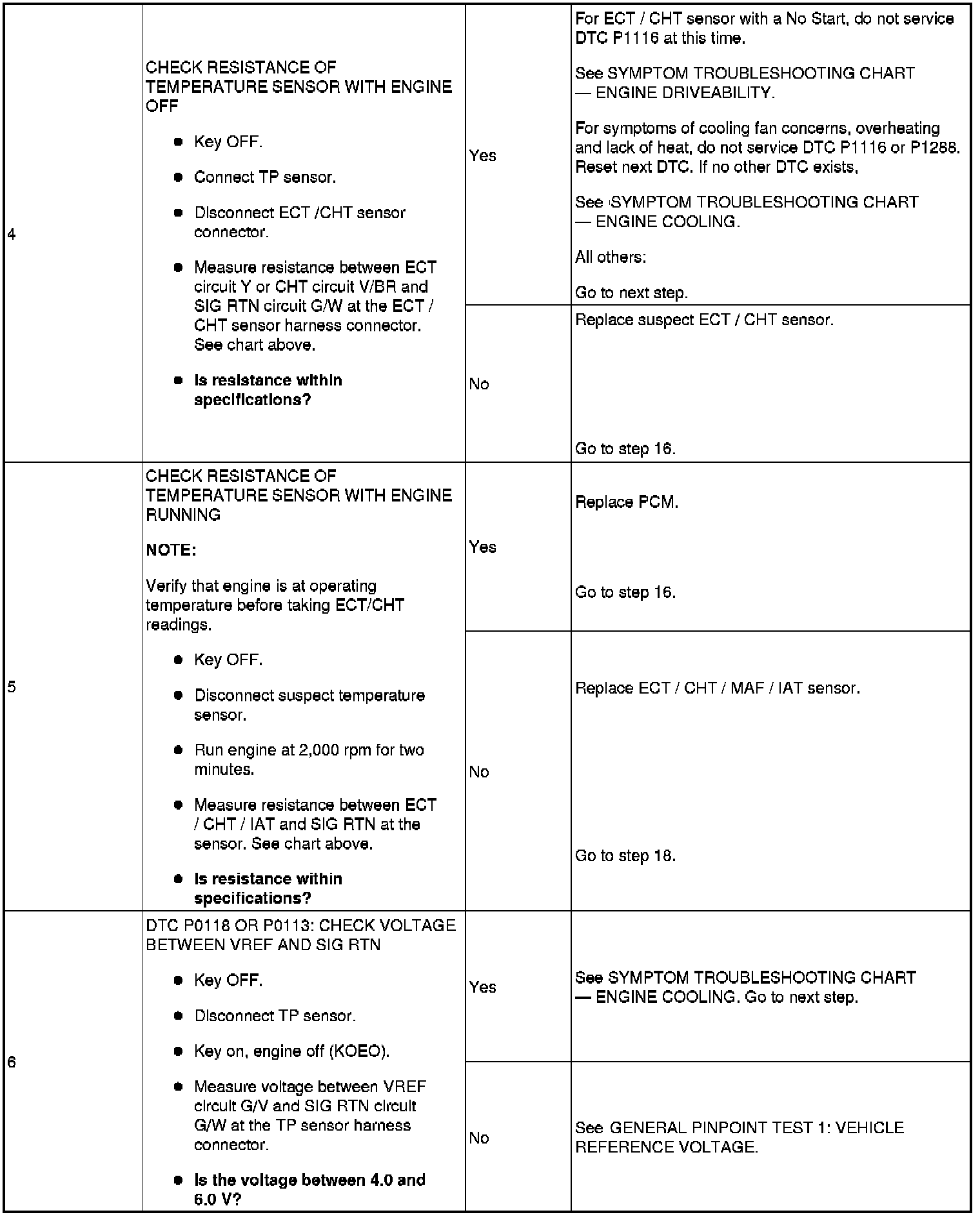

Step 4-Step 6:

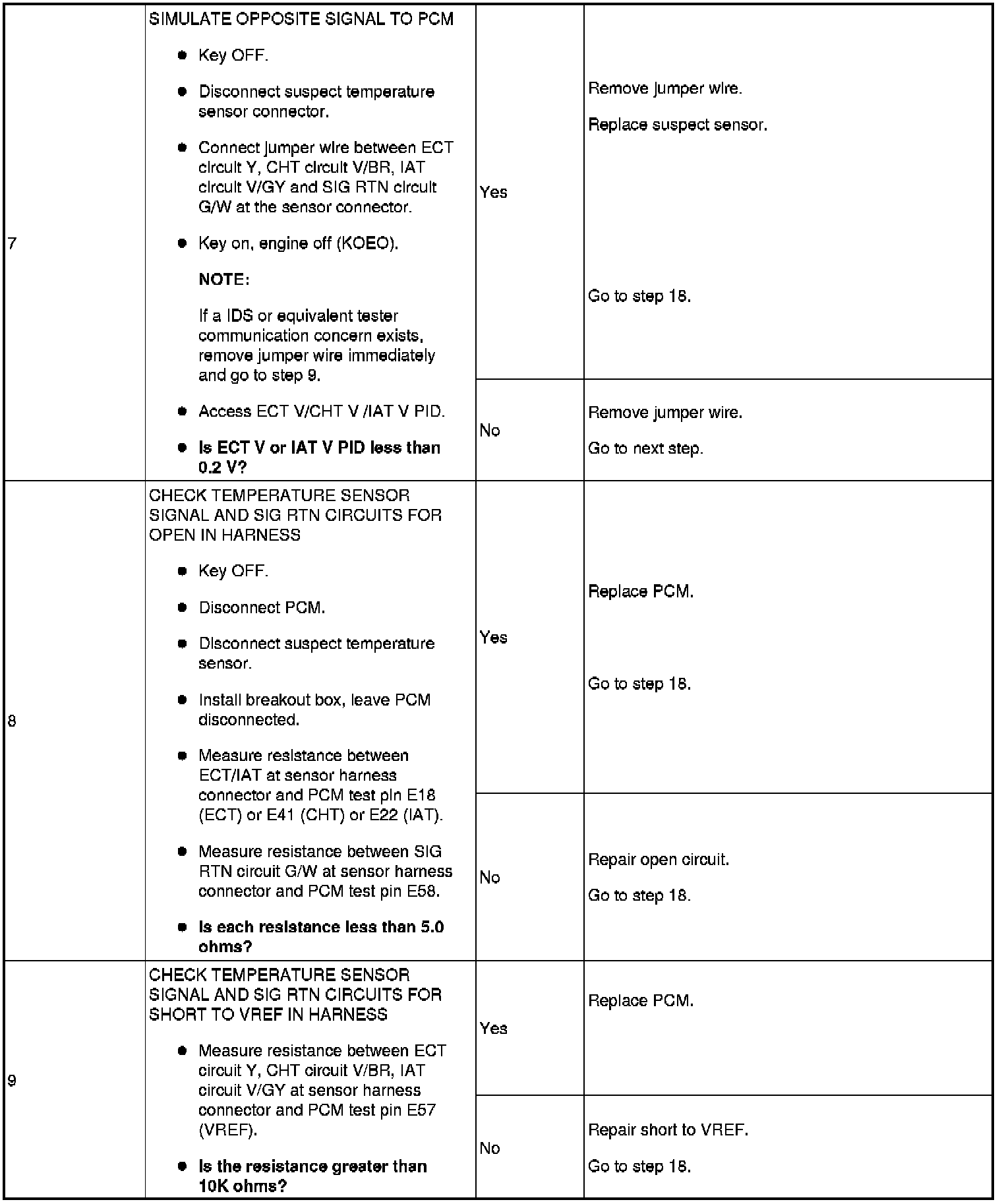

Step 7-Step 9:
