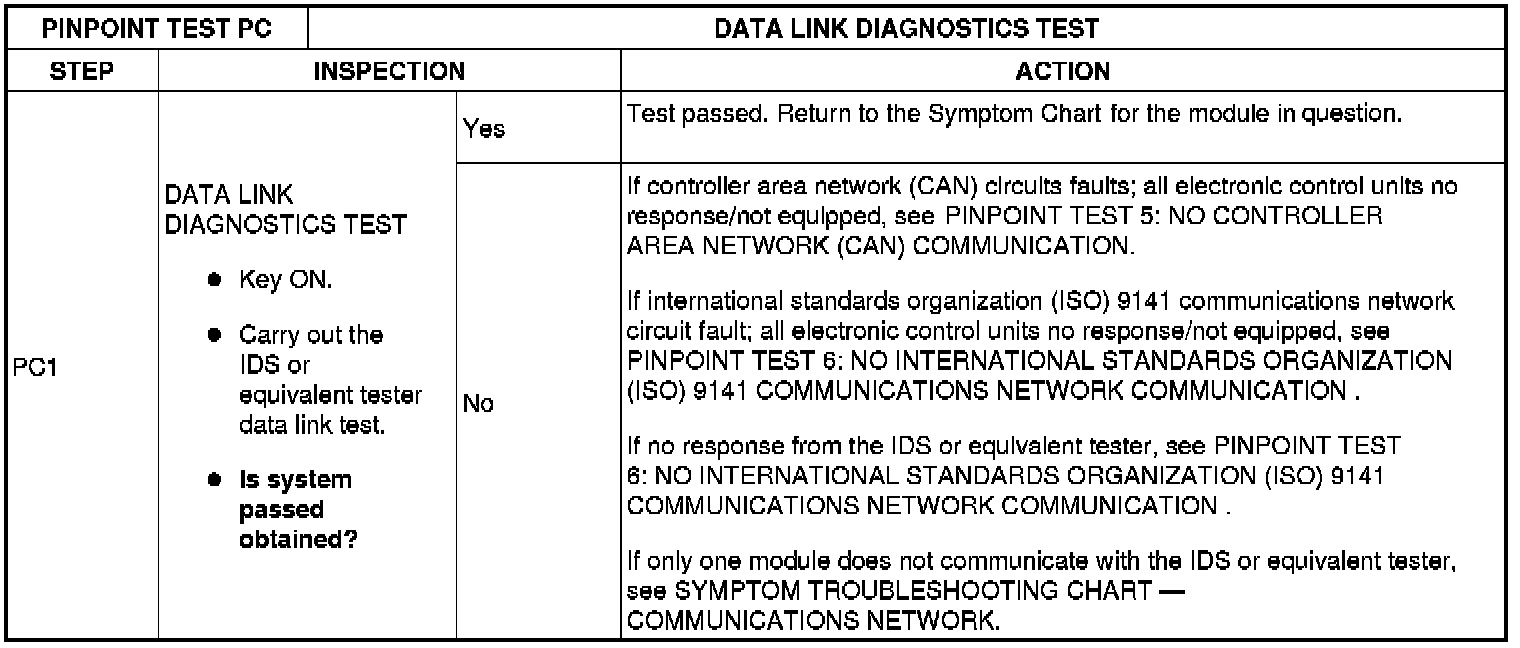

Pinpoint Test PC: Data Link Diagnostics Test




PINPOINT TEST PC: DATA LINK DIAGNOSTICS TEST

Step PC1:
