Knock Sensor: Service and Repair

-

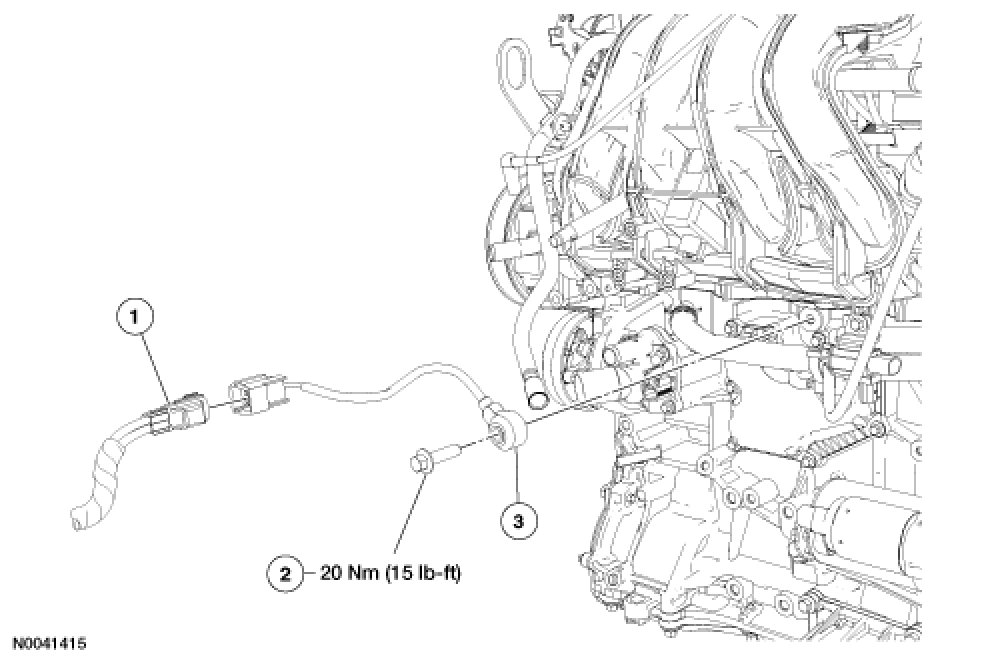

KNOCK SENSOR (KS) REMOVAL / INSTALLATION - 2.3L









1. Disconnect the negative battery cable. Procedures.

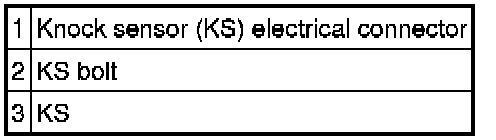

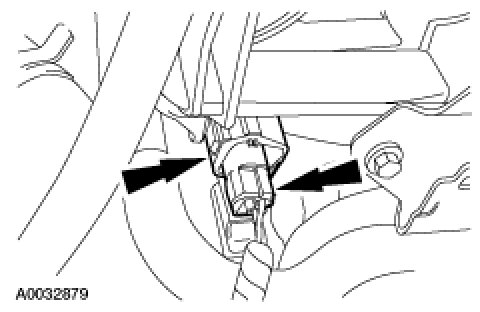

1. Disconnect the knock sensor (KS) electrical connector.






1. Remove the bolt and the KS.

2. To install, reverse the removal procedure.
