Knock Sensor: Testing and Inspection
KNOCK SENSOR
MALFUNCTION

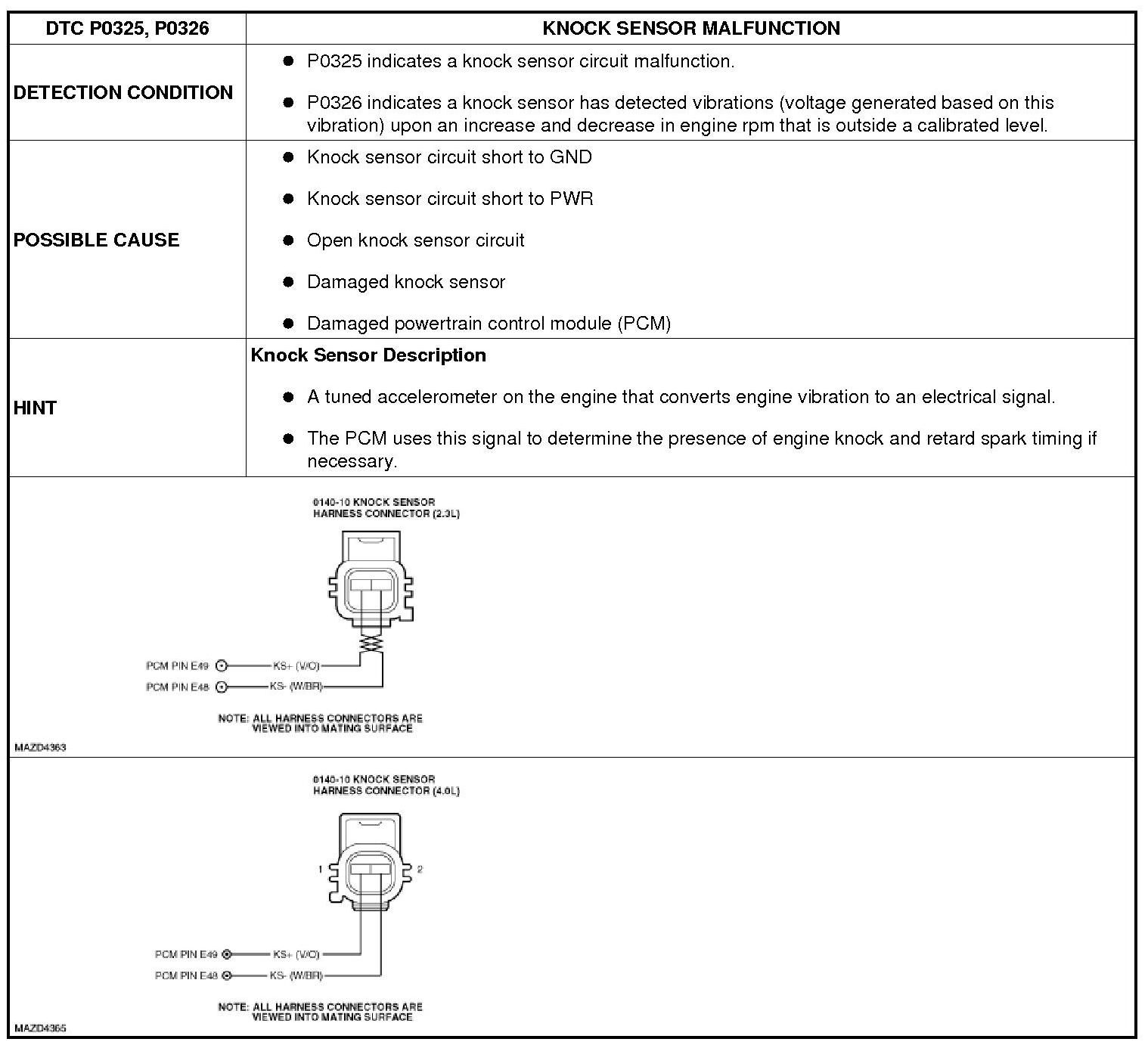

Detection Condition/Possible Cause:

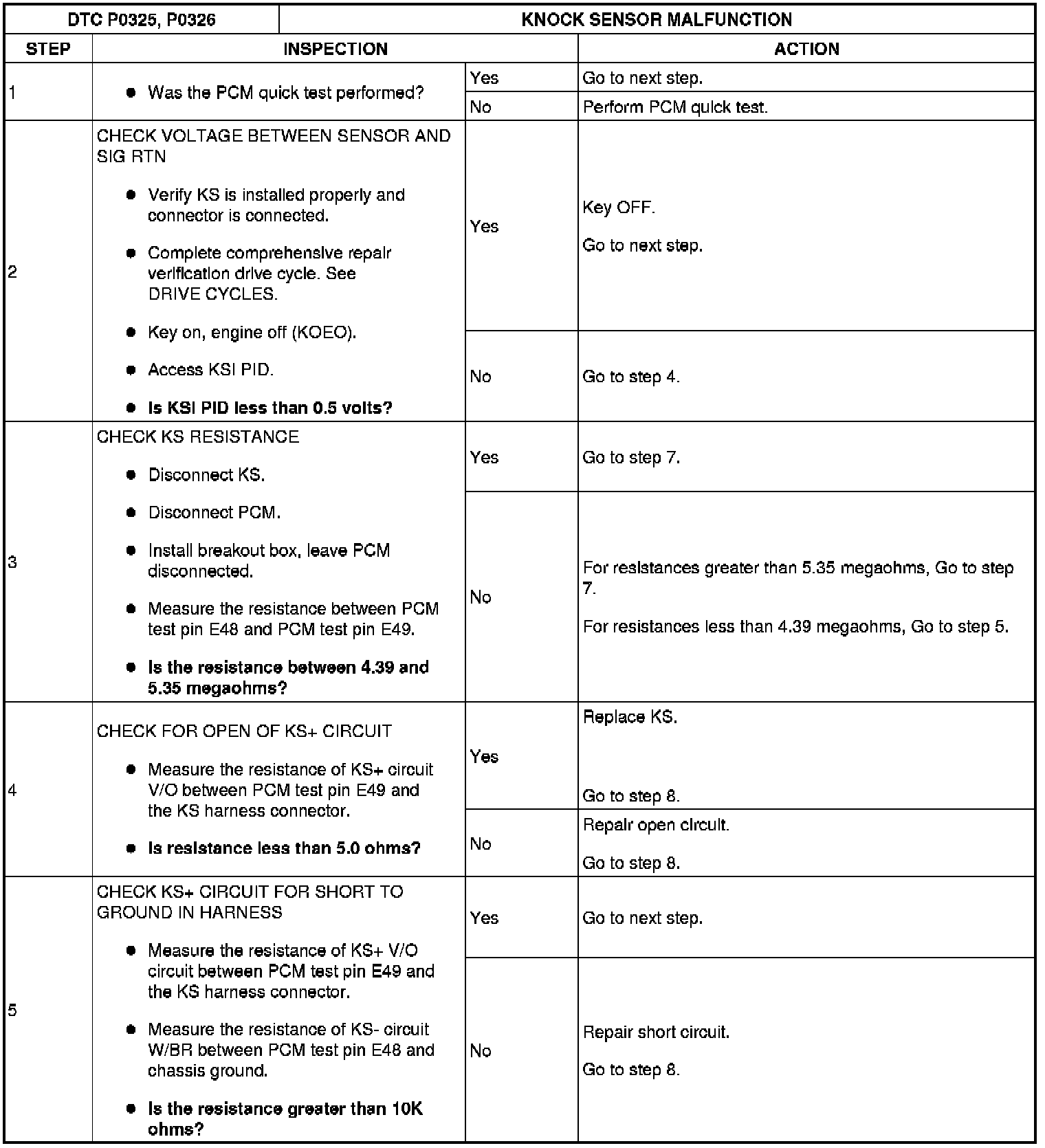

Step 1-Step 5:

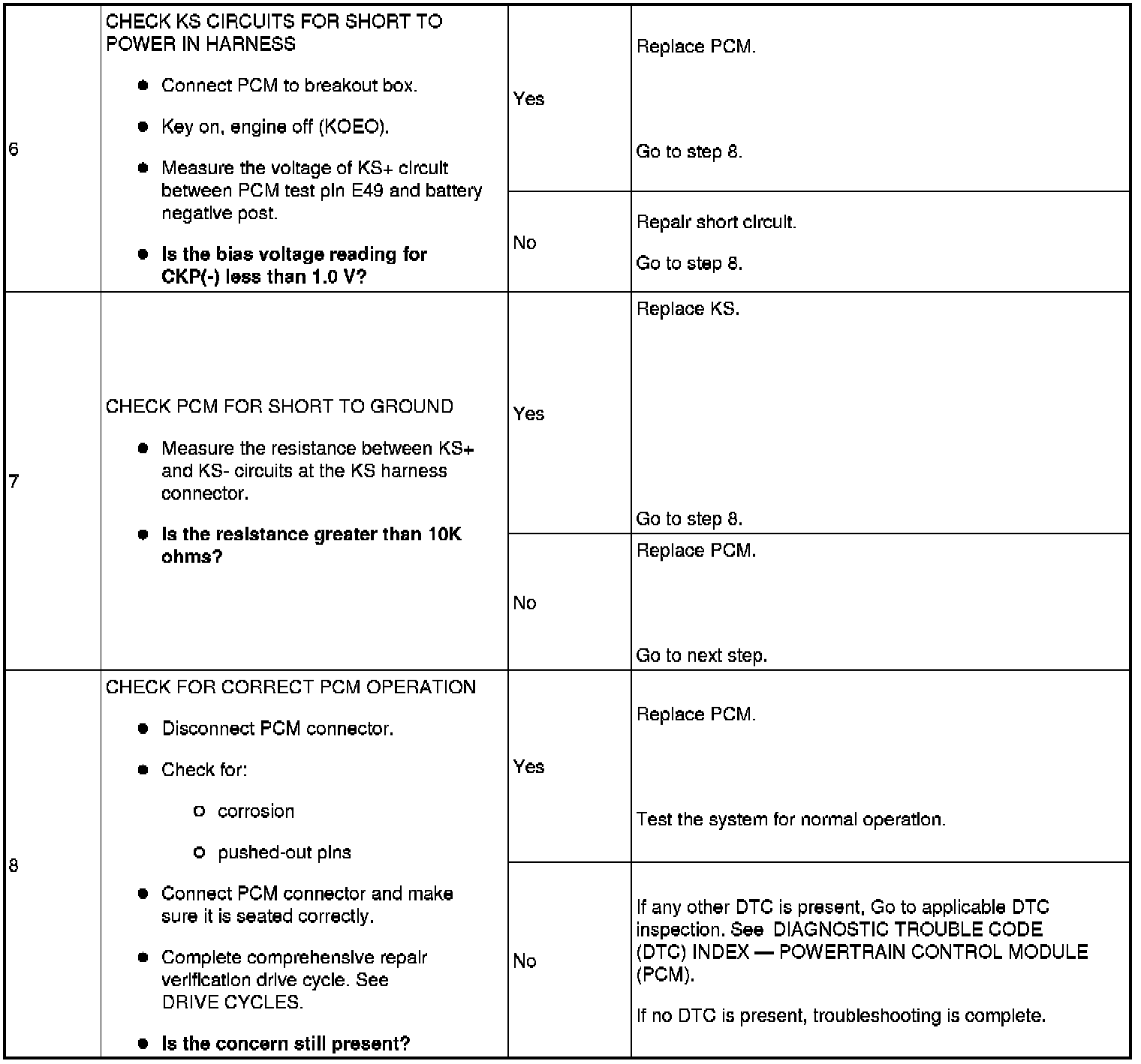

Step 6-Step 8:
