Pinout Values and Diagnostic Parameters

POWERTRAIN CONTROL MODULE (PCM) INSPECTION

PID/DATA MONITOR ITEM TABLE

NOTE:The following PIDs may display on the IDS or equivalent tester, but they are not used for inspection, because the devices are not applied for in this model.

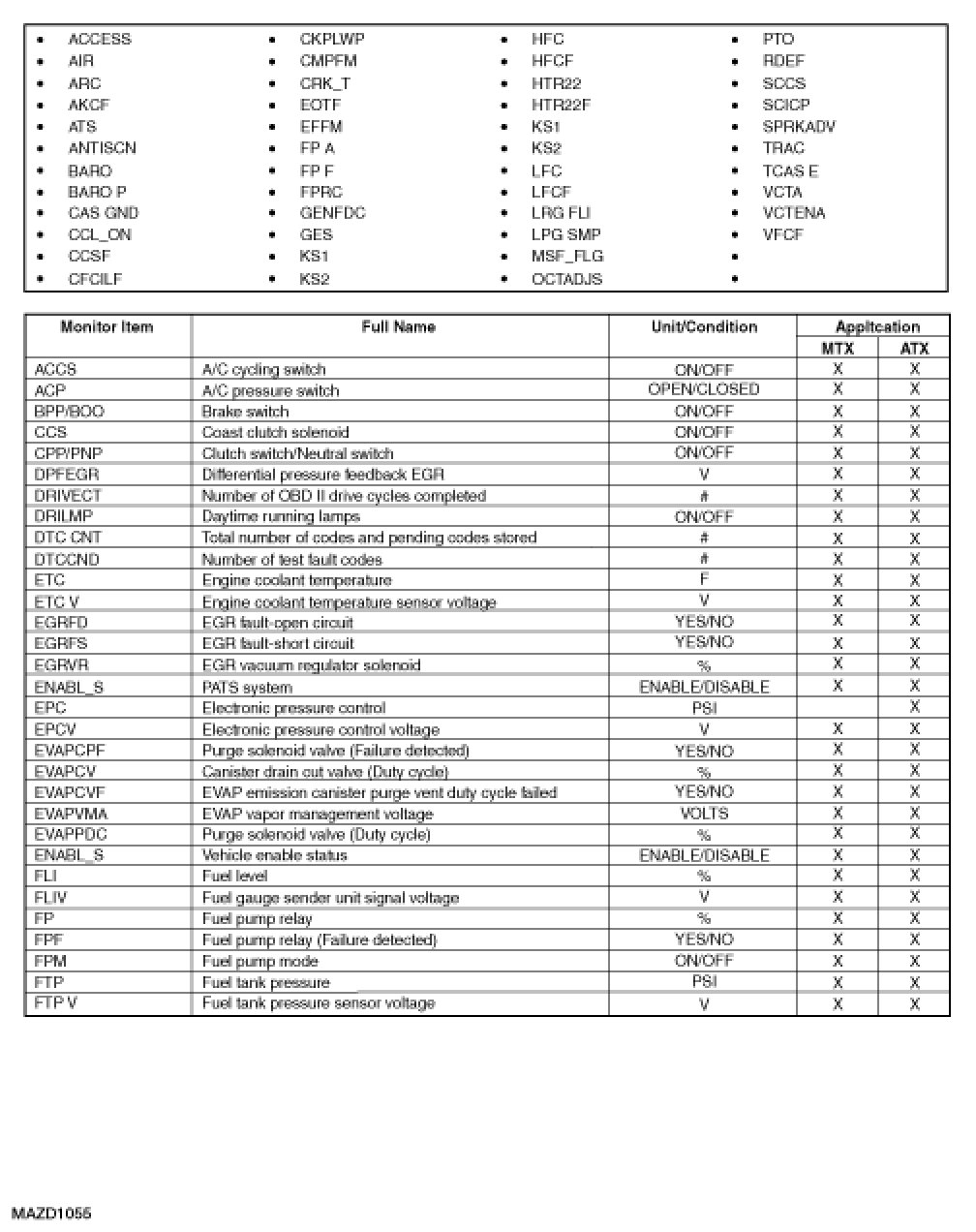

PID/DATA Monitor Item Table (Part 1):

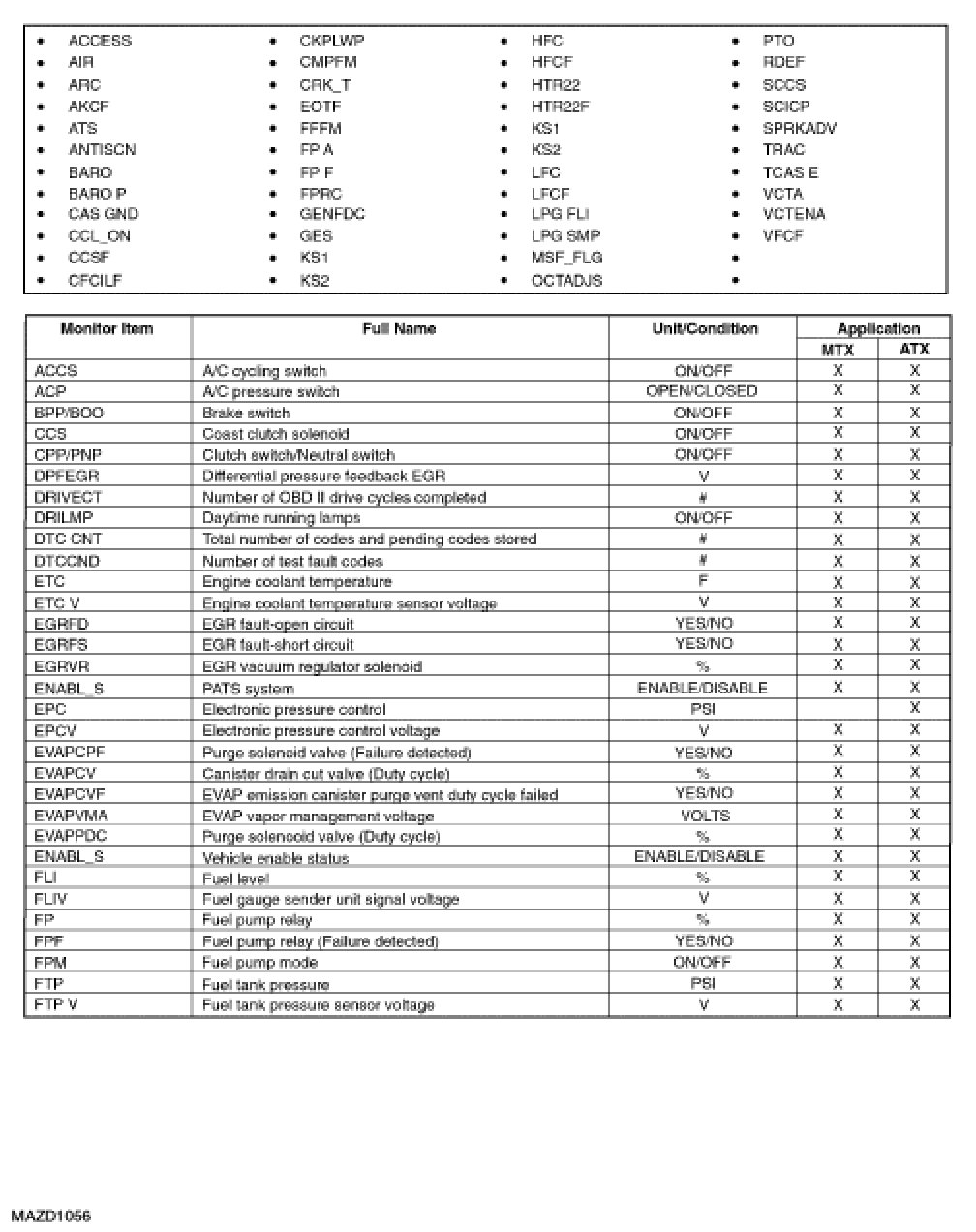

PID/DATA Monitor Item Table (Part 2):

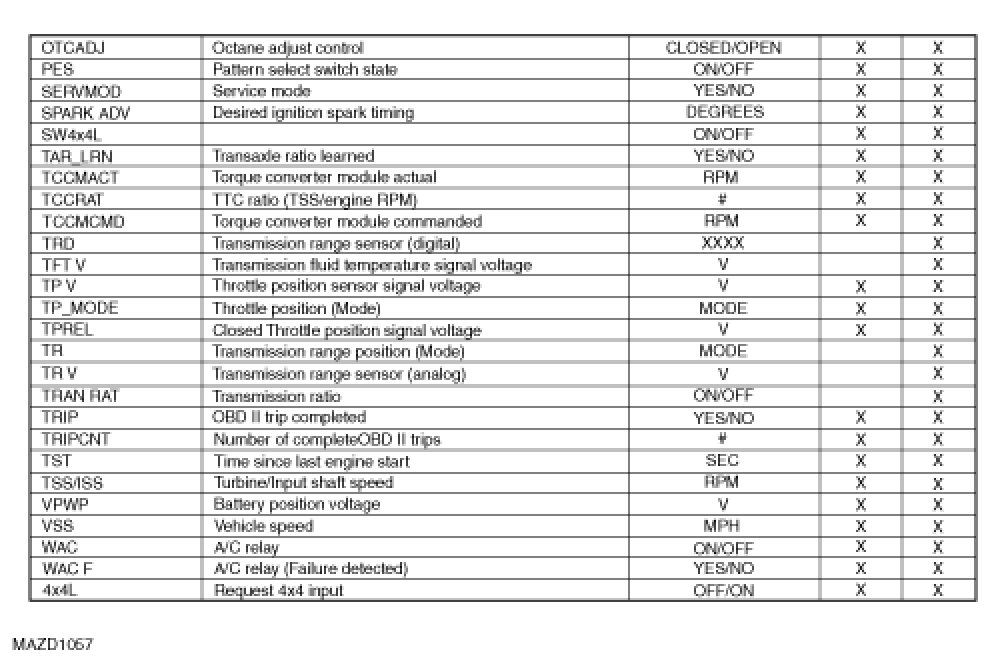

PID/DATA Monitor Item Table (Part 3):
