Powertrain Control Module (PCM) Malfunction




POWERTRAIN CONTROL MODULE (PCM) MALFUNCTION

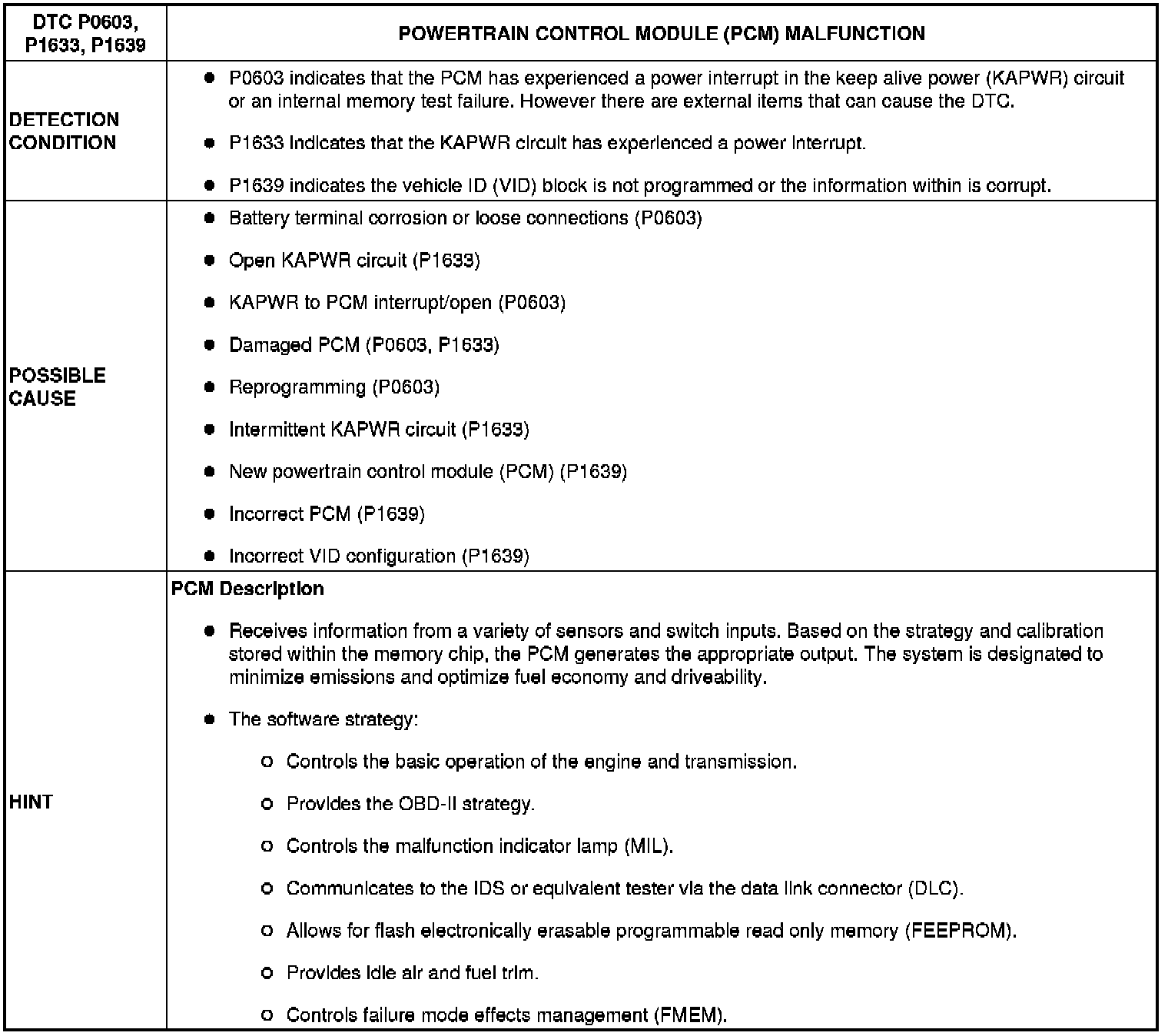

Detection Condition/Possible Cause:

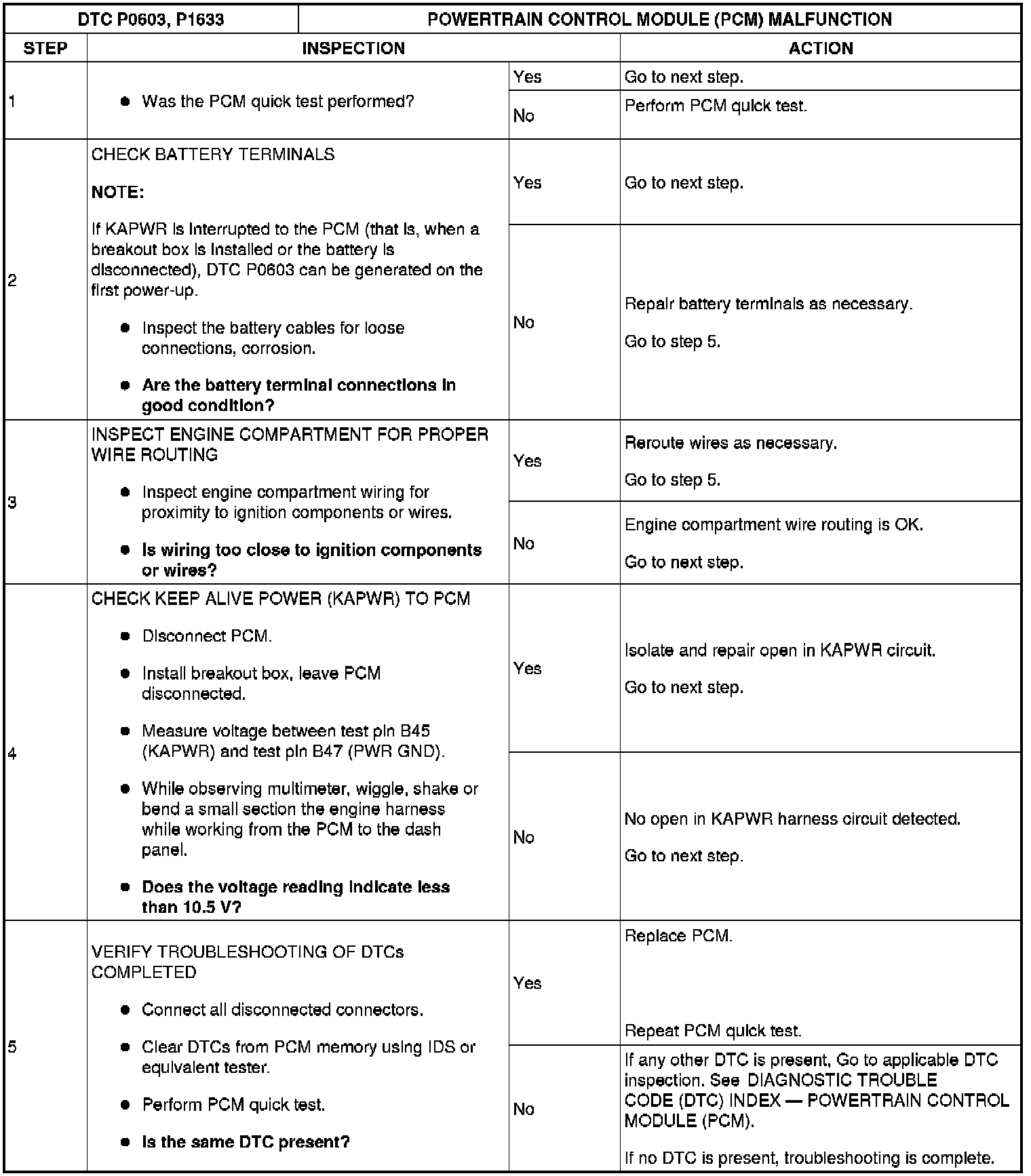

Step 1-Step 5:
